STARBLAZE 32I02 DI-ELECTRIC FLOOR COATING-B
Description
- High dielectric strength & insulation resistance.
- Meets requirements of Class B, IS 15652: 2006 (>45KV BDV)
- High Build-up possibility.
- Self Levelling.
- Excellent chemical resistance.

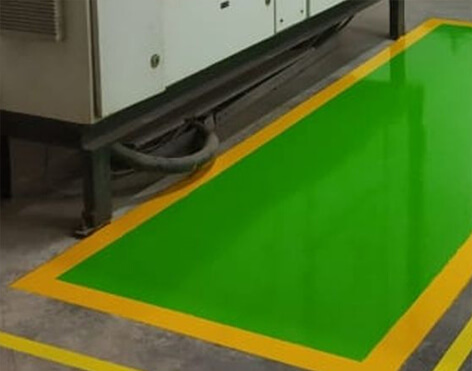

(A) DIELECTRIC FLOORING:
Self Leveling, high gloss, seamless, dielectric flooring. Easy installation
cleaning & repair, clean. Provides clean dust - free atmosphere in panel rooms Long lasting & durable.
- Provides Protection against electrical leakages & the resultant human risk in high voltage sub- stations – switchgear panels, VCB's, battery rooms, marshalling box flooring.
- Enables improvement in both aesthetics & safety Superior to conventional rubber mats.
32I02 DI-ELECTRIC FLOOR COATING-B is a self–leveling, solvent free, high-build, high breakdown voltage protection & insulation coating developed from an unique cycloaliphatic amine curative, loaded with special insulating additives. designed to provide both insulation as well as combat corrosion.
(B) HIGH VOLTAGE INSULATION COATING:
- Ends of electrical insulators.
- Transmission tower /electrical poles metal support structures guards against animal caused
- Bus-bars
- Bushings & Potheads
- FRP Barrier Boards enhances water repellency & arc – track resistance.
- Prevents moisture ingress.
- Adds weather resistance to insulating structures made from FRP, metals, posts, bushings, flash overs. capacitors transformers, cable accessories.
Product Name | STARBLAZE 32I02 DI-ELECTRIC FLOOR COATING-B |
---|---|
Mix Ratio 2 | 1 (Part A : Part B) 3. Specific |
Pot life | 35 – 45 minutes @ 25°C |
Hard Dry | 14 – 16 Hours @ 25 C |
BDV (4 Coats of Starblaze 32I02 CLASS B + 1 Coat of TOP COAT ) | 53 Kv in Air |
Temperature Resistance | Upto 90 C |
Excellent.
