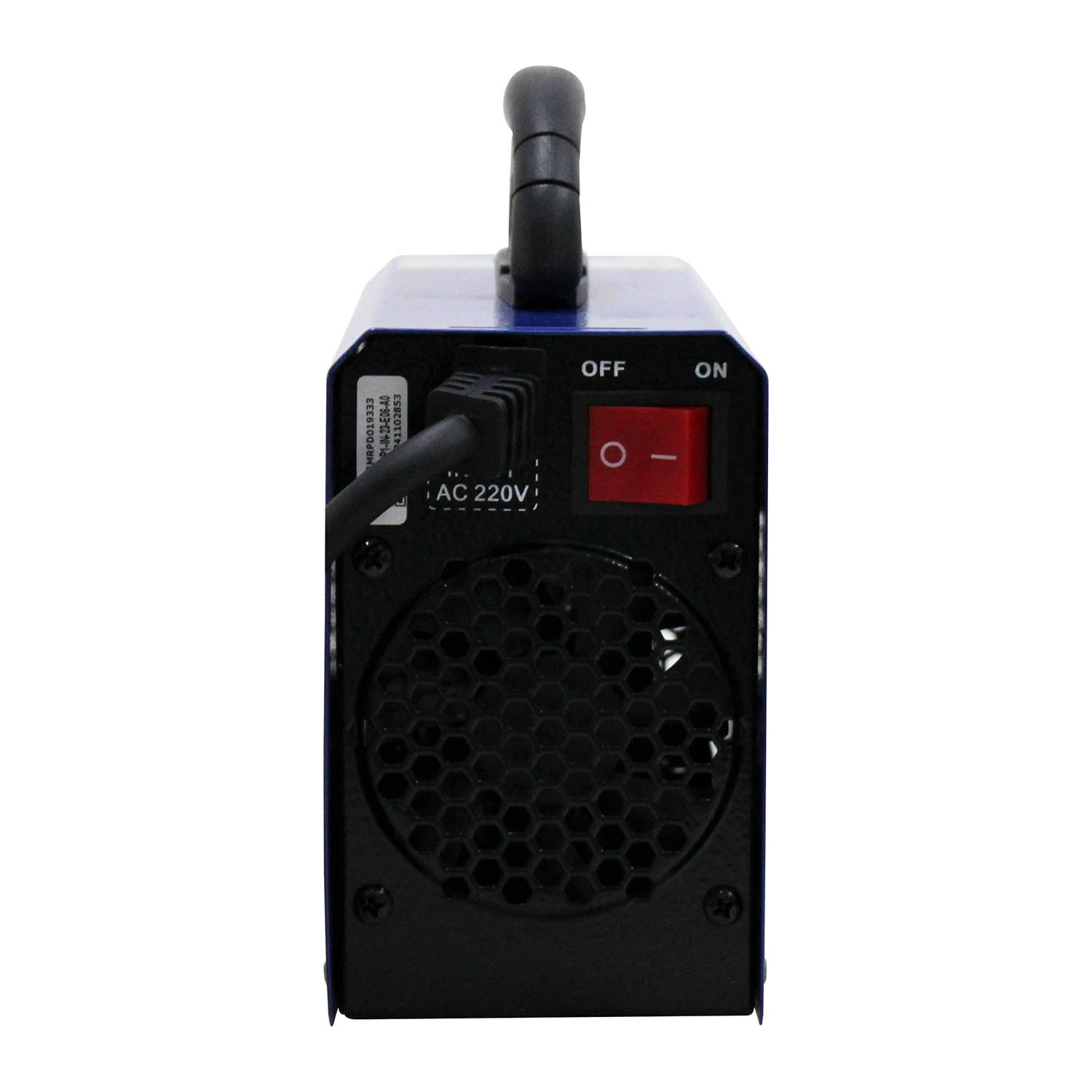

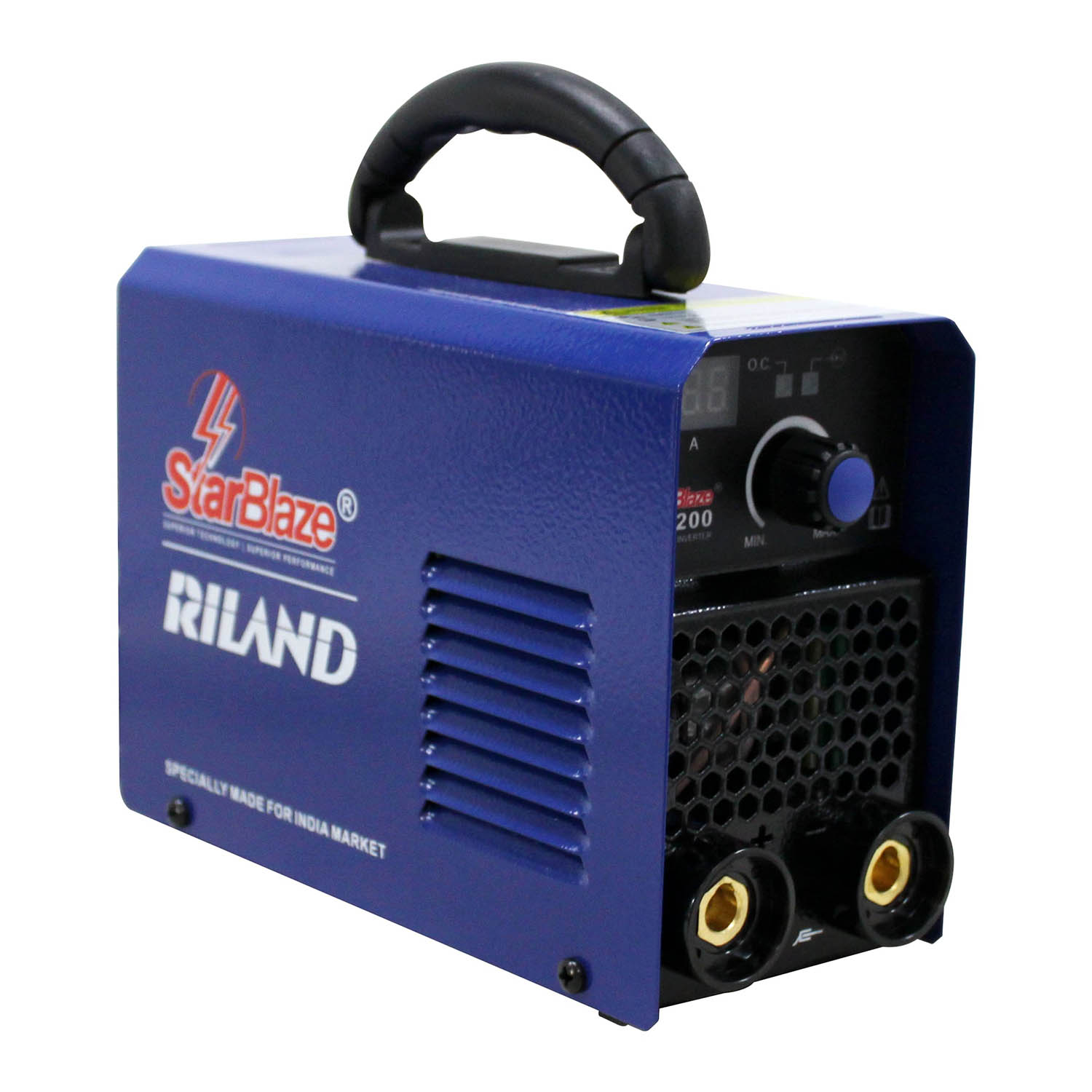

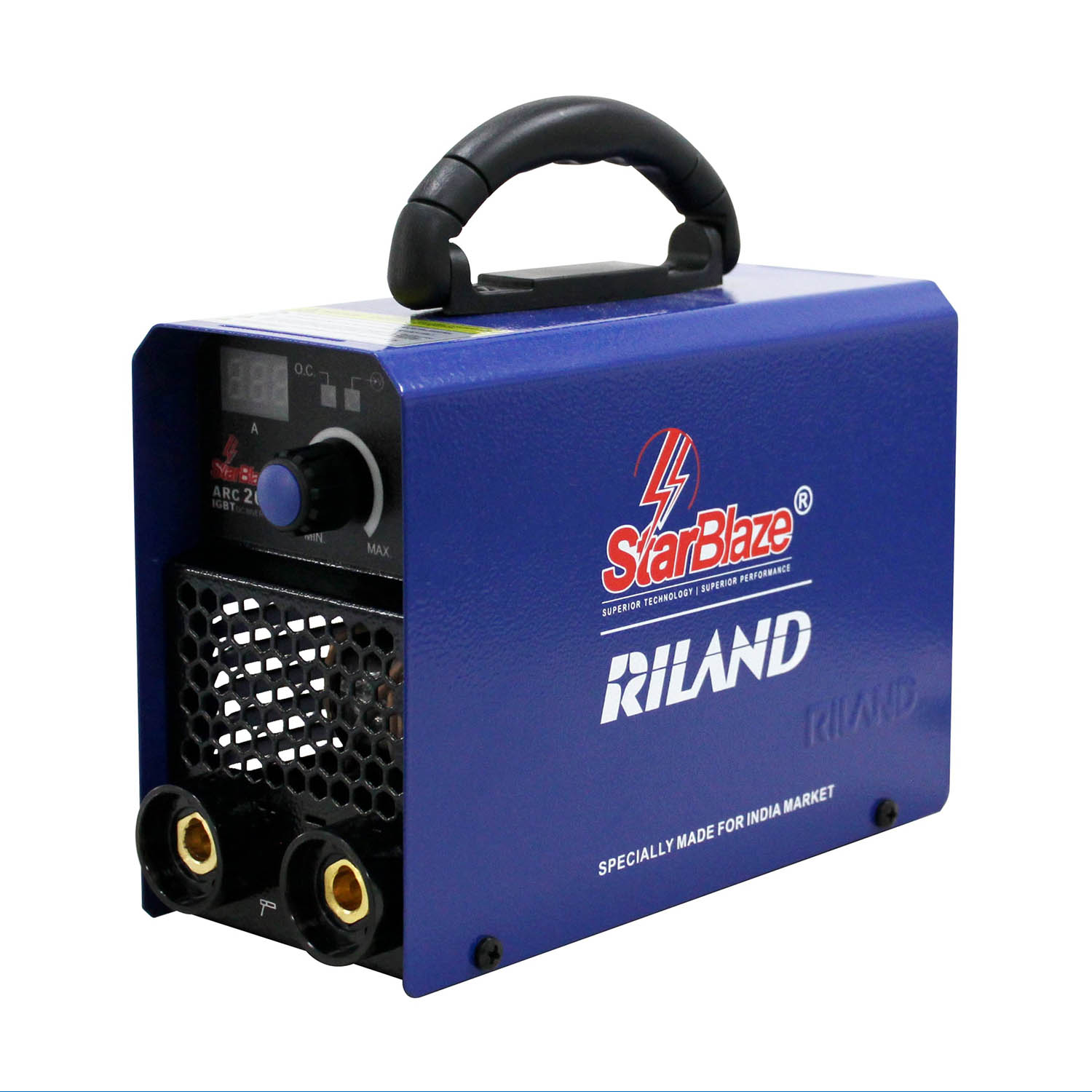

ARC 200
The ARC 200 is a new-generation, compact MMA welding machine designed for efficiency, portability, and affordability. Built with RILAND’s proprietary RICHI chip and cutting-edge IGBT technology, this 2 kg lightweight unit offers reliable performance with continuous welding on 2.5 mm electrodes. Ideal for light fabrication, installation work, and repair jobs, it features a simple control panel, anti-stick functionality, and wide voltage adaptability (220V ±15%).

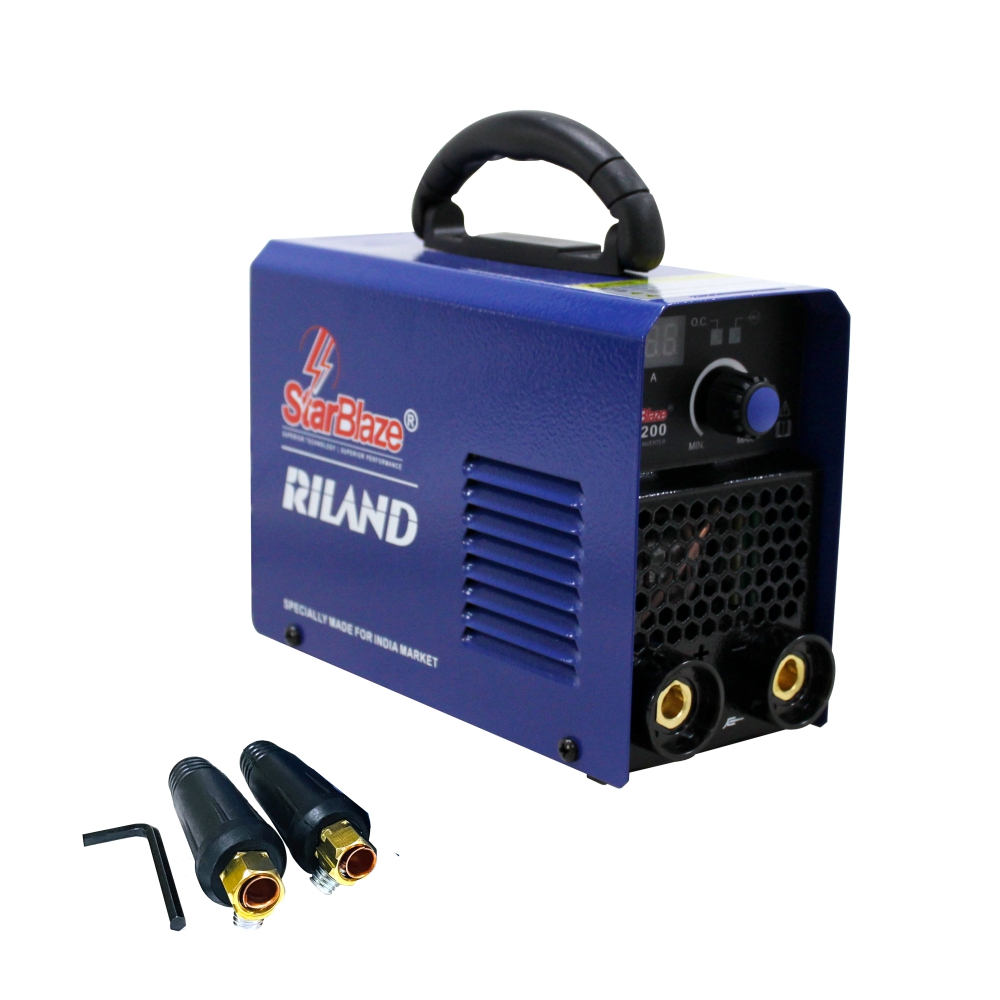

Available in Pack: Single-unit pack with 3 m input cable, 2 OKC connectors, and an allen key
Key Features
- Equipped with RILAND RICHI chip & high-grade IGBT tech
- Input voltage range: 220V ±15%
- Intelligent protection: over-load & over-heat
- Built-in anti-stick function for easy electrode removal
- Continuous welding with 2.5 mm electrodes
- Lightweight (2 kg) and highly portable
- User-friendly single knob interface
Economical, excellent, affordable, and extremely small design
Industries
- Light Steel Fabrication
- Maintenance & Repair
- Installation Services
- Sheet Metal Works
- General Workshops
Processes
MMA (Manual Metal Arc)
Additional Details
- Ensure proper ventilation during use to avoid overheating.
- Not suitable for high-load industrial fabrication.
- Use compatible electrode sizes for optimum performance.
- Store in a cool, dry place.
- Refer TDS for more information.
Product Details
| Parameter | Value |
| Input Voltage | 1P – 220V ±15% |
| Frequency (Hz) | 50/60 |
| Rated Input Current (A) | 26.5 |
| Rated Input Power (kVA) | 5.83 |
| Output Current Range (A) | 30–200 |
| No-load Voltage (V) | 54 |
| Insulation Grade | F |
| Efficiency | >85% |
| Housing Protection Grade | IP21 |
| Weight (kg) | 2 |
| Dimensions (mm) | 204 × 87 × 146 |
