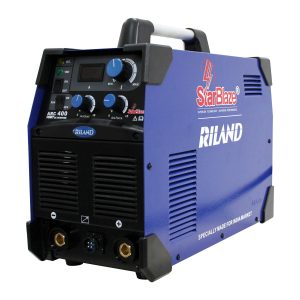

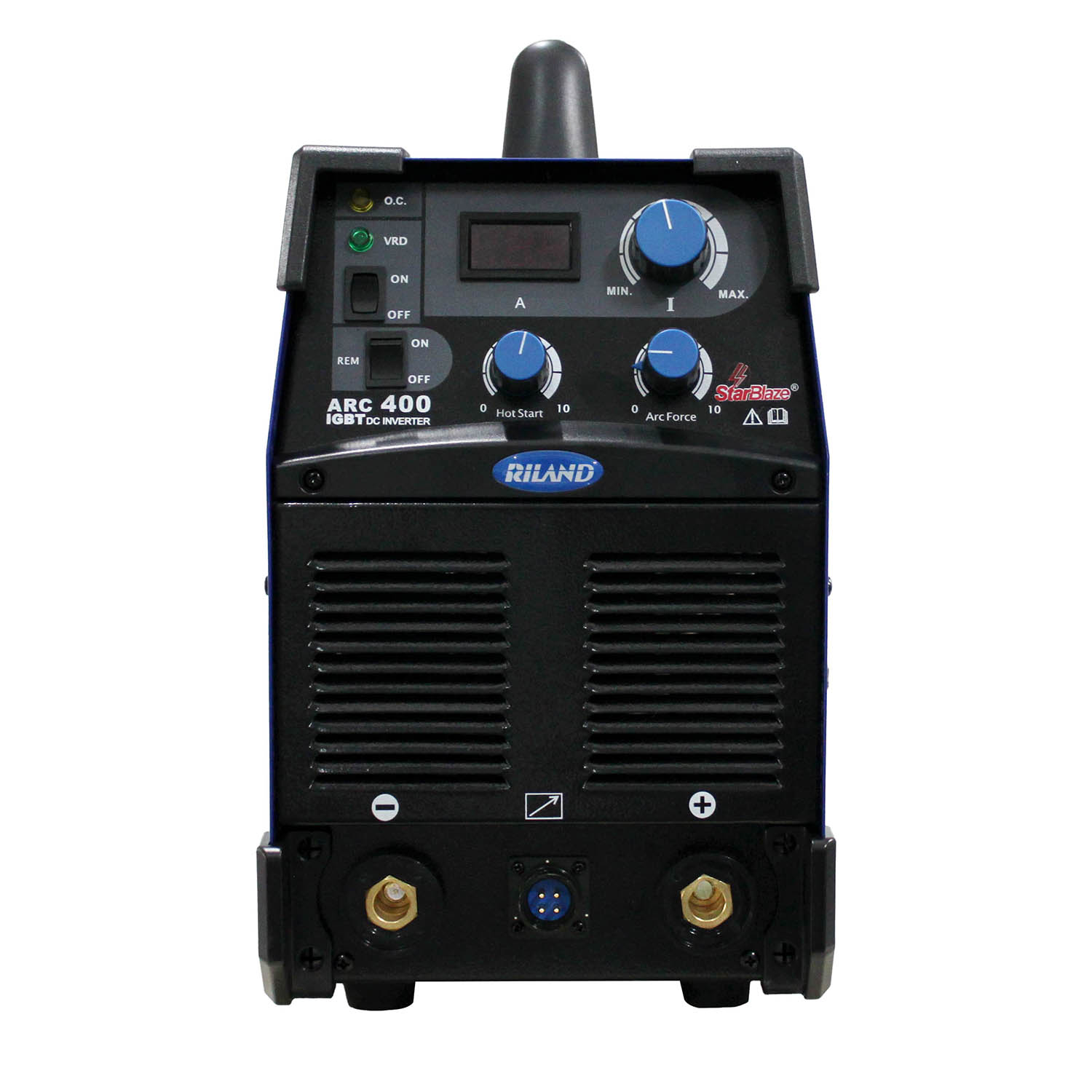

ARC 400
The ARC 400 is a high-efficiency, heavy-duty MMA welding machine engineered for industrial environments like shipyards, fabrication units, and foundries. Powered by advanced IGBT inverter technology and a 3-phase 415V±15% input, this machine delivers a wide output current range of 40–400A, adjustable arc force and hot start, and superior energy savings. A digital display, VRD safety feature, dust-free cooling, and rugged build with corner protectors make it the go-to unit for intensive welding applications.

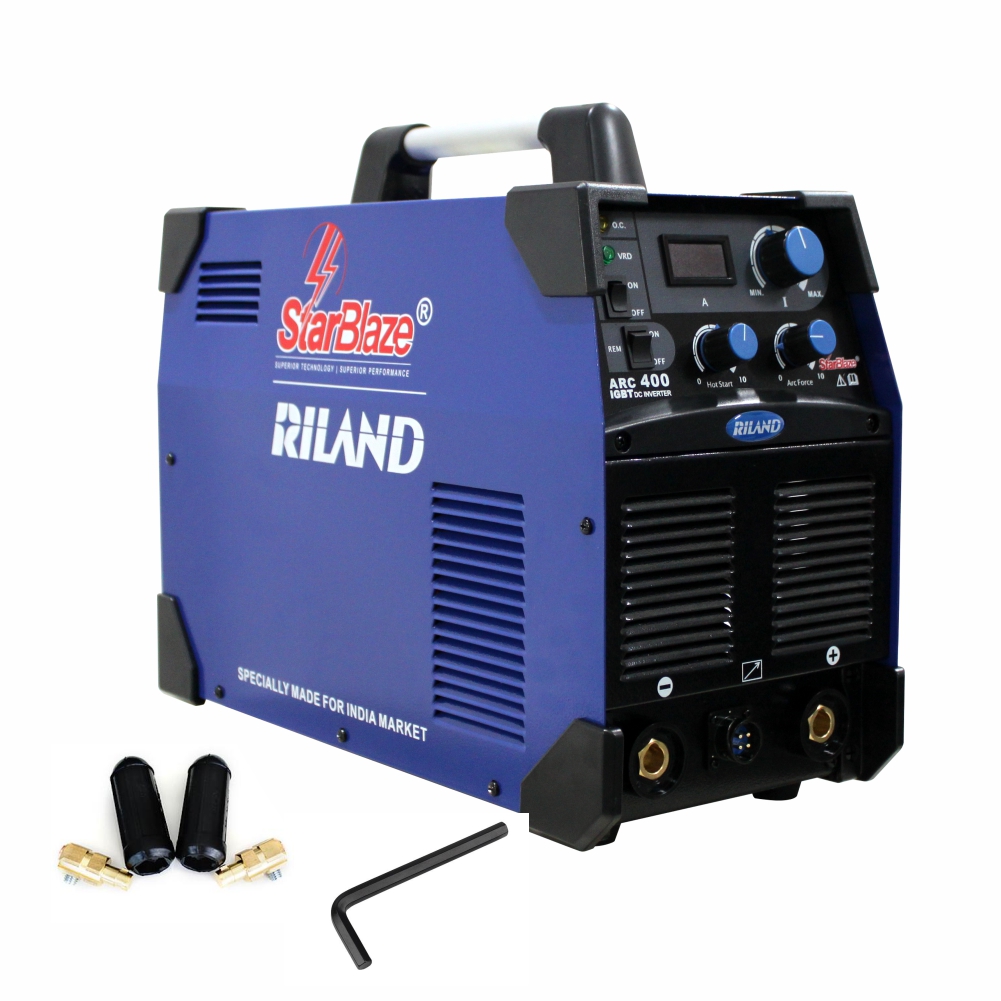

Available in Pack: Single-unit pack with inverter power source, 2 quick plugs, and 1 allen key.
Available in Pack: Single-unit pack with inverter power source, 2 quick plugs, and 1 allen key.
Key Features
- Advanced IGBT-based inverter technology for stable performance
- 3-phase input with wide voltage range (415V ±15%)
- Digital meter for preset and real-time welding current
- Adjustable arc force and hot start for better arc control
- VRD function for enhanced operator safety
- Dust-free cooling system with upgraded duty cycle
- Plastic corner protectors for added durability and aesthetics
- Energy-efficient operation compared to traditional systems
Industries
- Heavy Structural Fabrication
- Pipe Welding
- Shipbuilding & Marine Fabrication
- Foundries
- Steel Erection
- General Industrial Welding
Processes
MMA (Manual Metal Arc)
Additional Details
- Ensure stable 3-phase power connection before operation.
- Adjust arc force and hot start current according to electrode diameter and base material.
- Ideal for sustained use in high-duty cycle environments; periodic maintenance of ventilation ports recommended.
- Store in a cool, dry place.
- Refer TDS for more information.
Product Details
| Parameter | Value |
| Input Voltage | 3P – 415V ±15% |
| Frequency (Hz) | 50/60 |
| Rated Input Current (A) | 25.3 |
| Rated Input Power (kVA) | 18.1 |
| Output Current Range (A) | 40–400 |
| Hot Start Current (A) | 0–135 |
| Arc Force Current (A) | 0–100 |
| Power Factor | >0.93 |
| Efficiency | >85% |
| Housing Protection Grade | IP21 |
| Weight (kg) | 13.0 |
| Dimensions (mm) | 457 × 203 × 330 |
