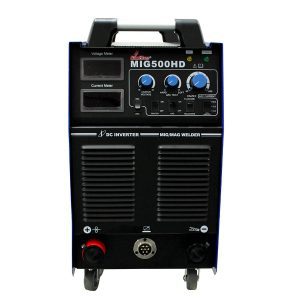

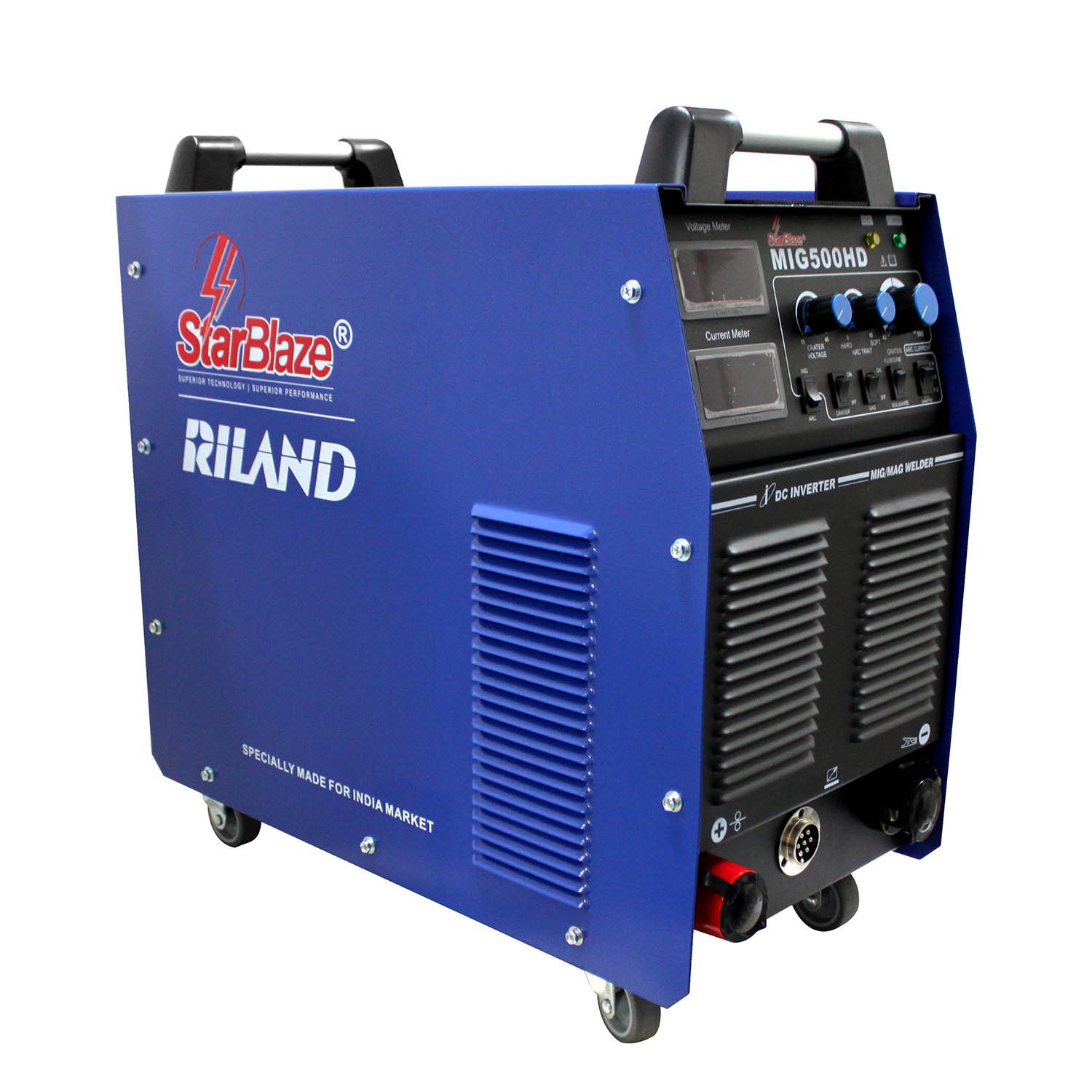

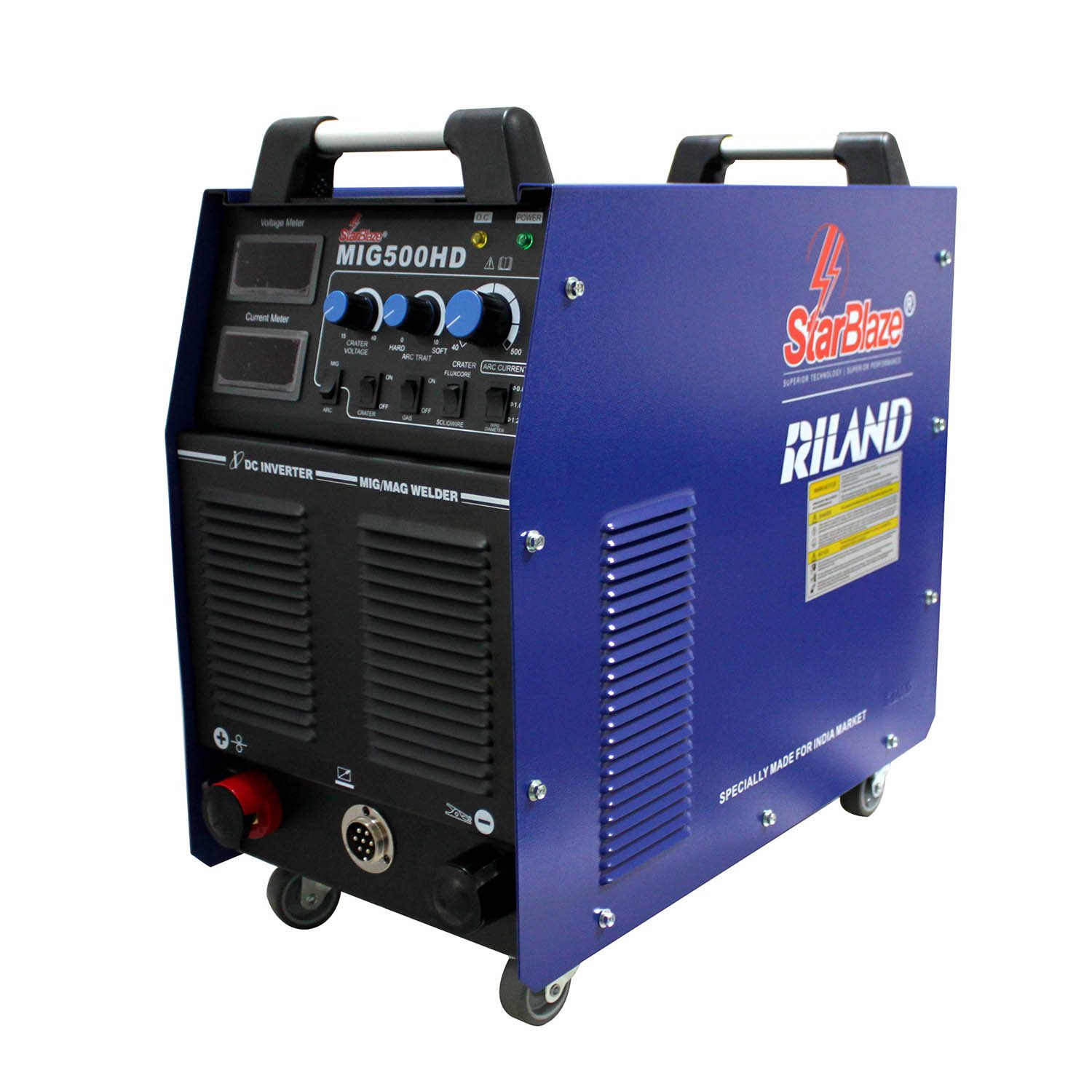

MIG 500HD
Product Description
The MIG 500HD is a robust, high-performance MIG/MMA welding machine designed for heavy-duty industrial applications. It offers up to 500A output and advanced arc control with adjustable inductance, crater current, and crater voltage features. Engineered with IGBT inverter technology, this machine ensures stable, efficient welding across a range of wire diameters (solid and flux core) and material types. Its external wire feeder, intelligent parameter presets, and dual digital meters make it ideal for long, high-intensity welding operations in fabrication and manufacturing settings.

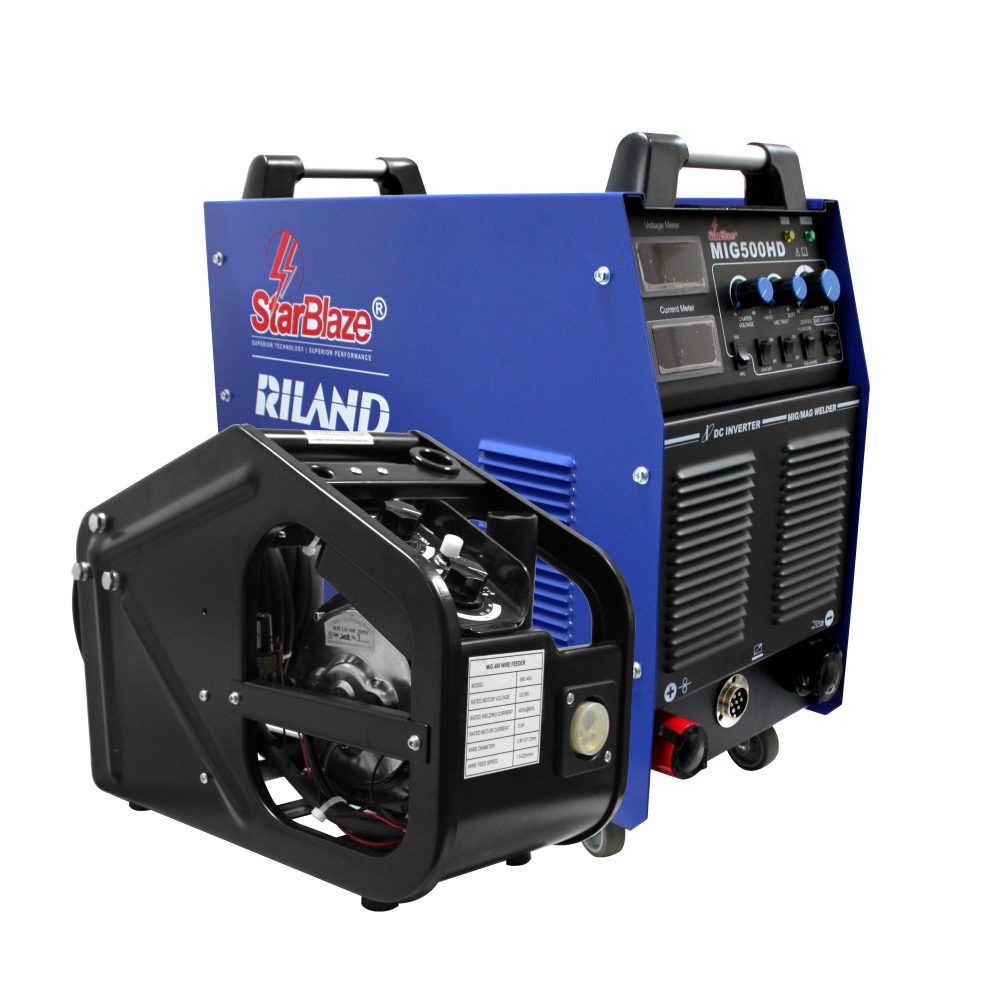

Available in Pack: Single-unit pack with inverter power source, 3 m welding torch and cable assembly, 3 m earthing cable and clamp, and wire feeder with accessories.
- MIG + MMA dual process with 500A maximum output
- Wire type & diameter selector for optimal auto-setup
- Adjustable inductance, crater voltage & crater current

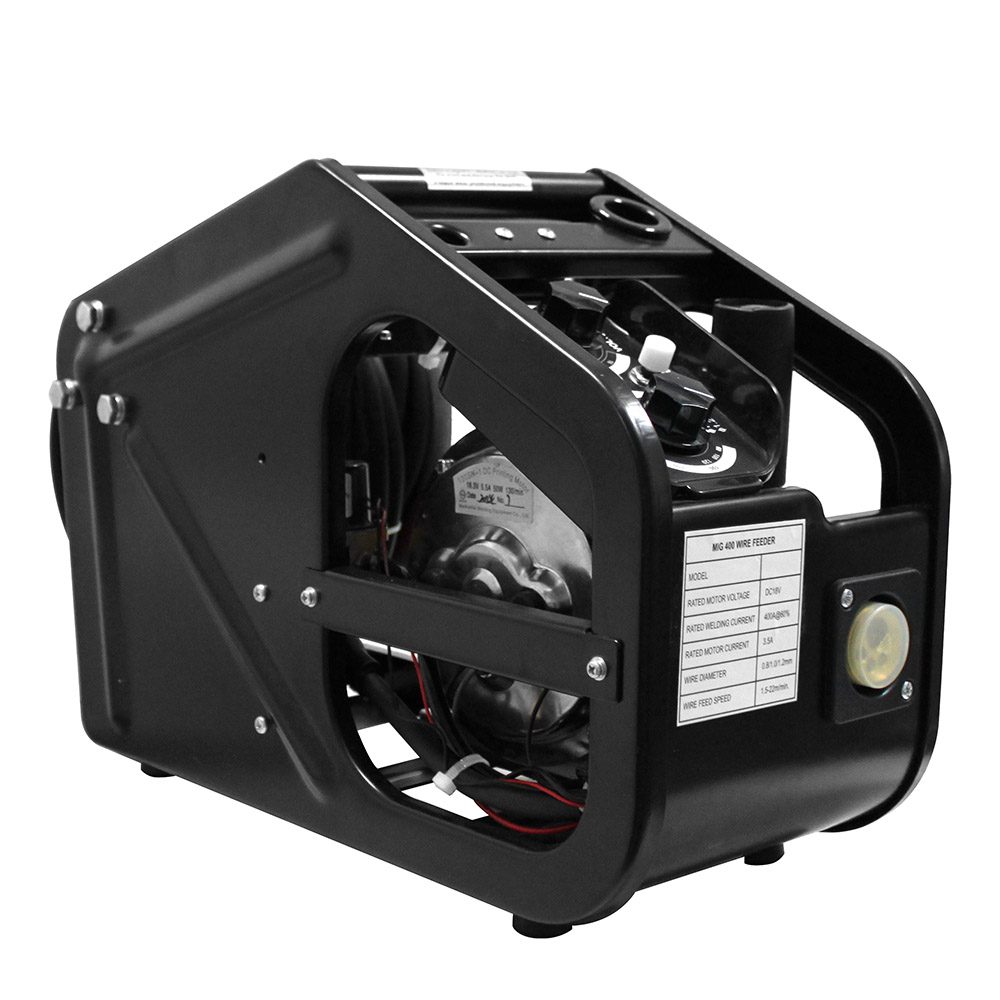

- External wire feeder with precise voltage/current control
- IGBT-based inverter for arc stability & efficiency

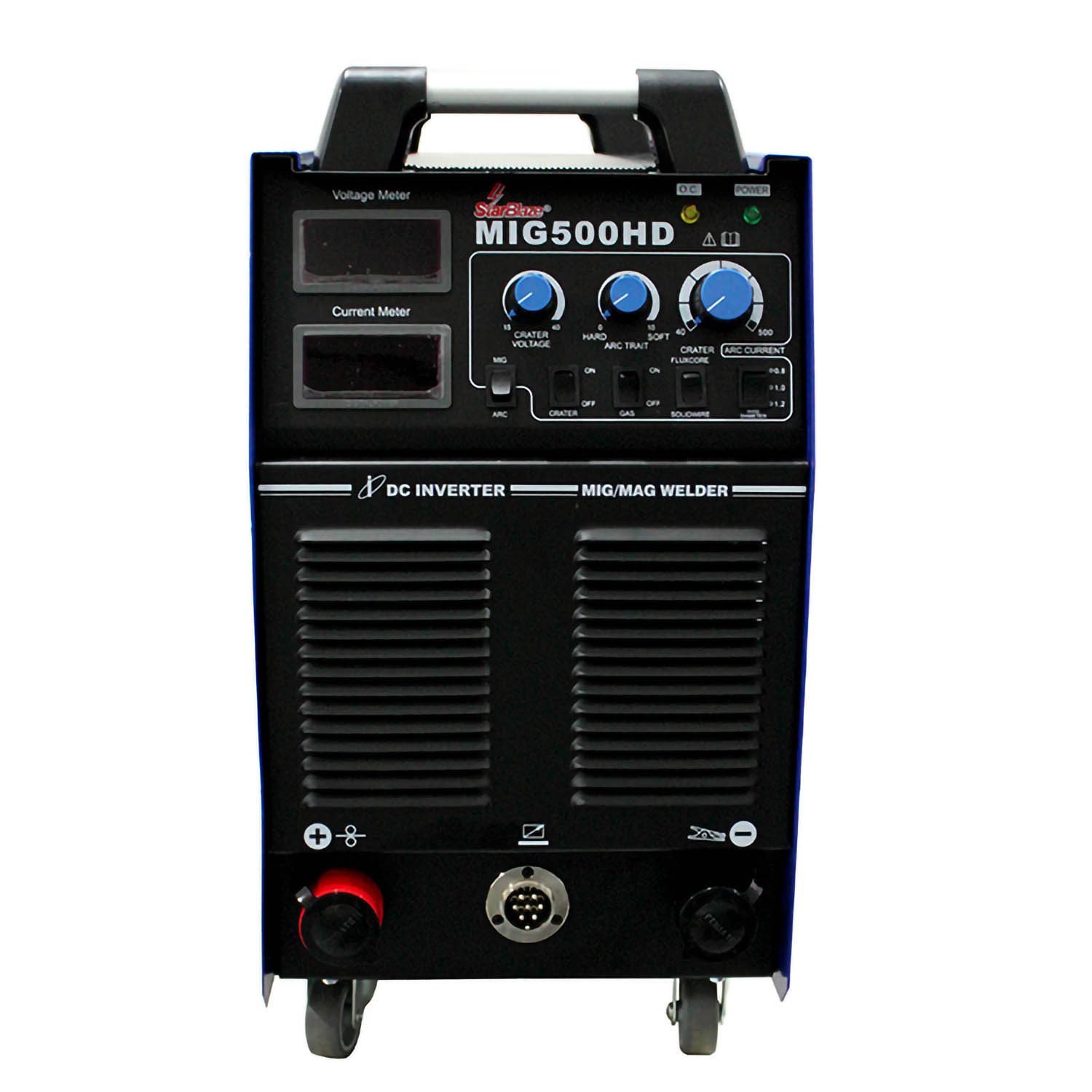

- Digital voltage and current preview with hold function
- 2T/4T operation for intermittent or continuous welds
- Dust-free cooling system for high duty cycle welding
- Overload & thermal protection with reinforced corner guards
- Suitable for solid and flux-core wires (0.8 / 1.0 / 1.2 mm)
- Heavy Equipment & Machinery Manufacturing
- Steel Fabrication Units
- Infrastructure & Structural Welding
- Power Plants & Process Industries
- Industrial Maintenance & Repair
- MIG (Flux-Core / Gasless)
- MMA (Manual Metal Arc)
- High arc voltage and crater settings make it ideal for multi-layer and root pass welding.
- Designed for use in continuous and high-load duty cycles; maintain adequate ventilation.
- Best paired with matching wire feeders and industrial-grade wire rolls.
- Store in a cool, dry place.
- Refer TDS for more information.
Product Details
| Parameter | MIG 500HD |
| Input Voltage | 3P – 415V ±15% |
| Frequency (Hz) | 50/60 |
| Rated Input Current (A) | 24.4 |
| Rated Input Power (kVA) | 16 |
| Output Current & Voltage (MIG) | 60A/17V ~ 500A/39V |
| Output Current & Voltage (MMA) | 60A/22.4V ~ 500A/40V |
| No-load Voltage (V) | 76 |
| No-load Power Loss (W) | 190 |
| Wire Speed Range (m/min) | 1.5 – 22 |
| Suitable Wire Diameter (mm) | 0.8 / 1.0 / 1.2 |
| Power Factor | 0.93 |
| Efficiency | 85% |
| Insulation Grade | H |
| Housing Protection Grade | IP21 |
| Weight (kg) | 36 |
| Dimensions (mm) | 550 × 280 × 545 |
