StarBlaze 6018
AWS A5.1: E 6018 | DIN EN ISO 2560-A: E 38 3 B 32 H5
Crack Resistant, Low Spatter, Superior Reliability
A basic heavy-coated iron powder, hydrogen controlled MMA electrode with superior reliable weldability, smooth beads, excellent mechanical properties in class, and less than 5.0 ml diffusible hydrogen level per 100 grams of weld metal. Delivers a radiographic quality weld with applications in pipe welding.
- Available Packs
- Dimensions: 2.50 mm x 350 mm, 3.15 mm x 450 mm, 4.00 mm x 450 mm

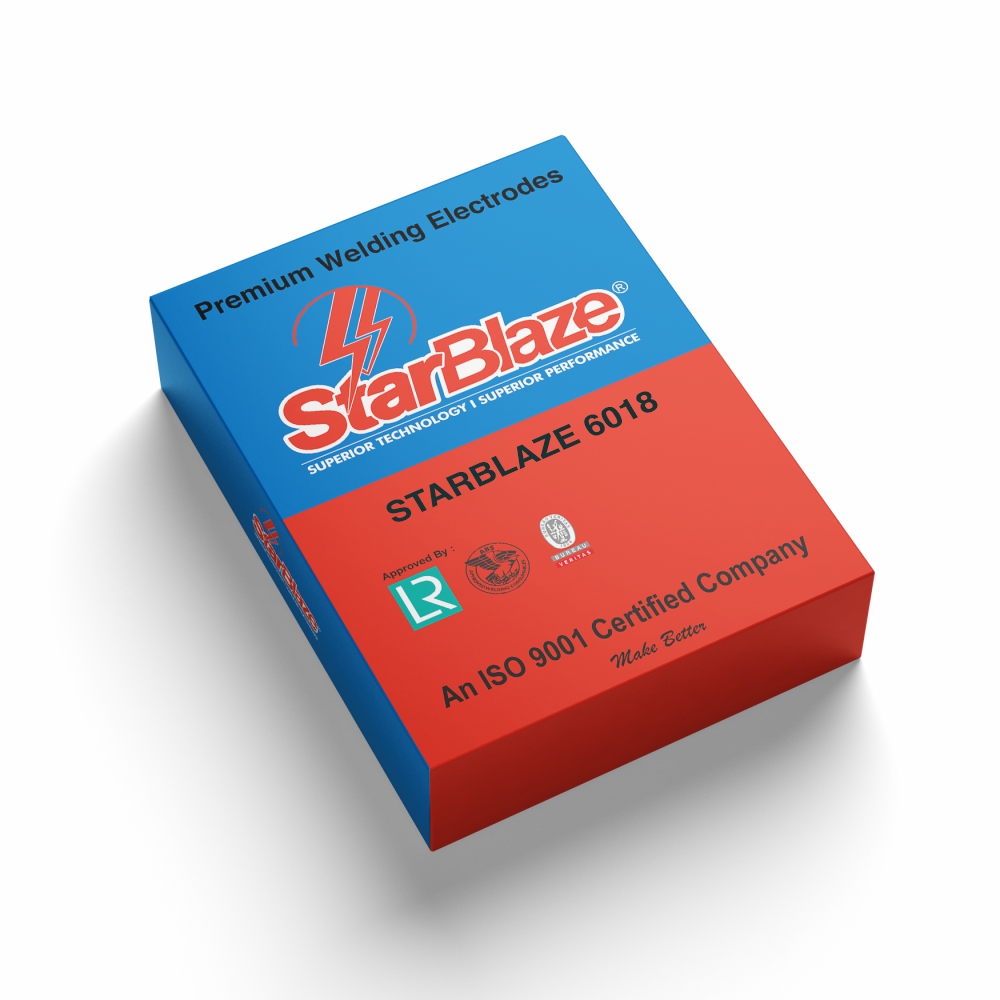

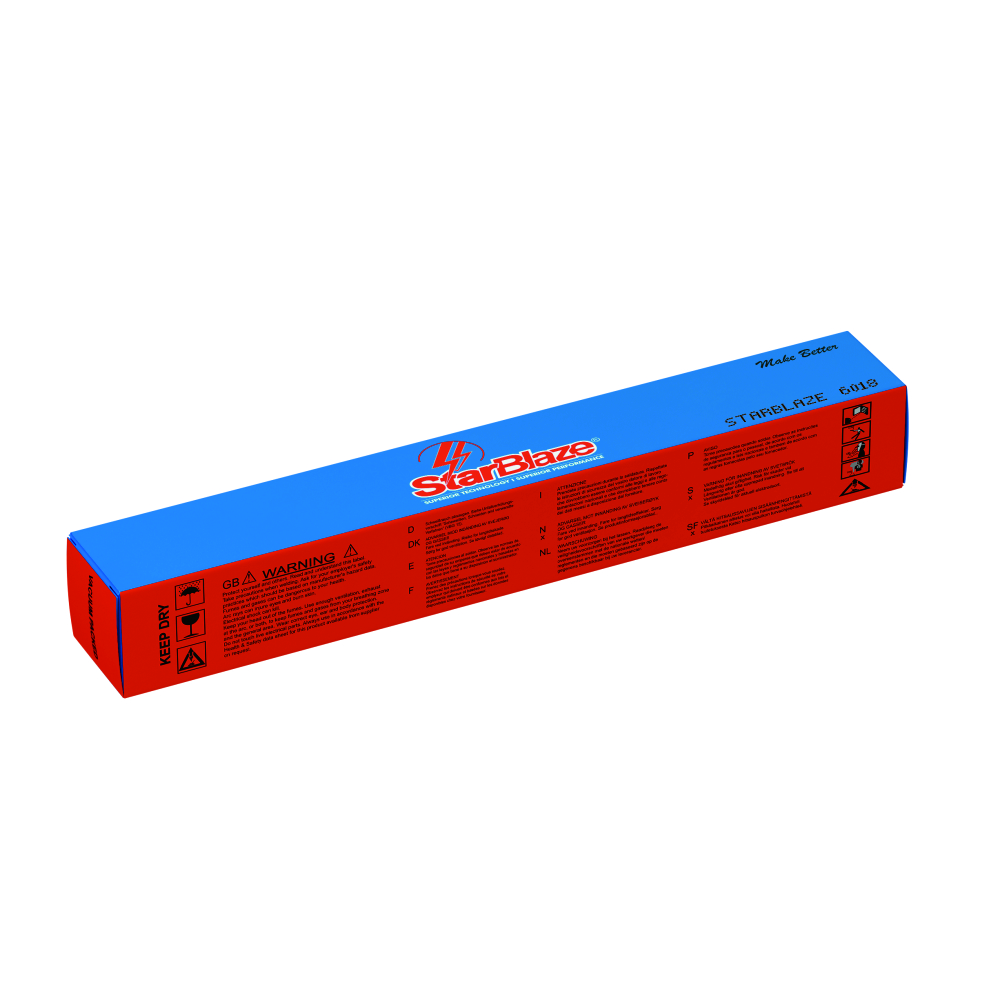

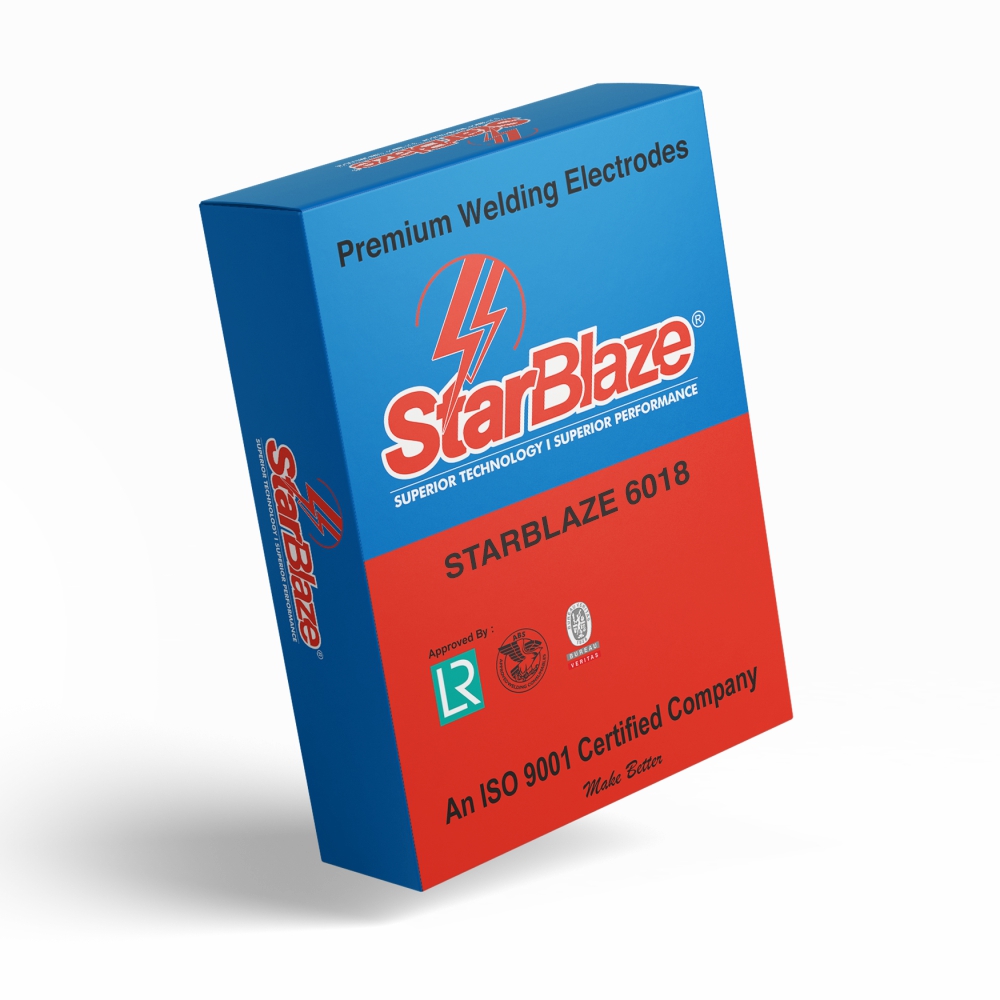

- Pack Sizes: 2.5 Kg Pouch, 5 Kg Box
- Master Box: 20 Kg, 30 Kg, 40 Kg, Customisable packaging available on request
Key Features
- Basic coated, low hydrogen
- Superior Weldability
- Crack Resistant
- Self-releasing Slag
- Low Spatter
- Smooth weld bead appearance
- Excellent strike and restrike.
- Excellent Toughness Values for mild steels at low temperatures.
- ﹤5.0 ml diffusible hydrogen per 100gm weld metal
- Radiographic Quality Weld
Industries
- Structural Engineering
- Marine & Ship-building Applications
- Bridges & Heavy structure Fabrication
Processes
- Manual Metal Arc Welding (MMA / SMAW)
- Suitable for DC and AC polarities. DC+ polarity recommended for optimal arc stability.
- Stable arc characteristics on low open-circuit voltage transformers
- All positional welding except vertical-down (flat, horizontal, vertical up, overhead)
- Easy arc-striking and re-striking with low spatter and easy slag removal
- Low hydrogen (H5) coating for minimised diffusible hydrogen, reducing cracking in structural steels.
Additional Details
- Hydrogen content ≤ 5 ml/100g of deposited weld metal
- Excellent crack resistance for dynamically loaded joints
- Ideal for welding steels of unknown composition
- Re-drying required at 350°C for 1–2 hours before use if moisture exposure occurs
- Provides high impact values even at sub-zero service temperatures
Product Details
Typical Chemical Composition (%)
| C | Si | Mn | P | S |
| 0.06 | 0.30 | 0.55 | 0.020 | 0.012 |
Typical Mechanical Properties (All Weld Metal)
| Heat Treatment | Yield Strength
Rp (N/mm2) |
Tensile Strength
Rm (N/mm2) |
Elongation
A5 (%) |
Charpy Impact Value
(ISO-V J-30°C) |
Charpy Impact Value
(ISO-V J RT) |
| As Welded | ≥ 350 | 450-550 | ≥ 24 | ≥ 47 | 150 |
Recommended Welding Parameters
| Diameter (mm) | Amperage Range (A) |
| 2.50 | 50-90 |
| 3.15 | 100-140 |
| 4.00 | 140-180 |
| 5.00 | 190-240 |
