Description:

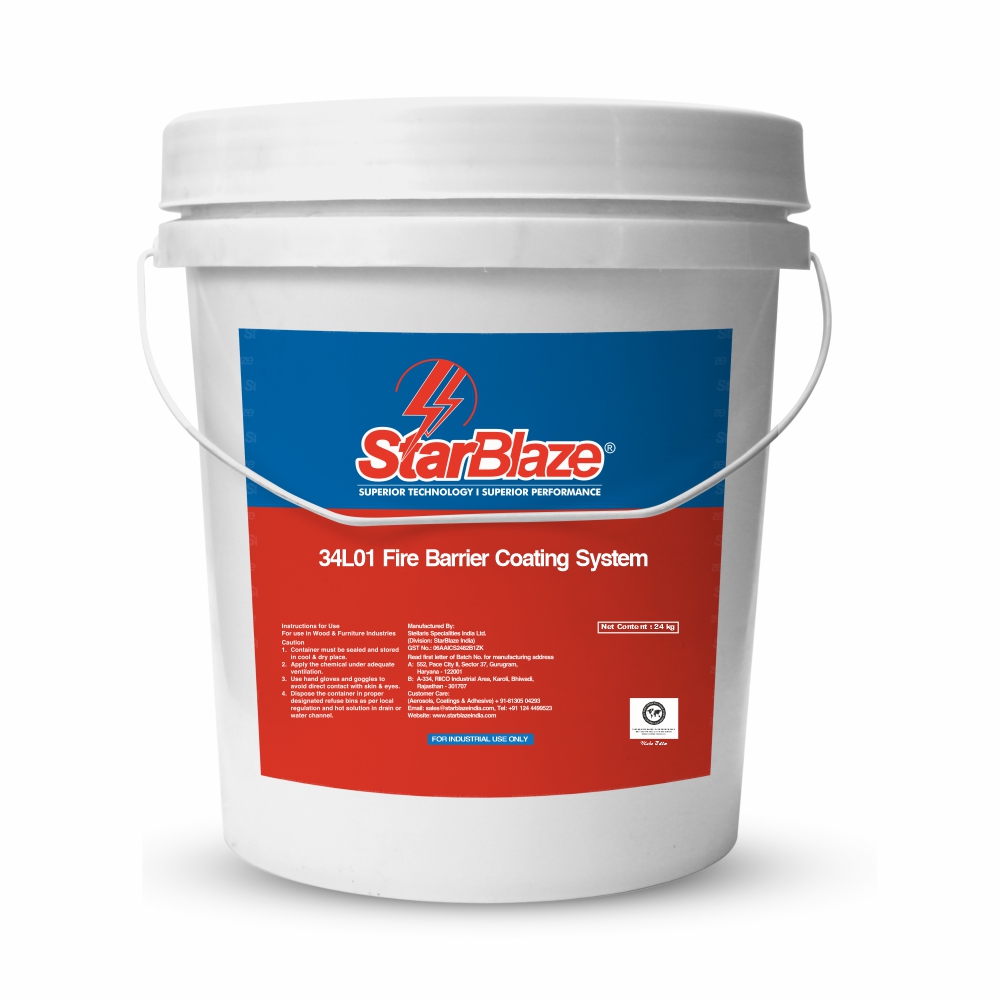

StarBlaze 34L01 is a four component Fire Barrier System consists of very high -density fire & heat resistant mineral wool boards StarBlaze 34L04, coated with water-resistant StarBlaze 34K01intumescent coating, affixed with 34L03 Self expanding fire resistant sealant, which transforms into a hard ceramic during a fire to prevent the passage of fire and smoke and the transfer of heat. Specifically designed for sealing around cable & service penetrations in walls and below panels. Specifically designed for sealing around cable & service penetrations in walls and below panels.

Applications areas:

• Halogen free.
• Chemical & weather resistant system, comprises of high-density mineral wool non- combustible boards, top coated with 34K01 intumescent coating, 34L02 sealing mortar, 34L03 mineral wool blankets, support GI strips & fasteners.
• Easy to retrofit /pass new cables through existing barriers & re-install.
• Tested & certified to meet ASTM 814, UL 1479 & IS: 12458.

Features:

• Light weight 4 hours rated easy to install cable Fire Barrier.
• Fully resistant to moisture, humidity, chemicals, corrosive gases and oil besides offering resistance to rodents & termites.
• Does not shrink or crack thus achieving smoke & gas tight sealing.
• Retrofitting of cables post installation is possible.
• Non – Toxic / Non – Hazardous components, Free from asbestos and volatile solvents.
• Superior load bearing capacity & impact resistance.
• Useable in both through wall & below panel cable penetrations.
• Minimum Density :>170 kg/m3
• Thickness : 50 mm
• Recommended wall thickness for protection : Recommended Thickness of Walls (100mm) & of Floor (150 mm)
