AWS A5.1: E 6013 | DIN EN ISO 2560-A: E 38 0 RC 11 | IS 814: ER 4211X
Excellent Arc, Very Low Spatter, Radiographic Quality
A Rutile type C-Mn medium coated mild steel universal electrode designed for versatile applications in steel construction, shipbuilding, boiler and tank fabrication, and pipeline construction. It offers superior weldability, very low spatter, smooth arc characteristics, fine rippled weld beads, excellent strike and re-strike performance, self-lifting slag, and produces radiographic quality welds.

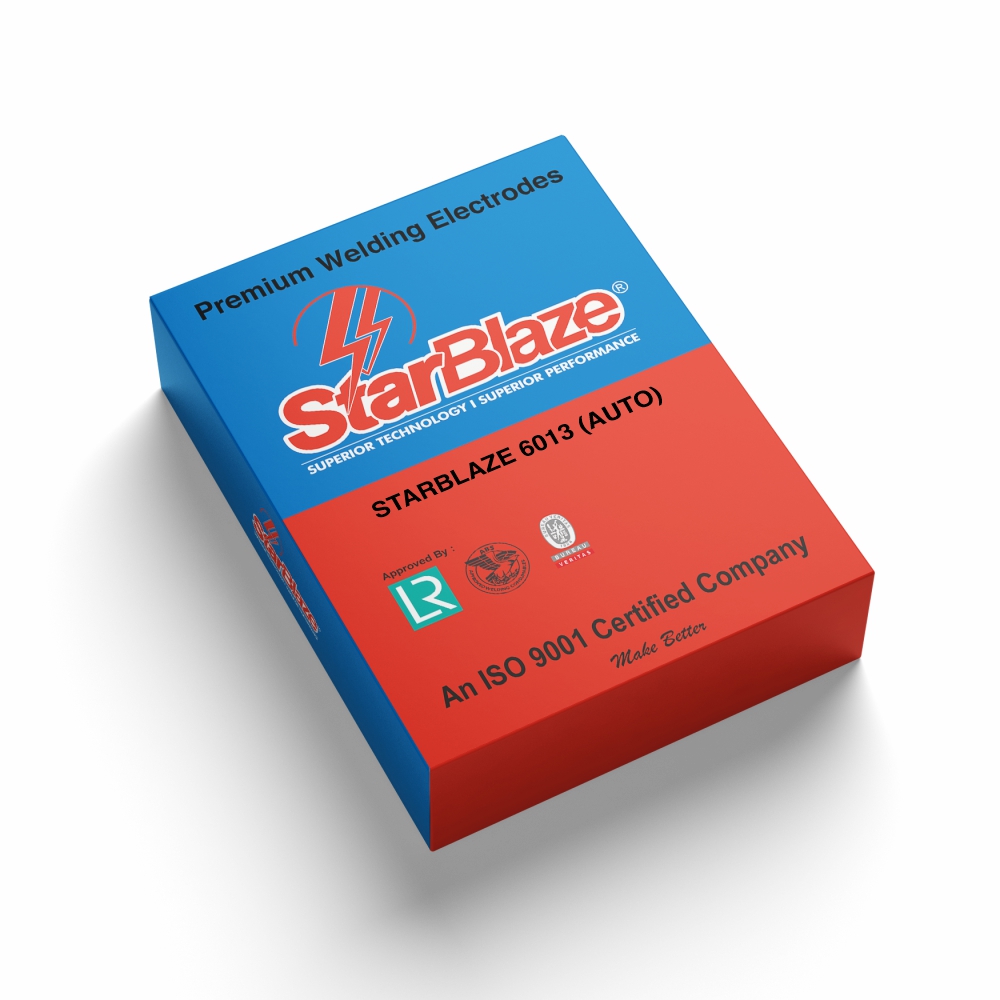

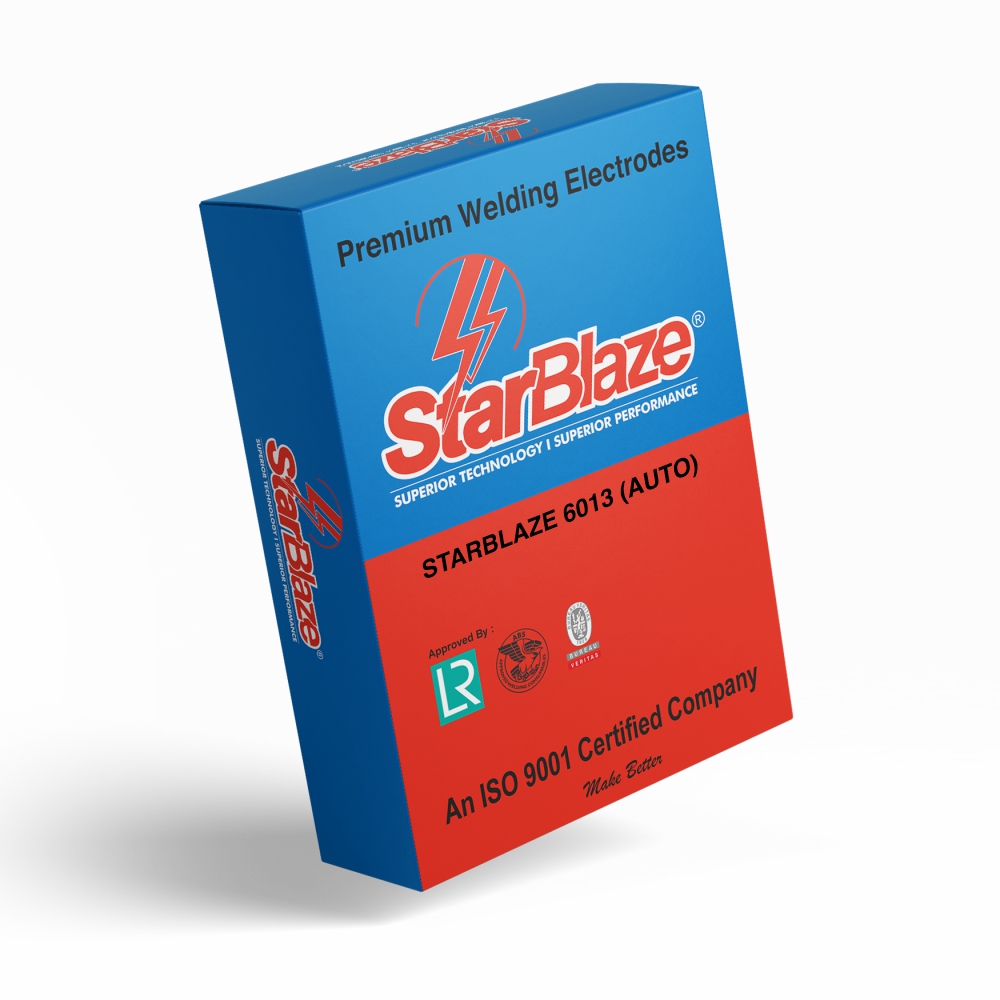

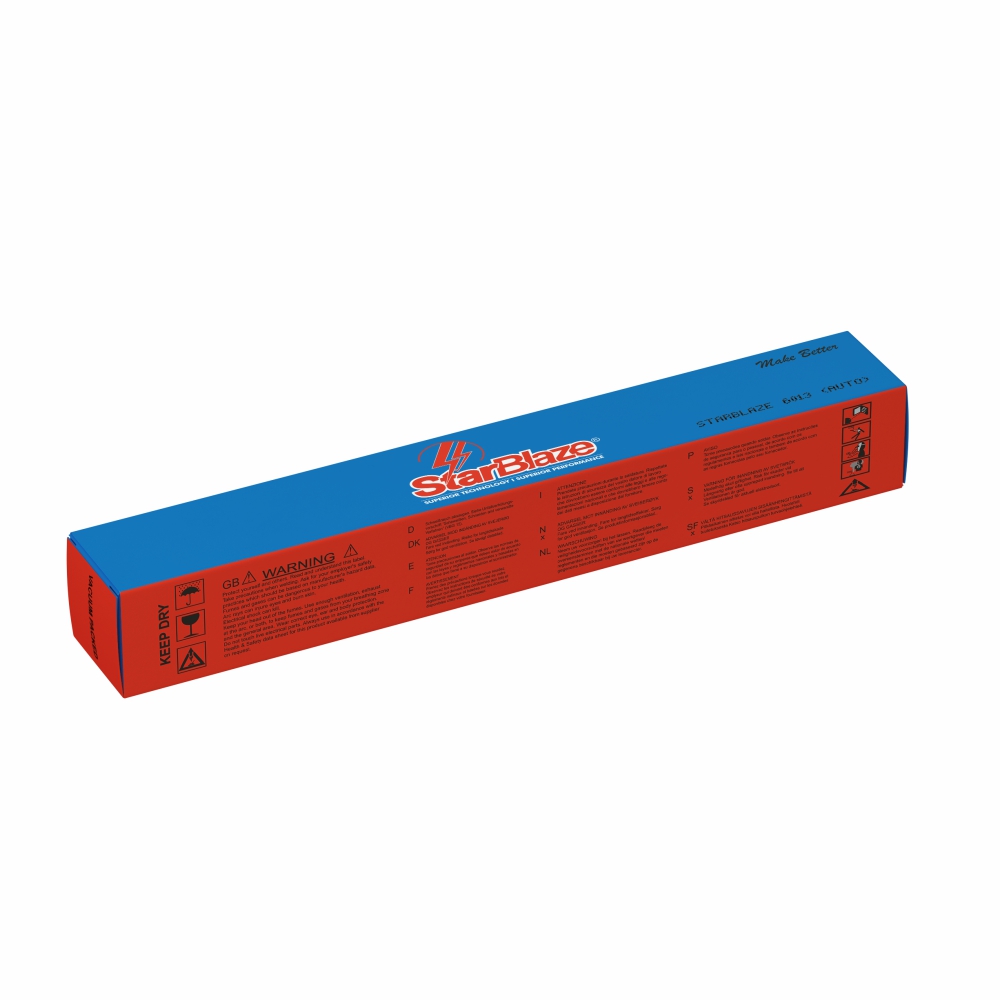

Available Packs
Dimensions: 2.50 mm x 350 mm, 3.15 mm x 450 mm, 4.00 mm x 450 mm, 5.00 mm x 450 mm
Pack Sizes: 2.5 Kg Pouch, 4 Kg Box, 5 Kg Box
Master Box: 20 Kg, 30 Kg, 40 Kg, Customisable packaging available on request
Typical Chemical Composition (%)
| C | Mn | Si | S | P |
| 0.08 | 0.40 | 0.30 | 0.030 | 0.030 |
Typical Mechanical Properties (All Weld Metal)
| Yield Strength Rp (N/mm²) | Tensile Strength Rm (N/mm²) | Elongation A5 (%) | Charpy Impact Value (ISO-V J 0°C) |
| ≥ 380 | 470-540 | ≥ 24 | ≥ 60 |
Recommended Welding Parameters
| Diameter (mm) | Amperage Range (A) |
| 2.50 | 60-90 |
| 3.15 | 90-130 |
| 3.20 | 90-130 |
| 4.00 | 140-180 |
| 5.00 | 180-230 |
