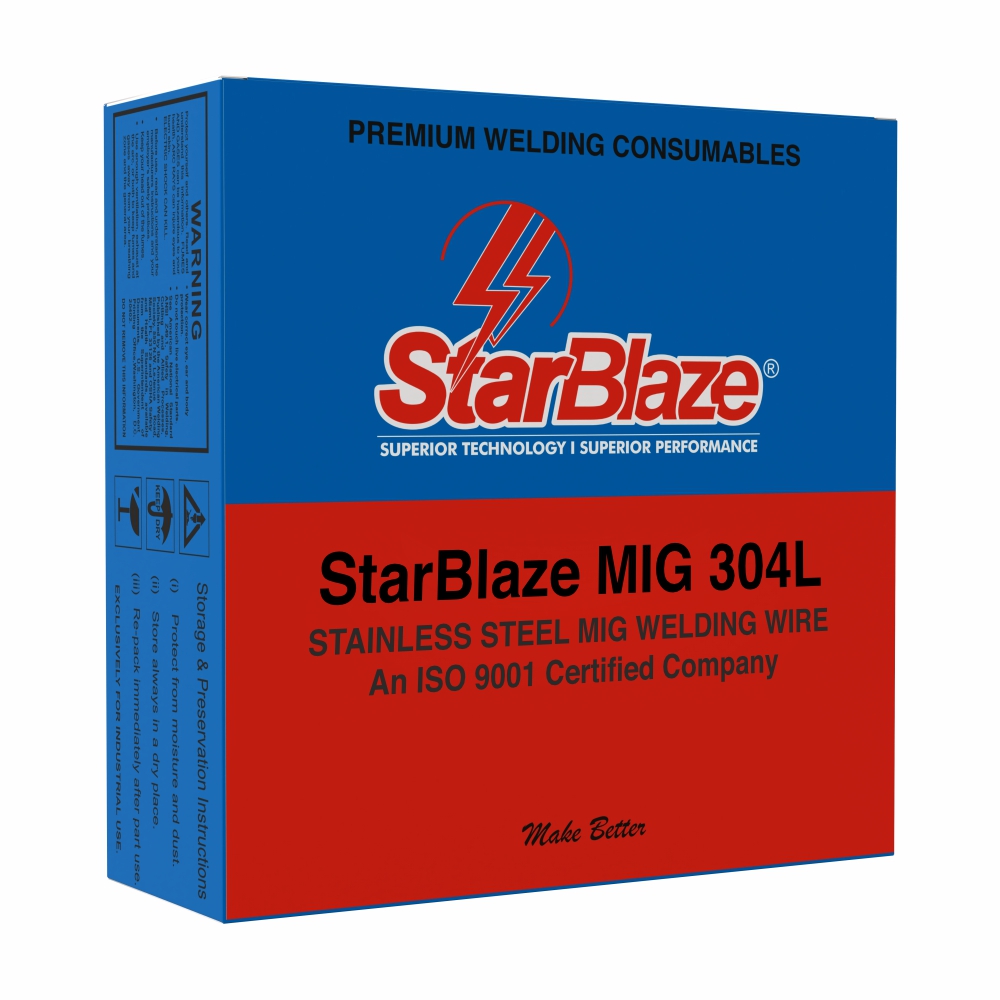

StarBlaze MIG 304L
AWS A5.9: ER 304L | EN ISO 14343-A: W 19 9 L
StarBlaze MIG 304L is a low-carbon stainless steel MIG wire designed for welding austenitic stainless steels like AISI 301, 302, 304, and 304L. It offers excellent corrosion resistance, good mechanical strength, and high resistance to intergranular corrosion due to its extra-low carbon content. Controlled ferrite content (3–8%) provides balanced toughness and crack resistance. Precision layer-wound for smooth, consistent feedability, this wire is ideal for applications in the food processing, chemical, and boiler industries.
- Diameters: 0.8 mm, 1.0 mm, 1.2 mm
- Pack size: 12.50 kg
Key Features
- Extra-low carbon content for high intergranular corrosion resistance
- Controlled ferrite (3–8%) ensures crack-free welds
- Smooth feeding through precision layer-wound wire
- Excellent corrosion resistance in harsh environments
- Supports short, spray, and pulsed arc welding
- Consistent mechanical performance and arc stability
- Ideal for general fabrication and industrial piping
Industries
- Food and Beverage Equipment
- Chemical and Pharmaceutical Processing
- Piping and Boiler Fabrication
- Stainless Steel Structures
- Industrial Fabrication and Assembly
Processes
- MIG welding with Ar+2%O₂ or Ar+2–3%CO₂
- Joining 18Cr/8Ni austenitic stainless steels
- Thin-gauge welding with short arc
- Spray/pulsed arc welding for higher deposition
Additional Details
- Shielding Gas: 98% Ar + 2% O₂ or Ar + 2–3% CO₂
- Current: DC (+)
- Welding Positions: All positions with pulsed arc
- Corrosion Resistance: Comparable to AISI 304L, with strong performance in oxidising and cold dilute reducing acids
- Use spray or pulsed arc for optimal deposition and performance
- Storage: Keep dry; avoid condensation
Product Details
Typical Chemical Composition (%)
| C | Mn | Si | Cr | Ni | Mo | Cu | S | P |
| 0.03 max | 1.50 – 2.50 | 0.30 – 0.65 | 18.00 – 20.00 | 8.00 – 9.50 | 0.75 max | 0.75 max | 0.03 max | 0.04 max |
Typical All-Weld Mechanical Properties
| Yield Strength (N/mm²) | Tensile Strength (N/mm²) | Elongation A5 (%) |
| ≥ 350 | ≥ 550 | ≥ 35% |
Recommended Welding Data
| Shielding Gas | Unit | 0.8 mm | 1.0 mm | 1.2 mm |
| Ar + 1–2% CO₂ | Amp | 40-120 | 80-160 | 100-210 |
| Volt | 15-20 | 16-22 | 17-22 | |
| Ar + 1–2% O₂ | Amp | 160-210 | 180-280 | 200-300 |
| Volt | 24-28 | 24-30 | 24-30 |
