StarBlaze Prime 316L
AWS A5.4: E316L-16 | DIN EN ISO 3581-A: E 19 12 3 LR 12 | DIN EN 1600: E 19 12 3 LR 12 | Werkstoff Nr: 1.4430
Rutile Coated | Mo-Alloyed Austenitic | Low Carbon for Corrosive and Cryogenic Applications
StarBlaze Prime 316L is a low carbon rutile semi-basic Mo-alloyed stainless steel electrode designed for welding austenitic stainless steels such as AISI 316 and 316L. The weld metal offers excellent corrosion resistance, particularly in chloride-containing environments, and ensures stable arc performance with minimal spatter. Suitable for service conditions from -120°C to +400°C, this electrode is ideal for tanks, pipes, and cladding jobs in the chemical, petrochemical, and food industries.

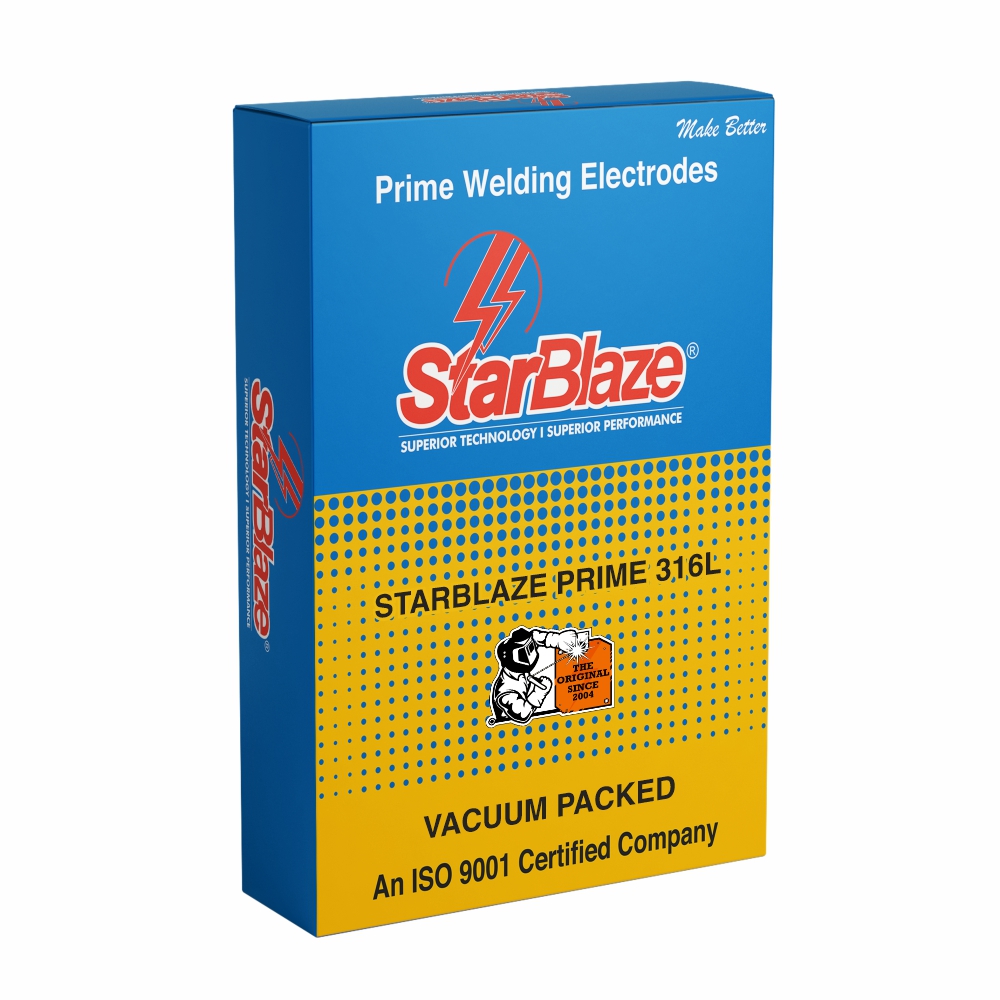

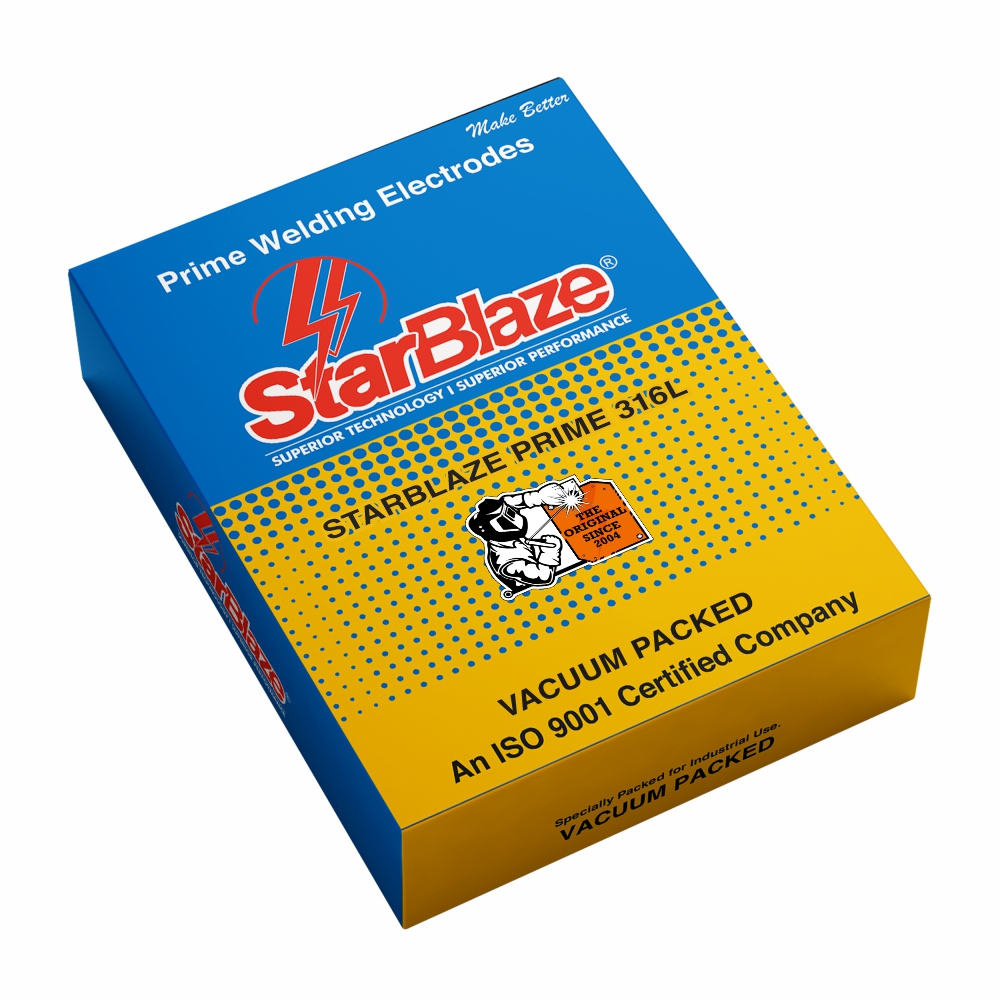

Available Packs
- Dimensions: 2.40 mm x 350 mm, 2.50 mm x 350 mm, 3.15 mm x 450 mm, 3.20 mm x 450 mm, 4.00 mm x 450 mm, 5.00 mm x 450 mm
- Pack Sizes: 2.5 Kg Pouch, 5 Kg Box
- Master Box: 20 Kg, 30 Kg, 40 Kg, Customisable packaging available on request
- Extra low carbon (0.022%) to resist intergranular corrosion
- High weld metal toughness (80 J impact at room temperature)
- Mo content (2.55%) enhances resistance to pitting and crevice corrosion
- Mechanical properties: 590 N/mm² tensile strength, 40% elongation
- Smooth arc with soft fusion, excellent bead appearance, and self-releasing slag
- Ideal for both flat and positional welding
- Chemical and petrochemical plants
- Cryogenic systems and storage tanks
- Food and beverage processing lines
- Pharmaceutical and hygienic equipment
- Marine fabrication and shipbuilding
- Shielded Metal Arc Welding (SMAW / MMA)
- Polarity: AC or DC
- Current range:
- 2.50 mm: 50–80 A
- 3.15 mm: 70–110 A
- 3.20 mm: 70–110 A
- 4.00 mm: 100–150 A
- 5.00 mm: 140–190 A
- Welding positions: 1G/PA, 2F/PB, 2G/PC, 3G/PF, 4G/PE
- Interpass temperature: < 200°C
- Re-dry electrodes at 300–350°C for 1–2 hours if exposed to moisture
- Recommended for corrosion-prone weldments, both structural and pressure bearing
- Suitable for root pass and full-position work in stainless steel piping
- Offers excellent metallurgical cleanliness and weld bead profile
Product Details
Typical Weld Metal Chemical Composition (%)
| C | Si | Mn | Cr | Ni | Mo | S | P |
| 0.022 | 0.90 | 0.75 | 18.50 | 12.00 | 2.55 | 0.010 | 0.025 |
Typical Mechanical Properties (All Weld Metal)
| Tensile Strength
Rm (N/mm2) |
Elongation
A5 (%) |
Charpy Impact Value
(ISO-V J RT) |
| 590 | 40 | 80 |
Recommended Welding Parameters
| Diameter (mm) | Amperage Range (A) |
| 2.50 | 50-80 |
| 3.15 | 70-110 |
| 3.20 | 70-110 |
| 4.00 | 100-150 |
| 5.00 | 140-190 |
