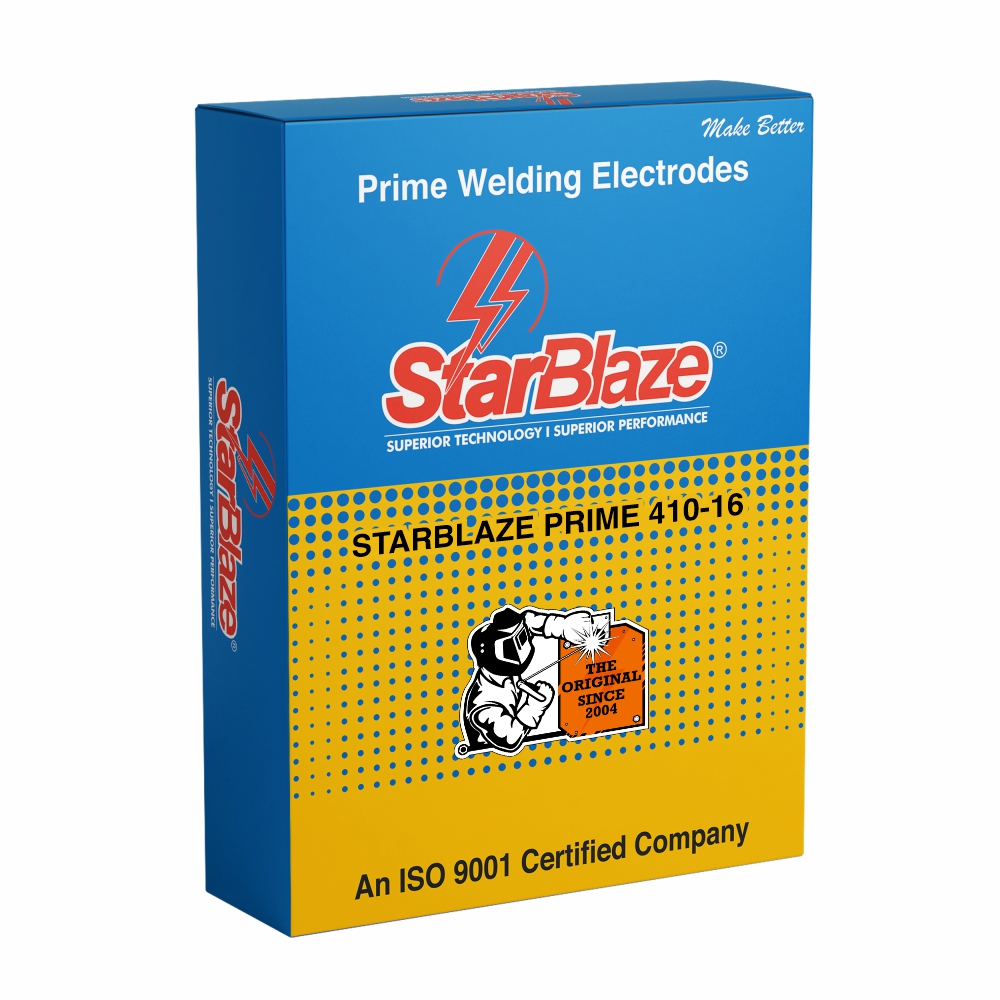

StarBlaze Prime 410-16
AWS A5.4: E410-16
Rutile Coated | Ferritic-Martensitic | Air Hardening
StarBlaze Prime 410-16 is a heavy coated rutile-type MMA electrode designed for welding ferritic-martensitic stainless steels containing 11–13.5% Cr (AISI 410). This electrode offers a smooth arc and clean weld appearance, with mechanical properties suitable for structural applications requiring post-weld heat treatment. Preheating and stress relief are essential to prevent cracking and ensure weld ductility.
- Available Packs
- Dimensions: 2.50 mm x 350 mm, 3.15 mm x 450 mm,4.00 mm x 450 mm, 5.00 mm x 450 mm
- Pack Sizes: 2.5 Kg Pouch, 5 Kg Box
- Master Box: 20 Kg, 30 Kg, 40 Kg, Customisable packaging available on request
Key Features
- For welding AISI 410 and X6Cr13, X12Cr13 steels
- Semi-basic rutile coating for smoother weldability
- Tensile strength >520 N/mm², yield >250 N/mm²
- Elongation >22% in PWHT condition
- Requires PWHT: 760°C × 1 hr
- Excellent restrike and slag detachability
Industries
- Petrochemical
- Power plant fabrication
- General engineering repairs
- Heat and corrosion-resistant component welding
Processes
- MMAW/SMAW
- Polarity: AC or DCEN
- Welding positions: PA, PB, PC, PF, PE
- Ampere ranges:
- 2.50 mm: 60–90 A
- 3.15 mm: 90–140 A
- 4.00 mm: 140–180 A
- 5.00 mm: 190–240 A
Additional Details
- Ensure preheat and interpass temperature control
- Stress-relieving mandatory to avoid brittle welds
- Re-dry electrodes at 280–300°C for 1 hr if required (max 3 times)
- Store in dry, controlled conditions to avoid hydrogen pick-up
Product Details
Typical Weld Metal Chemical Composition (%)
| C | Mn | Si | P | S | Cr | Ni |
| 0.07 | 0.50 | 0.40 | 0.02 | 0.010 | 12.00 | 0.50 |
Typical Mechanical Properties (All Weld Metal)
| Stress Relieved
(PWHT) |
Yield Strength
Rp (N/mm2) |
Tensile Strength
Rm (N/mm2) |
Elongation
A5 (%) |
| PWHT 760°C for 1hr | ≥ 250 | ≥ 520 | ≥ 22 |
Recommended Welding Parameters
| Diameter (mm) | Amperage Range (A) |
| 2.50 | 60-90 |
| 3.15 | 90-140 |
| 4.00 | 140-180 |
| 5.00 | 190-240 |
