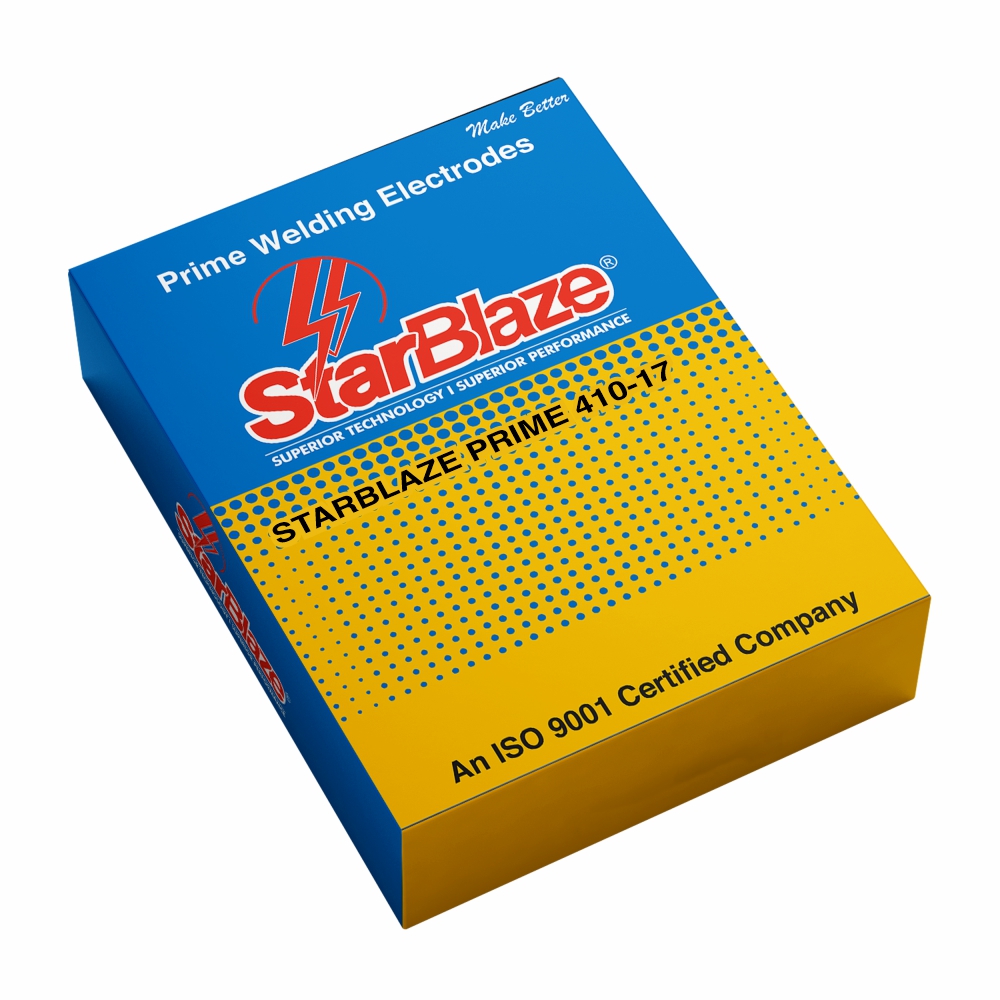

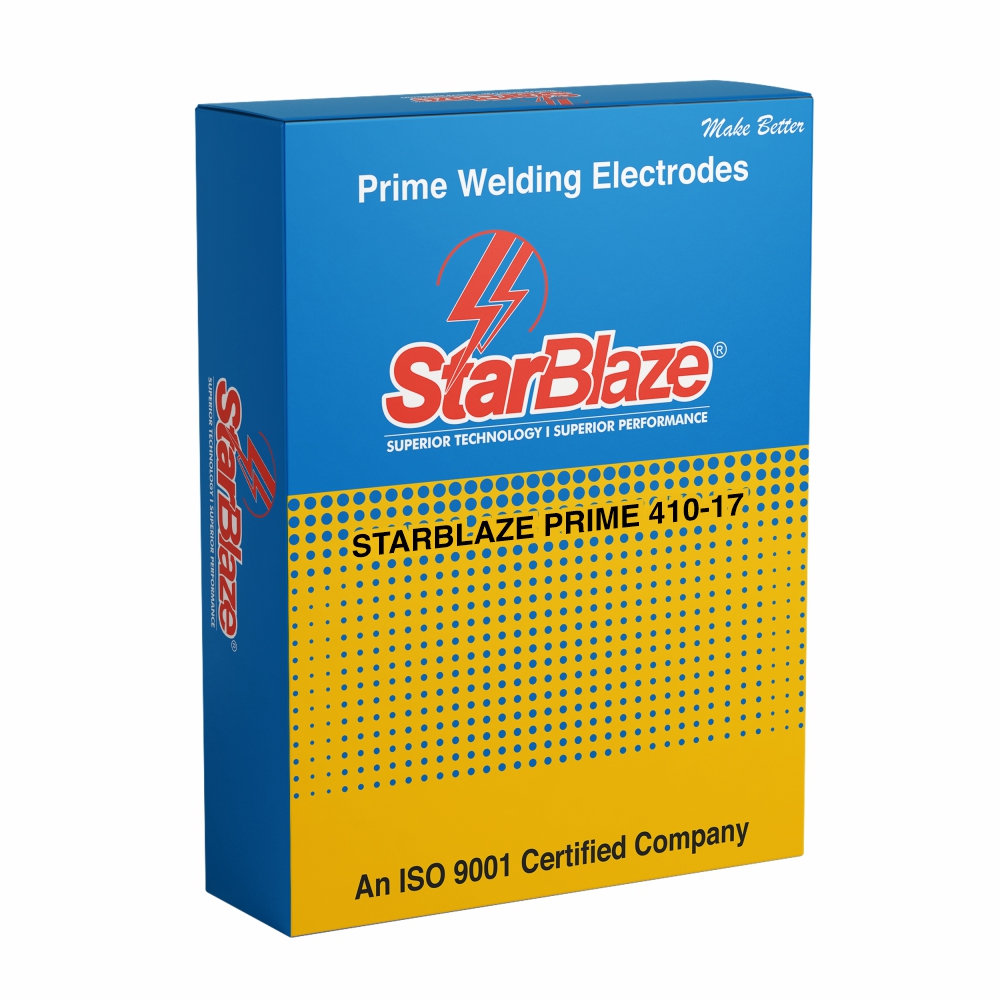

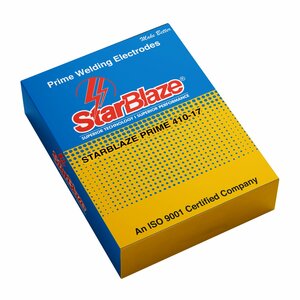

StarBlaze Prime 410-17
AWS A5.4: E410-17
Rutile Coated | Ferritic-Martensitic | Air Hardening
StarBlaze Prime 410-17 is a semi-basic rutile MMA electrode suited for welding 11–13.5% Cr ferritic martensitic stainless steels (AISI 410). It provides a stable arc and clean bead finish for applications requiring post-weld heat treatment (PWHT) to achieve ductility. Suitable for both fabrication and repair, particularly where mechanical working follows welding.
Available Packs:
- 2.50 mm – 60–90 A
- 3.15 mm – 90–140 A
- 4.00 mm – 140–180 A
- 5.00 mm – 190–240 A
Supplied in vacuum-sealed moisture-controlled packaging
Key Features
- Designed for AISI 410 (X6Cr13/X12Cr13) steels
- Excellent slag removal and arc restrike
- Tensile strength ≥ 520 N/mm², yield strength ≥ 250 N/mm²
- Elongation ≥ 22% after PWHT
- For critical applications requiring controlled ductility
- Compatible with mechanical working post-weld
Industries
- Valve bodies and pump parts
- Heat exchanger shells
- Petrochemical fabrication
- General engineering and process industries
Processes
- Manual Metal Arc Welding (MMAW/SMAW)
- Polarity: AC or DCEN
- Welding Positions: PA, PB, PC, PF, PE
Additional Details
- Requires PWHT at 760°C for 1 hour
- Store dry and handle with care to avoid hydrogen-induced cracking
- Re-dry at 280–300°C for 1 hour if required, up to 3 cycles
- Maintain interpass temperature within recommended limits
Product Details
Typical Weld Metal Chemical Composition (%)
| C | Mn | Si | P | S | Cr | Ni |
| 0.07 | 0.50 | 0.40 | 0.02 | 0.010 | 12.00 | 0.50 |
Typical Mechanical Properties (All Weld Metal)
| Stress Relieved
(PWHT) |
Yield Strength
Rp (N/mm2) |
Tensile Strength
Rm (N/mm2) |
Elongation
A5 (%) |
| PWHT 760°C for 1hr | ≥ 250 | ≥ 520 | ≥ 22 |
Recommended Welding Parameters
| Diameter (mm) | Amperage Range (A) |
| 2.50 | 60-90 |
| 3.15 | 90-140 |
| 4.00 | 140-180 |
| 5.00 | 190-240 |
