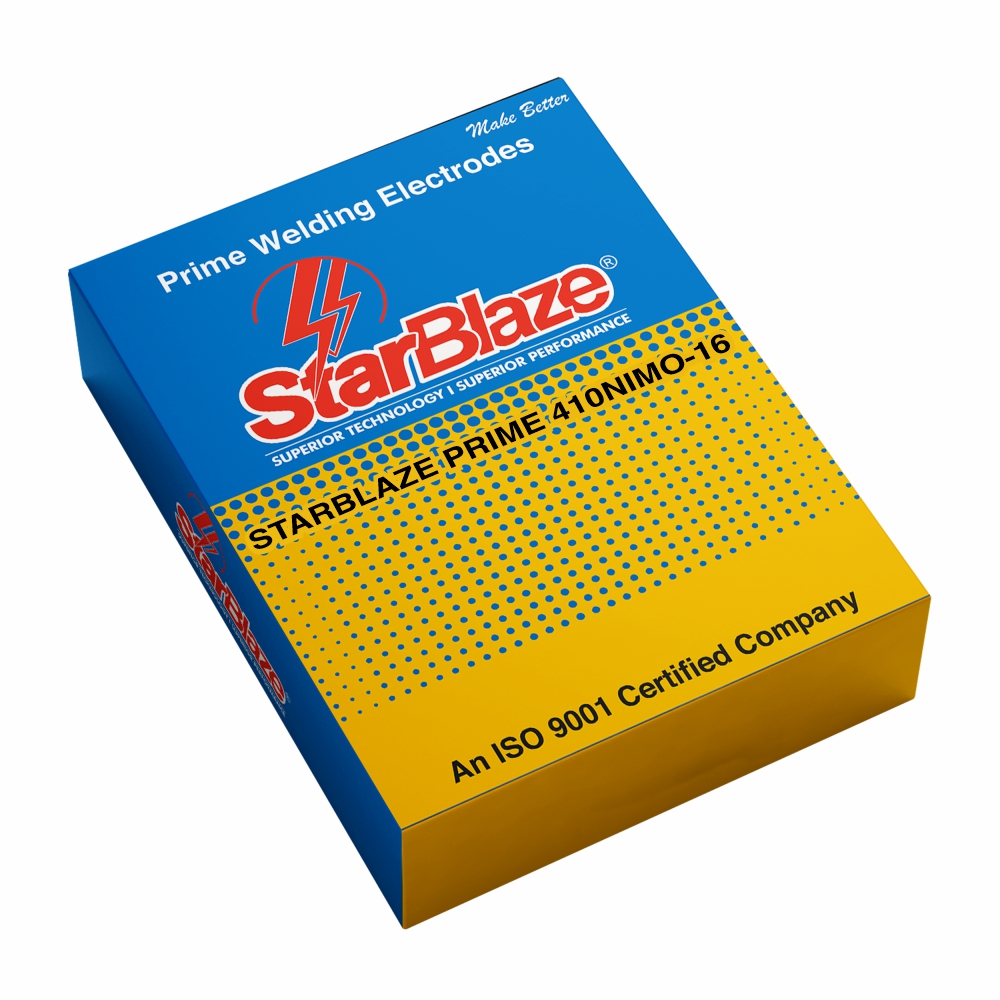

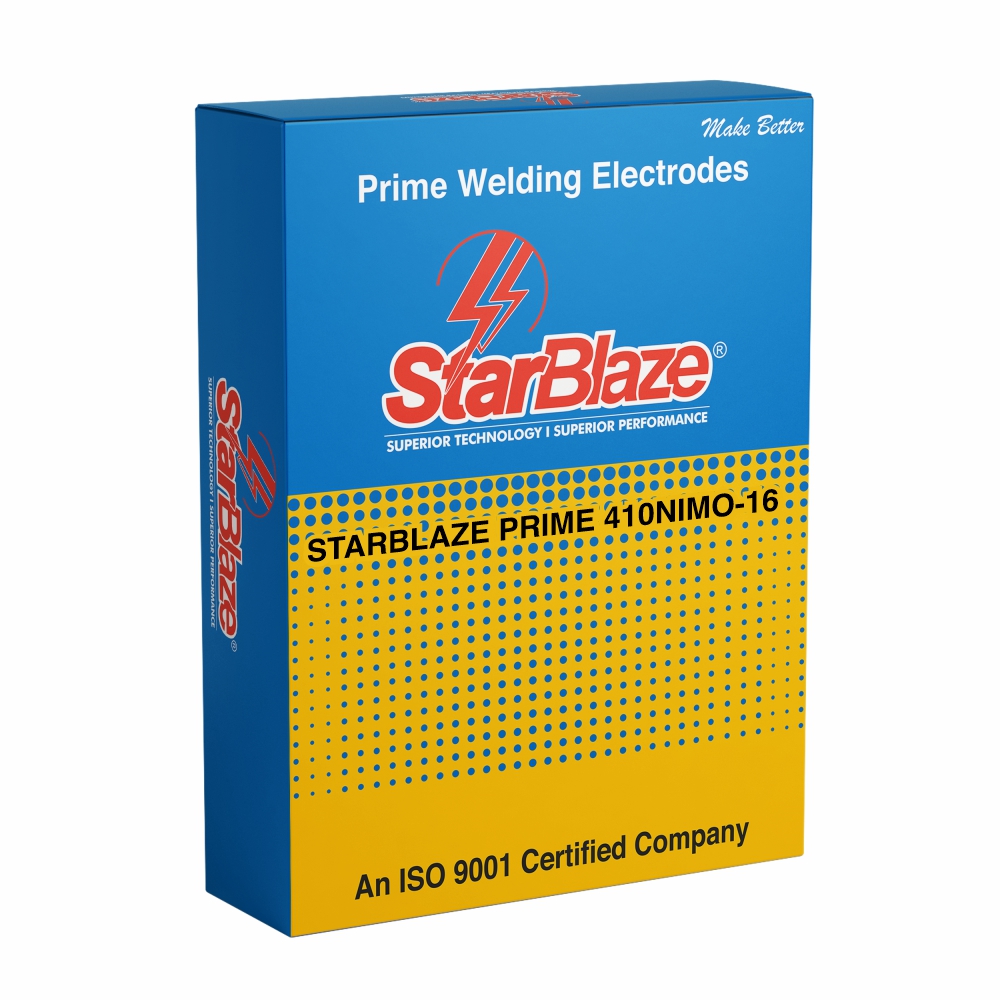

StarBlaze Prime 410 NiMo-16
AWS A5.4: E 410NiMo-16 | DIN EN ISO 3581-A: E 13 4 R 12 | Werkstoff Nr: 1.4351
Rutile Coated | Martensitic | Abrasion & Pitting Resistant
StarBlaze Prime 410NiMo-16 is a rutile basic coated MMA electrode formulated for welding martensitic stainless steels and cast steels containing Cr-Ni-Mo. It delivers a weld deposit with excellent corrosion, erosion, and pitting resistance, particularly in aggressive environments. Suitable for components subjected to high wear and thermal cycles, where ductility is restored through post-weld heat treatment.
Available Packs:
- 2.40 mm – 40–70 A
- 2.50 mm – 50–80 A
- 3.15 mm / 3.20 mm – 80–110 A
- 4.00 mm – 110–160 A
5.00 mm – 180–220 A
Key Features
- High tensile strength (≥850 N/mm²) and yield strength (≥600 N/mm²)
- Cr-Ni-Mo chemistry for enhanced abrasion and pitting resistance
- Elongation ≥15% post stress relief
- Designed for use on martensitic stainless types including AISI 410NiMo
- Stable arc, low spatter, and good bead appearance in all positions
Industries
- Hydro turbine parts
- Chemical and petrochemical vessels
- Pump impellers, valve seats, and cast components
- Marine and offshore applications
Processes
- Manual Metal Arc Welding (SMAW/MMAW)
- Welding Positions: PA, PB, PC, PF, PE
- Polarity: DC+, rutile-basic flux system
Additional Details
- Stress relieving recommended at 610°C/hr (air or 1 hr hold)
- Maintain interpass temperature control for ductility
- Redrying at 280–300°C for 1 hour (max 3 times) if exposed to moisture
- Ideal for cladding or joining martensitic stainless steels with Cr 12%, Ni 4.6%, Mo 0.5%
Product Details
Typical Weld Metal Chemical Composition (%)
| C | Mn | Si | P | S | Cr | Ni | Mo | Cu |
| 0.03 | 0.70 | 0.50 | 0.03 | 0.010 | 12.00 | 4.60 | 0.50 | 0.10 |
Typical Mechanical Properties (All Weld Metal)
| Yield Strength Rp (N/mm2) | Tensile Strength Rm (N/mm2) | Elongation A5 (%) | Stress Relieved (PWHT) |
| ≥ 600 | ≥ 850 | ≥ 15 | 610°C/hr. Air or 610°C/1hr. |
Recommended Welding Parameters
| Diameter (mm) | Amperage Range (A) |
| 2.40 | 40-70 |
| 2.50 | 50-80 |
| 3.15 | 80-110 |
| 3.20 | 80-110 |
| 4.00 | 110-160 |
| 5.00 | 180-220 |
