StarBlaze Prime 410 NiMo
AWS A5.4: E410NiMo-15 | DIN EN ISO 3581-A: E 13 4 B 22 | Werkstoff Nr: 1.4351
Basic Coated | Martensitic | Corrosion & Pitting Resistant

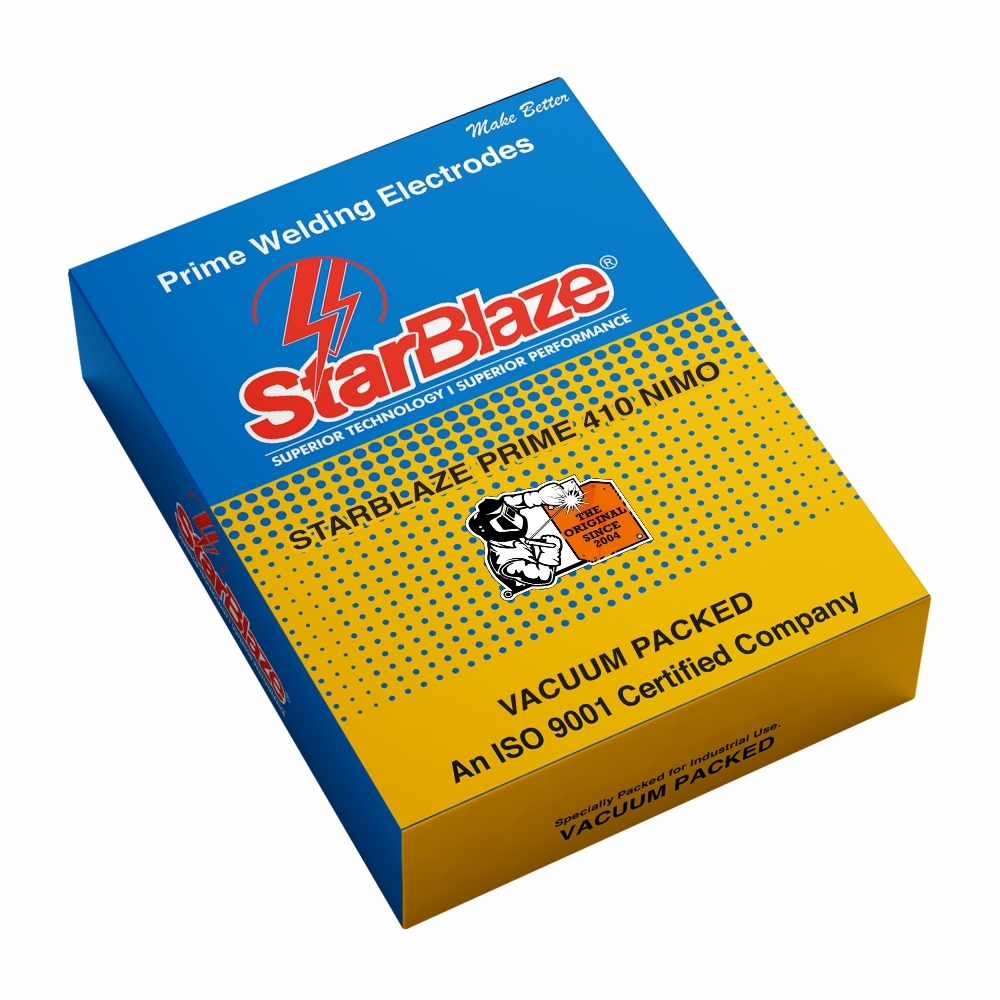

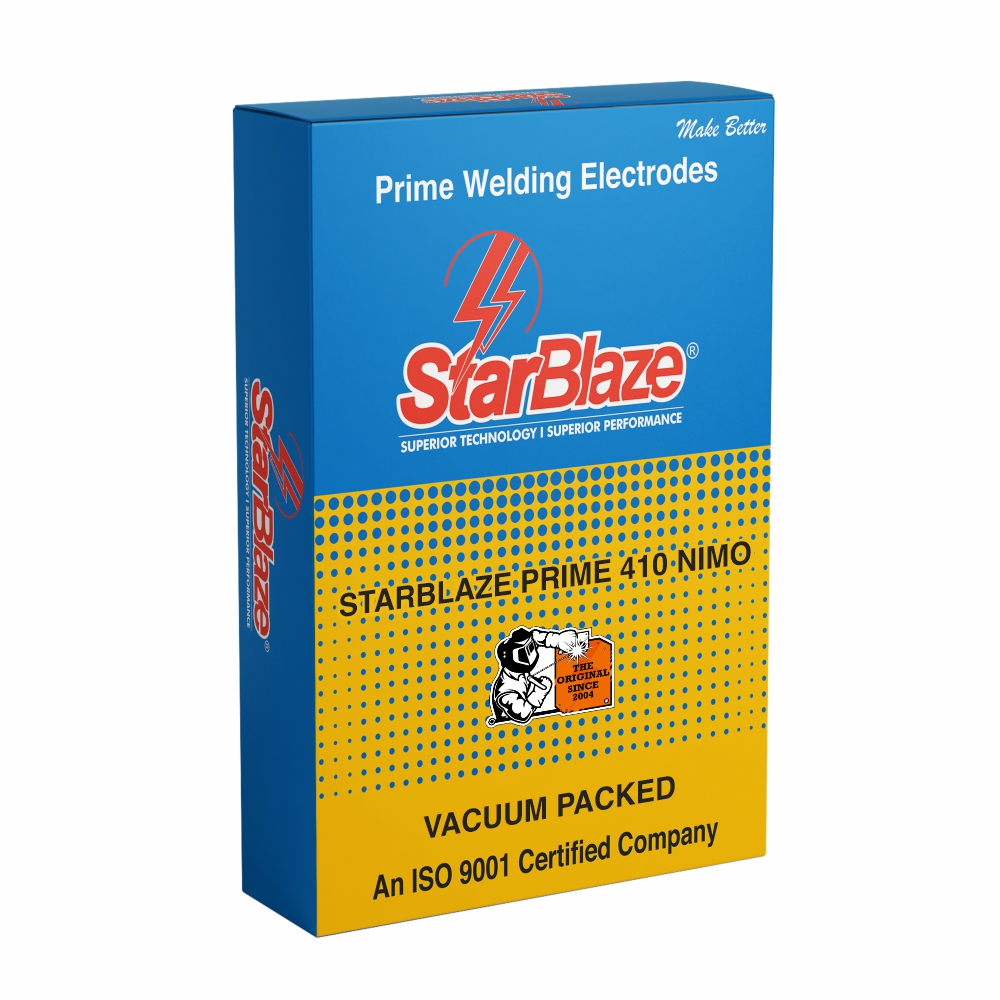

StarBlaze Prime 410 NIMO is a basic coated electrode engineered for welding stainless martensitic chromium-nickel-molybdenum steels or cast equivalents such as AISI 410 NiMo. The deposit offers excellent resistance to abrasion, corrosion, and pitting. Being an air-hardening type, preheating and PWHT are necessary to achieve adequate ductility for machining and service life. Packed in vacuum sealed packaging for moisture protection.
excellent resistance to cracking, oxidation, and corrosion.
Available Packs
- Dimensions: 2.50 mm x 350 mm, 3.15 mm x 450 mm, 3.20 mm x 450 mm, 4.00 mm x 450 mm, 5.00 mm x 450 mm
- Pack Sizes: 2.5 Kg Pouch, 5 Kg Box
- Master Box: 20 Kg, 30 Kg, 40 Kg, Customisable packaging available on request
- Corrosion and pitting resistant weld metal
- High mechanical strength: >760 N/mm² tensile, >600 N/mm² yield
- Stress relieved condition: PWHT at 610°C for 1 hr (air) or 5 hr
- Good abrasion resistance with Mo and Ni alloying
- Suitable for cast and wrought AISI 410 NiMo types
- Excellent arc stability and slag removability
- Chemical processing equipment
- Valve and pump housings
- Heat exchangers and pressure vessels
- Power plant piping and cast repairs
- Manual Metal Arc Welding (MMA / SMAW)
- Polarity: DCEN (preferred) or AC
- Current range:
- 2.50 mm: 50–80 A
- 3.15 mm: 70–100 A
- 3.20 mm: 70–100 A
- 4.00 mm: 110–150 A
- 5.00 mm: 180–220 A
- Welding positions: PA, PB, PC, PF, PE
- Preheat and interpass temperature control required to avoid hardening
- PWHT critical for achieving ductility and machinability
- Re-dry if required at 300–350°C for 1 hour, up to 3 cycles
- Keep electrodes dry and avoid condensation during storage
Product Details
Typical Weld Metal Chemical Composition (%)
| C | Mn | Si | P | S | Cr | Ni | Mo | Cu |
| 0.04 | 0.60 | 0.40 | 0.03 | 0.010 | 11.50 | 4.60 | 0.50 | 0.10 |
Typical Mechanical Properties (All Weld Metal)
| Yield Strength Rp (N/mm2) | Tensile Strength Rm (N/mm2) | Elongation A5 (%) | Stress Relieved (PWHT) |
| ≥ 600 | ≥ 760 | ≥ 15 | 610°C/hr. Air or 610°C/5hr. |
Recommended Welding Parameters
| Diameter (mm) | Amperage Range (A) |
| 2.50 | 50-80 |
| 3.15 | 70-100 |
| 3.20 | 70-100 |
| 4.00 | 110-150 |
| 5.00 | 180-220 |
