StarBlaze TIG 430
AWS A5.9: ER 430 | EN ISO 14343-A: G 17
StarBlaze TIG 430 is a 16% chromium stainless steel TIG wire designed for welding ferritic stainless steels. The alloy composition is optimised to ensure good corrosion resistance for typical applications while maintaining sufficient ductility in the heat-treated condition. Preheating and post-weld heat treatment are generally recommended to achieve optimal mechanical properties and corrosion resistance. It is ideal for use in the fabrication and repair of components such as exhaust systems, automotive parts, and architectural applications.
Diameter: 0.80 mm, 0.90 mm, 1.00 mm, 1.20 mm, 1.60 mm, 2.00 mm, 2.40 mm, 3.20 mm, 4.00 mm

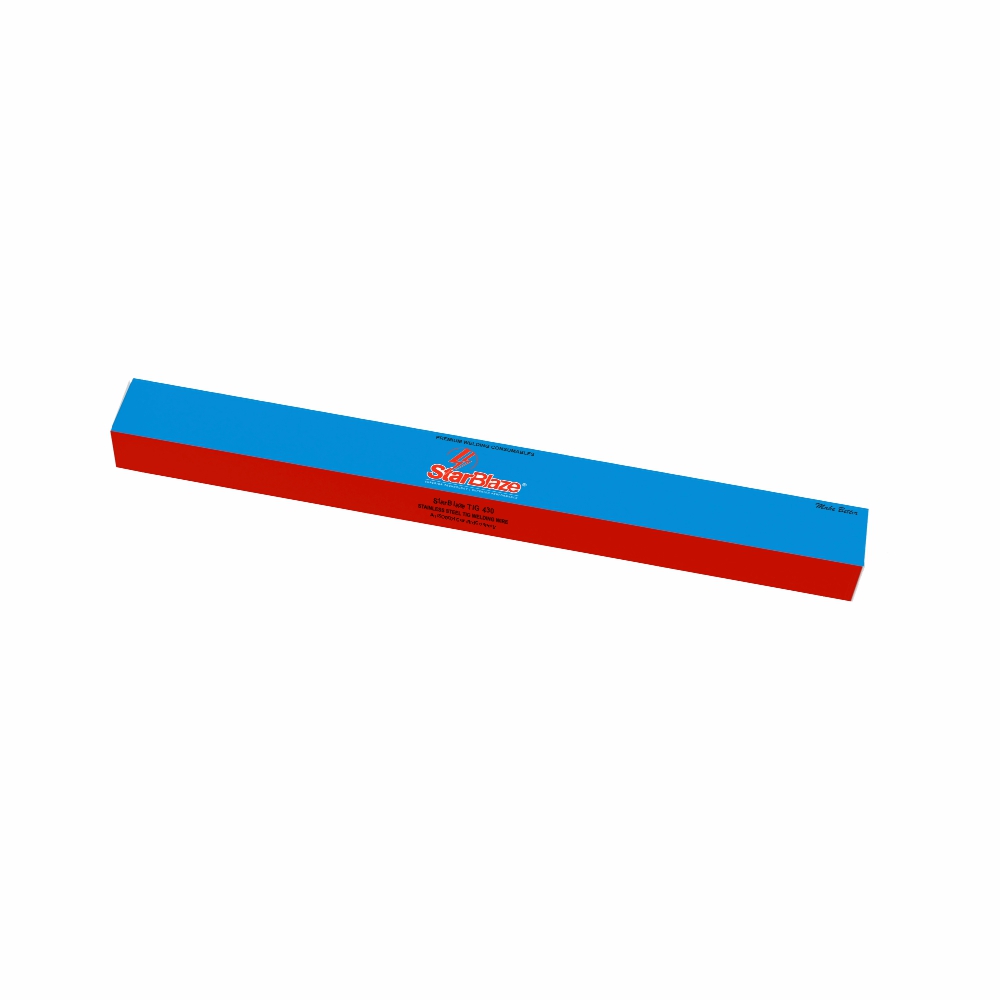

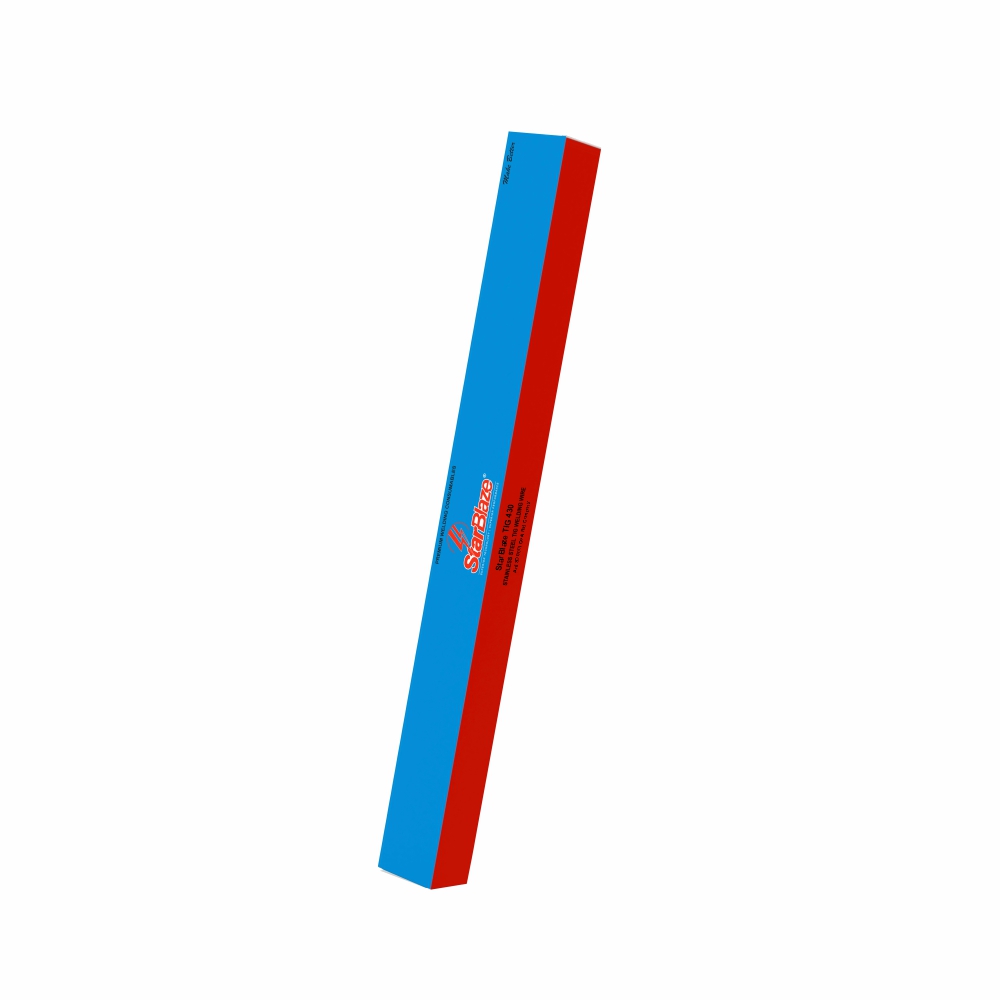

Pack Sizes: 5 kg/tube, 20 kg/box
- Optimised 16% Cr for corrosion resistance with ductility retention
- Suitable for welding AISI 430 and other ferritic stainless grades
- Ideal for applications needing post-weld heat treatment
- Excellent edge-weldability and arc stability
- Clean finish and smooth feeding
- Automotive Component Manufacturing
- Architectural Steel Fabrication
- Household Appliance Manufacturing
- General Maintenance & Repair
- TIG Welding of Ferritic Stainless Steels
- Preheated Welding of Exhaust Systems
- Overlay Welding on Architectural Fixtures
- Recommended for welding ferritic stainless steels such as AISI 430
- Post-weld heat treatment advised for optimal performance
- Welding current: DC (–)
- Store in dry conditions; avoid condensation
- Materials to be welded:
- AISI 430
- X20CrNi17-2
- G-X40CrSi17
- G-X22CrNi7
- X10CrAl18
Product Details
Typical Chemical Composition (%)
| C | Mn | Si | Cr | Ni | Mo | Cu | S | P |
| 0.10 max | 0.60 max | 0.95 max | 15.50 – 17.00 | 0.60 max | 0.75 max | 0.75 max | 0.03 max | 0.03 max |
Typical All-Weld Mechanical Properties
| Yield Strength (N/mm²) | Tensile Strength (N/mm²) | Elongation A5 (%) | Impact Energy ISO-V(J) 20°C |
| ≥ 400 | ≥ 450 | ≥ 15% | ≥ 27 |
