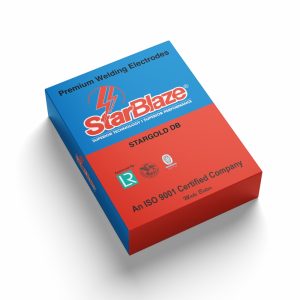

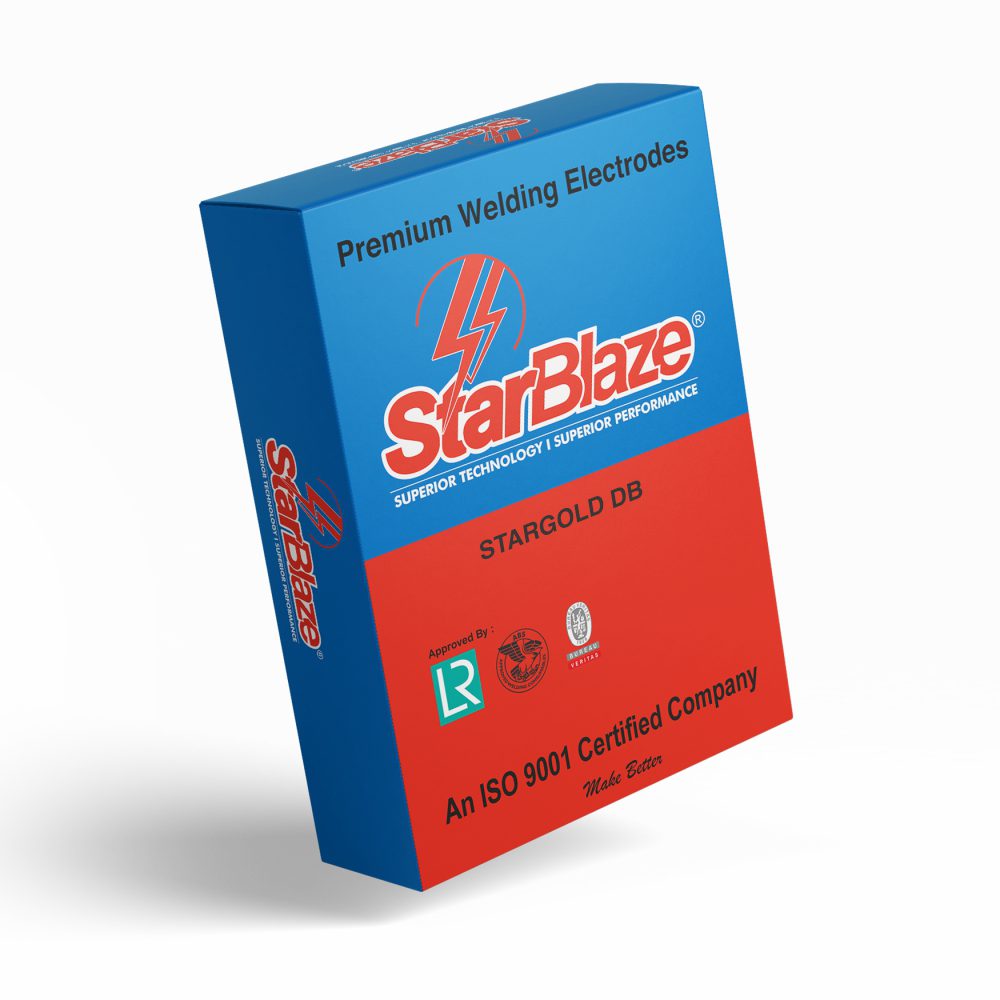

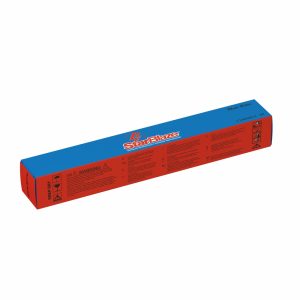

STARGOLD DB – Premium Electrode for Hot Die & Tool Steel Repairs
STARGOLD DB is a high-performance electrode formulated for repairs and surfacing on hot working tools, forging dies, and high-stress tool steel components. Its weld deposit offers superior toughness, deformation resistance at elevated temperatures, and excellent creep resistance.
Alloyed with Chromium, Nickel, Molybdenum, Vanadium, and Cobalt, this electrode ensures exceptional thermal fatigue resistance and strength retention under continuous high-temperature operations. It is fully machinable with tungsten carbide tools and ideal for use in the forging, press, and die industries.
Available Packs: 3.15mm, 4.00mm, 5.00mm
Key Features
- Tough and wear-resistant weld deposit at high temperatures
- Excellent creep resistance and impact toughness
- All-position electrode for tool steels
- High resistance to fatigue, stress, and thermal distortion
- Fully machinable with tungsten carbide tools
- Compatible with die block steels and forging tools
Industries
- Forging & Tool Manufacturing
- Heavy Engineering
- Steel & Die Casting
- Aerospace & Automotive
- Power Plants & Refineries
Processes
- Manual Metal Arc Welding (MMAW)
- Hot Tool Repair & Surfacing
- Die Maintenance & Rebuilding
- Press & Hammer Repair
Additional Details
- Store in dry, sealed packaging to prevent moisture absorption
- Re-drying recommended at 300–350°C for 2 hours
- Preheat up to 400°C and cool slowly to prevent hot cracking
- Use low heat input to reduce residual stress
- Suitable for multi-layer build-up on alloy steels and dies
- Refer TDS for more details
Product Details
| Property | Value / Description |
| Alloying Elements | Chromium, Nickel, Molybdenum, Vanadium, Cobalt |
| Key Properties | High toughness, deformation resistance, creep resistance |
| Operating Temperature | High temperature applications (not specified, inferred as elevated) |
| Hardness | Controlled hardness for multi-layer buildup |
| Machinability | Fully machinable with tungsten carbide tools |
| Welding Positions | Horizontal, Downhand |
| Re-drying Recommendation | 300–350°C for 2 hours |
| Preheat Requirement | Up to 400°C (recommended) |
| Application Areas | Hot working tools, forging dies, press jacks, punches, inserts |
