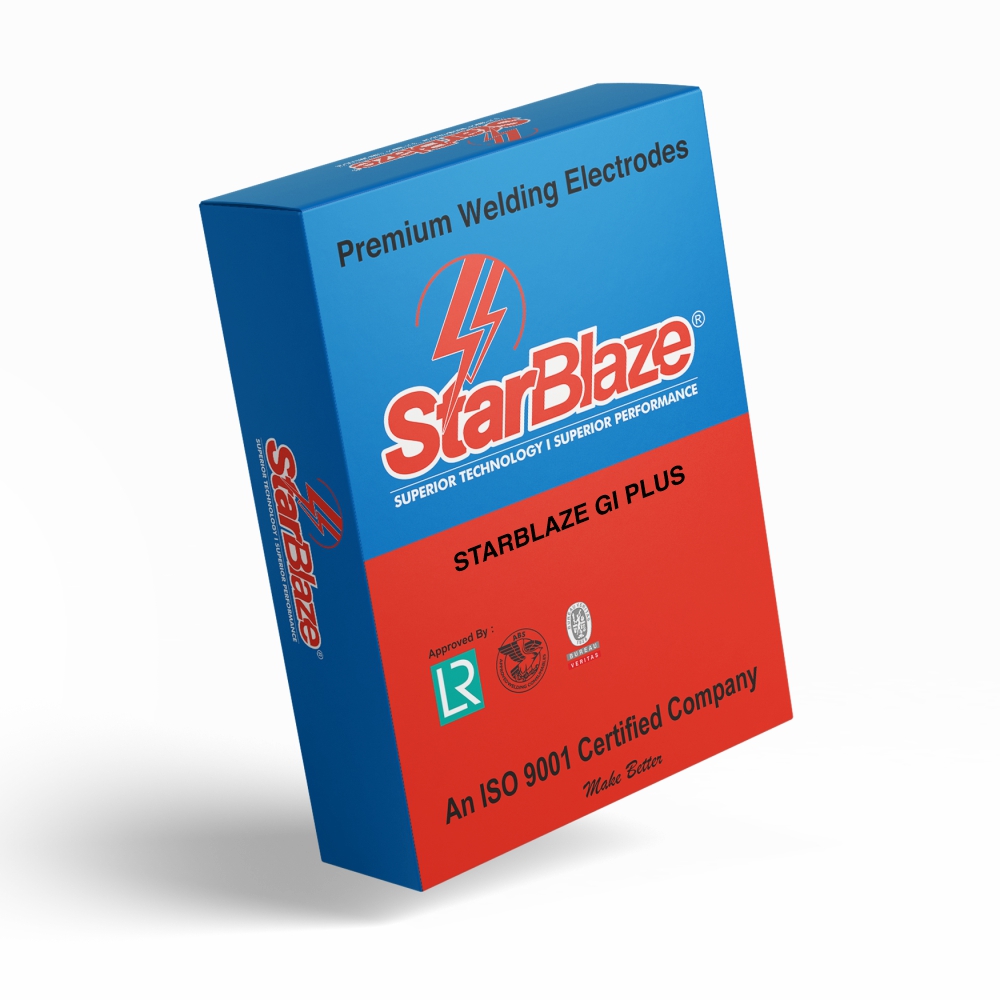

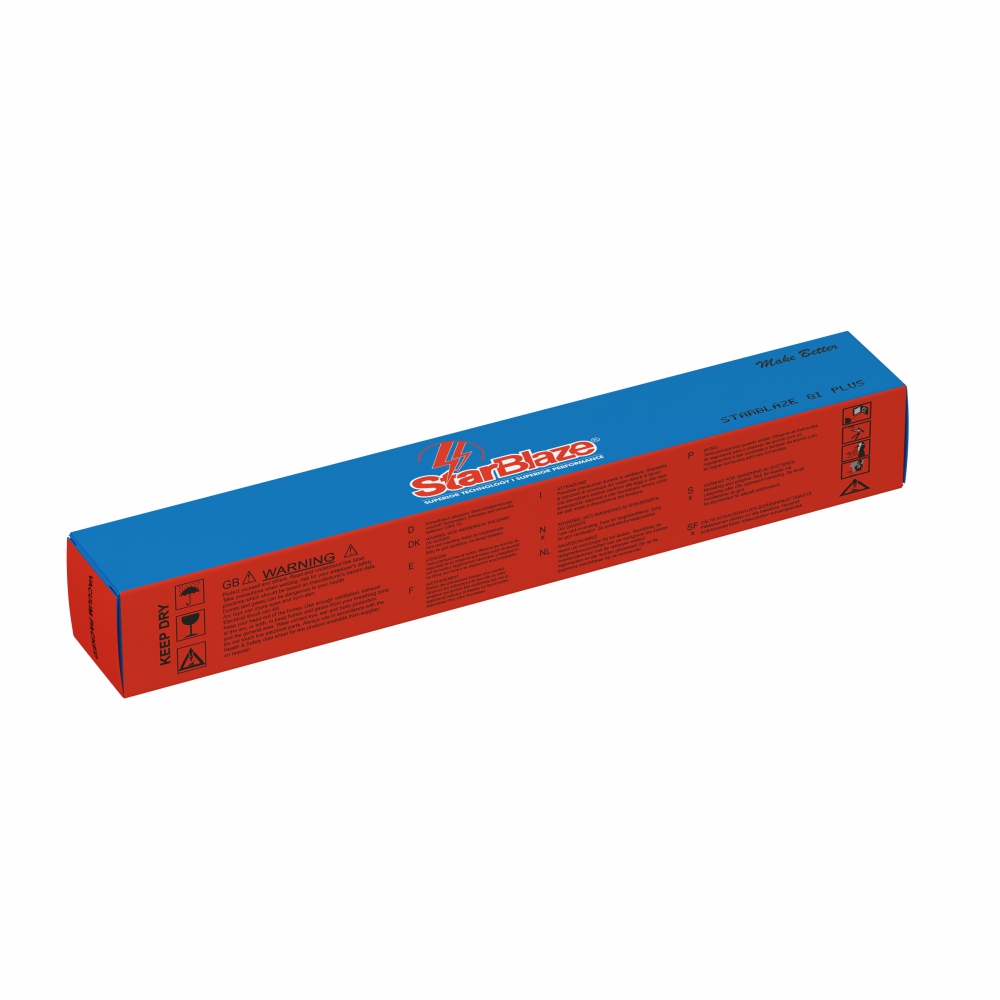

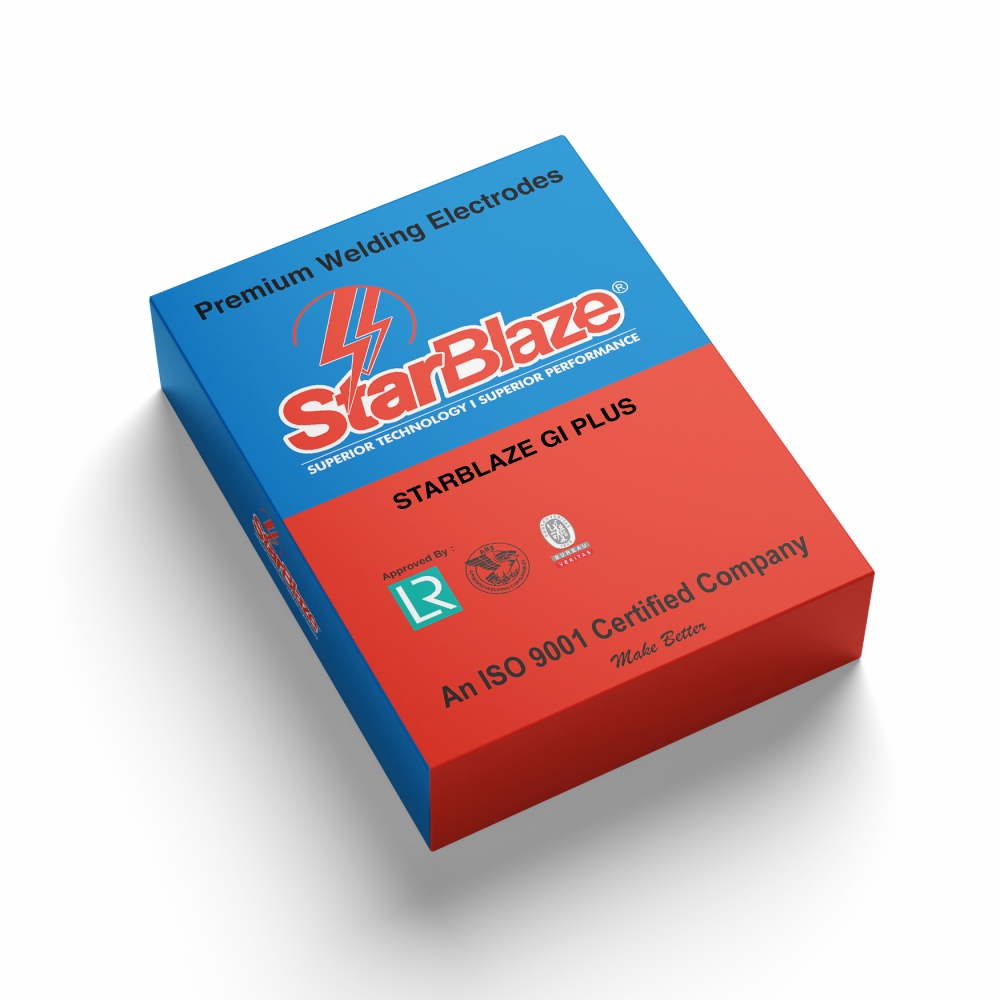

STARBLAZE GI PLUS
StarBlaze GI PLUS is a specially designed very low silicon welding electrode developed for the fabrication, maintenance, and repair of galvanizing baths. The deposited weld metal is almost pure iron, providing excellent resistance to corrosion caused by molten zinc. It is ideally suited for rebuilding worn-out galvanizing bath surfaces and extending the service life of galvanizing equipment exposed to continuous molten zinc attack.
Available Packs
Dimensions: 3.20 mm x 450 mm, 4.00 mm x 450 mm, 5.00 mm x 450 mm
Pack Sizes: 2.5 Kg Pouch, 4 Kg Box, 5 Kg Box
Master Box: 20 Kg, 30 Kg, 40 Kg, Customisable packaging available on request
Very low silicon weld deposit
Deposited weld metal is nearly pure iron
Excellent resistance to molten zinc corrosion
Designed specifically for galvanizing bath repairs
Suitable for fabrication of galvanizing bath structures
Extends service life of zinc bath components
Good weld integrity under high-temperature service conditions
Reliable performance in maintenance and repair applications
Suitable for AC and DC+ polarity
Easy handling and stable welding characteristics
Hot Dip Galvanizing Plants
Steel Processing Industries
Structural Steel Fabrication
Industrial Maintenance and Repair
Galvanizing Equipment Manufacturing
Metal Finishing Industries
Infrastructure Fabrication Workshops
Manual Metal Arc Welding (MMA/SMAW)
Fabrication of galvanizing bath structures
Repair welding of worn galvanizing bath walls
Maintenance welding of molten zinc handling equipment
Rebuilding zinc-corroded surfaces
Industrial repair and refurbishment applications
Specifically developed for resistance to molten zinc corrosion
Recommended for fabrication and repair of galvanizing baths
Ideal for rebuilding worn-out bath bodies exposed to continuous zinc attack
Keep electrodes dry and avoid condensation
Re-dry at 100–150°C for 1 hour if required
Suitable for AC and DC+ polarity
Provides long-term protection in galvanizing environments
Product Details
Typical Chemical Composition (%)
| C | Mn | Si |
| 0.05 | 0.40 | 0.05 |
Typical Mechanical Properties (All Weld Metal)
| Tensile Strength Rm (N/mm²) | Elongation A5 (%) |
| 400 | 30 |
Recommended Welding Parameters
| Diameter (mm) | Amperage Range (A) |
| 3.20 | 110-140 |
| 4.00 | 160-180 |
| 5.00 | 200-240 |
