StarBlaze Prime 10018 D2
AWS A5.5: E10018-D2
Superior Crack Resistance | Low Hydrogen | Impact Toughness at -50°C
A basic coated, iron powder electrode designed for high yield strength steels requiring excellent impact toughness at sub-zero temperatures. With a diffusible hydrogen content of less than 4.0 ml/100g and smooth, ripple-free bead profile, it is ideal for heavy-duty structural welding applications in demanding environments. Wields a crack-resistant, radiographic-quality weld.

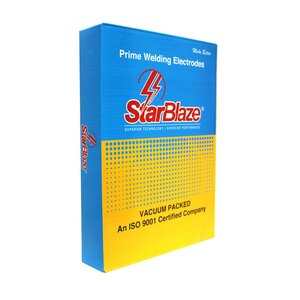

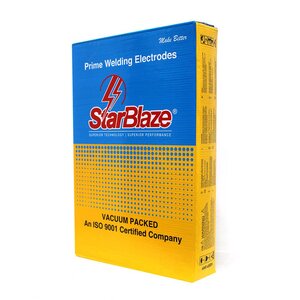

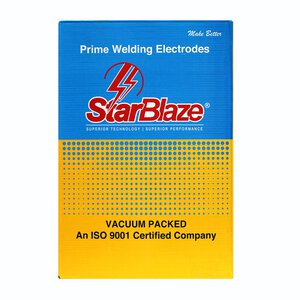

Available Packs
- Dimensions: 2.40 mm x 350 mm, 2.50 mm x 350 mm, 3.15 mm x 450 mm, 3.20 mm x 450 mm, 4.00 mm x 450 mm, 5.00 mm x 450 mm
- Pack Sizes: 2.5 Kg Pouch, 5 Kg Box
- Master Box: 20 Kg, 30 Kg, 40 Kg, Customisable packaging available on request
Key Features
- Excellent impact notch toughness at -50°C
- Yield strength > 630 N/mm²; tensile strength up to 850 N/mm²
- Smooth weld appearance with stable arc and low spatter
- Radiographic quality welds
- Ideal for critical applications involving restraint and stress
Industries
- Q&T Steel Fabrication
- High Strength Castings
- Earthmoving Equipment
- Pressure Vessel & Penstock Fabrication
- Structural & Security Critical Weldments
Processes
- Shielded Metal Arc Welding (SMAW / MMA)
- DC+ polarity
- All-position welding: PA, PB, PC, PF, PE, PF2
Additional Details
- Compatible base materials: ASTM A 302 Gr. B, S(P) 500
- Charpy V-notch impact toughness: 60 J at -50°C
- Hydrogen controlled: < 4.0 ml/100g weld metal
- Re-drying instructions: 350°C for 1–2 hours, up to 3 cycles
- Requires preheating and PWHT depending on application
Product Details
Typical Weld Metal Chemical Composition (%)
| C | Si | Mn | Mo | Ni | P | S |
| 0.08 | 0.45 | 1.80 | 0.40 | 0.70 | 0.020 | 0.020 |
Typical Mechanical Properties (All Weld Metal)
| Heat Treatment | Yield Strength Rp (N/mm2) | Tensile Strength Rm (N/mm2) | Elongation A5 (%) | Charpy Impact Value ISO-V (J) -50°C |
| As Welded | 630 | 700-850 | 22 | 60 J |
Recommended Welding Parameters
| Diameter (mm) | Amperage Range (A) |
| 2.40 | 50-80 |
| 2.50 | 60-90 |
| 3.15 | 90-130 |
| 3.20 | 90-130 |
| 4.00 | 130-180 |
| 5.00 | 180-240 |
