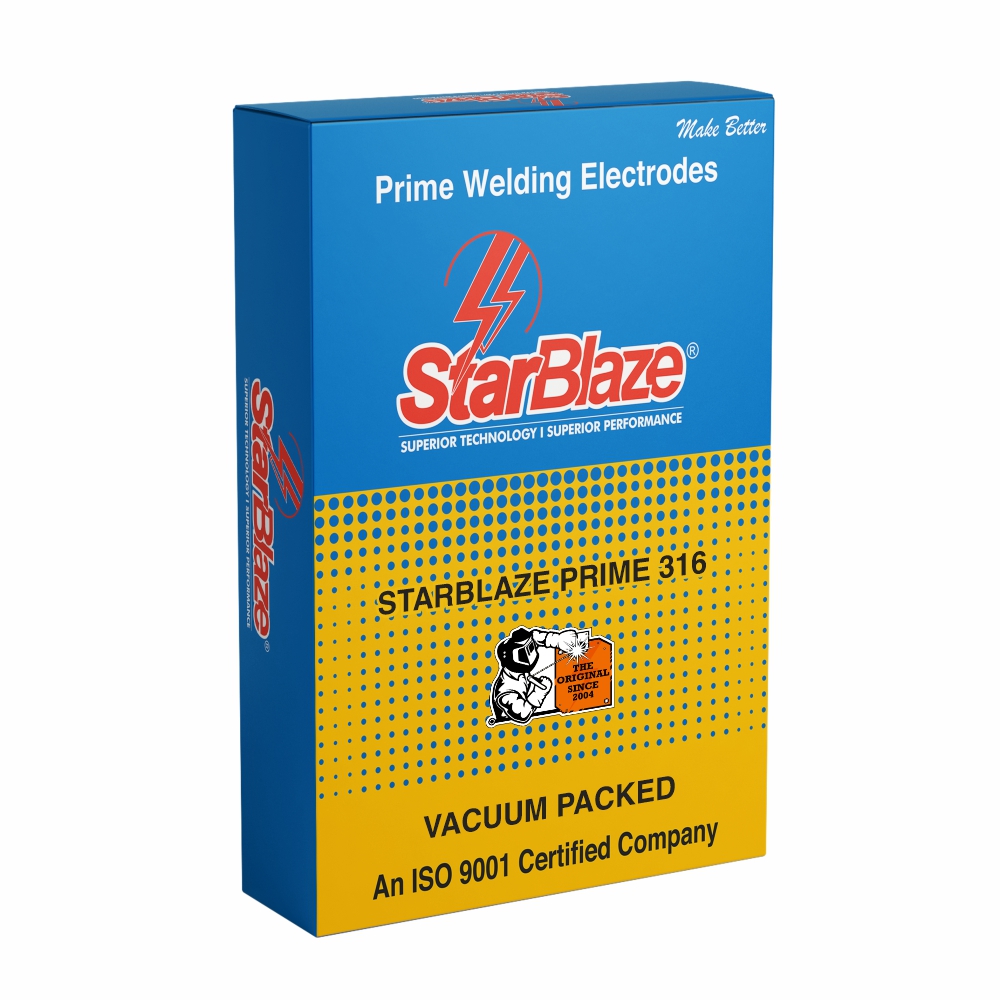

StarBlaze Prime 316
AWS A5.4: E316-16 | DIN EN ISO 3581-A: E 19 12 3 R 12 | DIN EN 1660: E 19 12 3 R 12 | Werkstoff Nr: 1.4430
Rutile Coated | Mo-Alloyed Austenitic | Corrosion and Heat Resistant
StarBlaze Prime 316 is a rutile-basic coated stainless steel electrode alloyed with Mo for enhanced corrosion resistance and mechanical strength. With approximately 5–8% ferrite in the deposit and coating designed for low moisture pickup (LMA Type), it offers clean slag removal, smooth arc characteristics, and excellent weld appearance. Suitable for welding and cladding of 316/316Ti stainless steels in tanks, pipelines, and pressure systems operating between -120°C and +400°C.
Available Packs
- Dimensions: 2.40 mm x 350 mm, 2.50 mm x 350 mm, 3.15 mm x 450 mm, 3.20 mm x 450 mm, 4.00 mm x 450 mm, 5.00 mm x 450 mm
- Pack Sizes: 2.5 Kg Pouch, 5 Kg Box
- Master Box: 20 Kg, 30 Kg, 40 Kg, Customisable packaging available on request
- Excellent resistance to pitting, corrosion, and thermal stress
- Mo-alloyed weld deposit with 18.8% Cr, 11.5% Ni, and 2.4% Mo
- Outstanding mechanical properties: 590 N/mm² tensile strength, 38% elongation
- Stable arc with spatter-free fusion and easy slag detachment
- Suitable for both flat and positional welding
- Performs reliably in cryogenic and moderately elevated service temperatures
- Petrochemical and chemical processing
- Food and beverage production
- Shipbuilding and marine pipeline welding
- Pharmaceutical equipment fabrication
- Heat exchangers, process vessels, and storage tanks
- Shielded Metal Arc Welding (SMAW / MMA)
- Polarity: AC or DC
- Current range:
- 2.50 mm: 50–80 A
- 3.15 mm: 70–110 A
- 3.20 mm: 70–110 A
- 4.00 mm: 100–150 A
- 5.00 mm: 140–190 A
- Welding positions: 1G/PA, 2F/PB, 2G/PC, 3G/PF, 4G/PE
- Interpass temperature: < 200°C
- Re-dry electrodes at 350°C for 1 hour if required
- Suitable for overlaying or joining 316 and similar grades
- Low spatter and smooth bead profile enhance post-weld finish
- Designed for high productivity and consistent weld quality in field or shop conditions
Product Details
Typical Weld Metal Chemical Composition (%)
| C | Si | Mn | Cr | Ni | Mo | S | P |
| 0.05 | 0.90 | 0.80 | 18.80 | 11.50 | 2.40 | 0.015 | 0.025 |
Typical Mechanical Properties (All Weld Metal)
| Tensile Strength Rm (N/mm2) | Elongation A5 (%) | Charpy Impact Value (ISO-V J RT) |
| 590 | 38 | 60 |
Recommended Welding Parameters
| Diameter (mm) | Amperage Range (A) |
| 2.50 | 50-80 |
| 3.15 | 70-110 |
| 3.20 | 70-110 |
| 4.00 | 100-150 |
| 5.00 | 140-190 |
