StarBlaze TIG 410
AWS A5.9: ER 410 | EN ISO 14343-A: G 13
StarBlaze TIG 410 is an ER410/G13 type solid TIG welding wire depositing a C-13%Cr weld metal. It is primarily used for overlay welding on carbon steels to enhance resistance to corrosion, erosion, or abrasion. The alloy provides strong mechanical performance and is compatible with Ar-CO₂ mixed shielding gases. Ideal for applications in wear-prone environments where stainless overlays are required.
Diameter: 0.80 mm, 0.90 mm, 1.00 mm, 1.20 mm, 1.60 mm, 2.00 mm, 2.40 mm, 3.20 mm, 4.00 mm

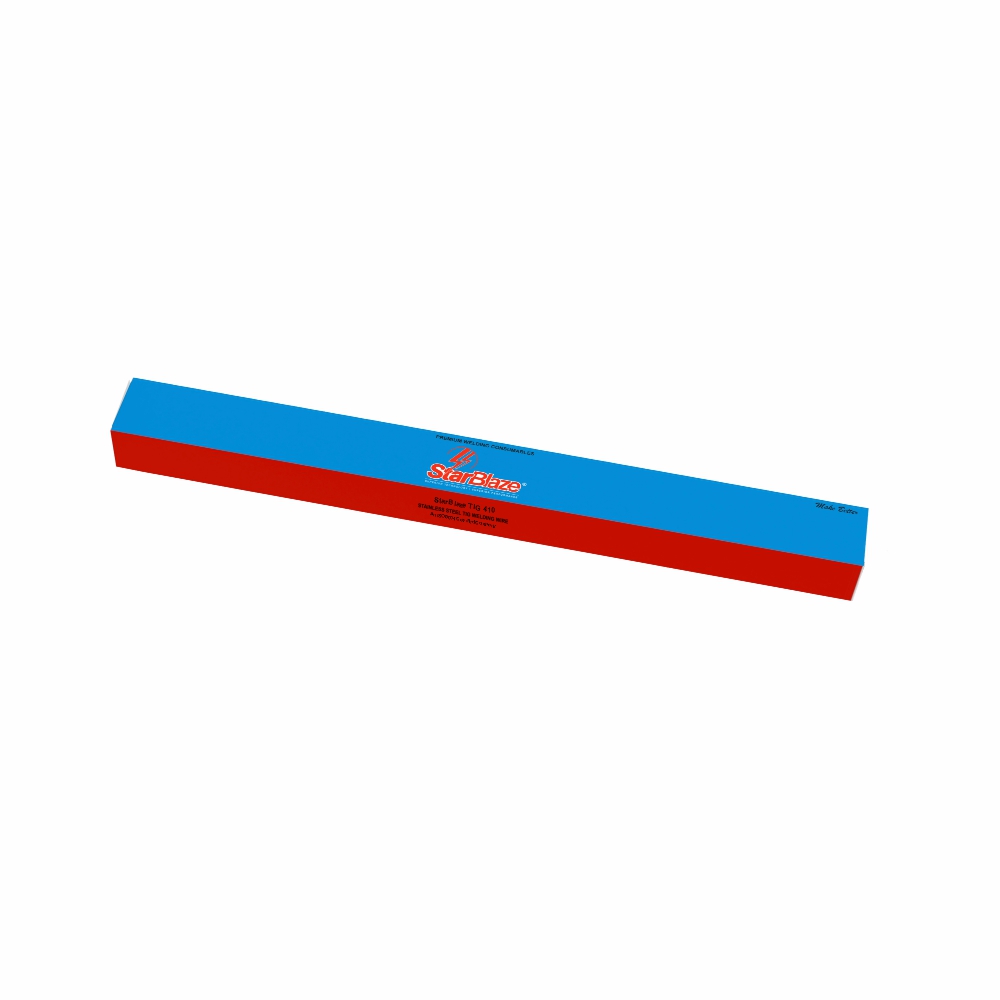

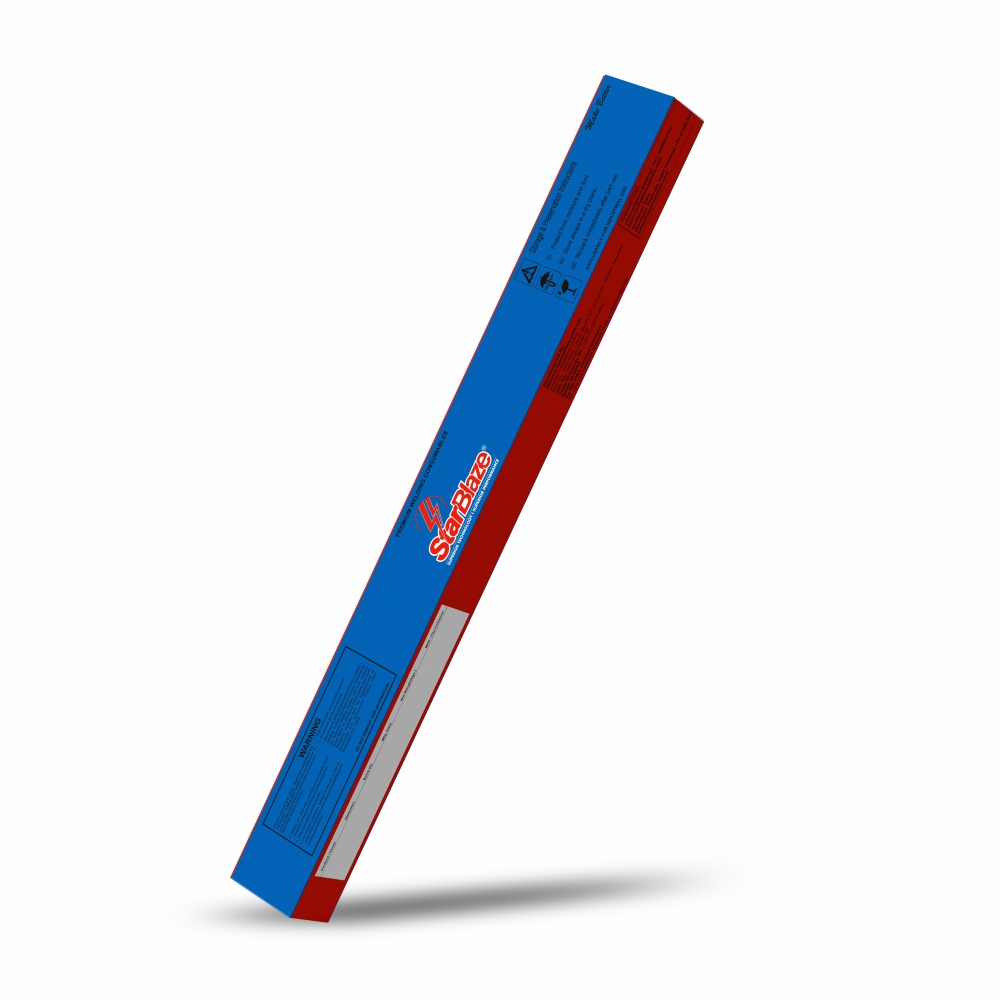

Pack Sizes: 5 kg/tube, 20 kg/box
Key Features
- C-13%Cr ferritic stainless overlay wire
- Ideal for erosion-, corrosion-, and abrasion-resistant surfaces
- Compatible with mixed shielding gases (Ar + CO₂/O₂)
- High mechanical strength and good ductility
- Smooth arc stability and consistent weld bead appearance
Industries
- Oil & Gas Industry
- Power Plant Equipment
- Construction & Infrastructure
- Mining & Earthmoving Machinery
Processes
- TIG Welding of Ferritic Stainless Overlays
- Cladding on Carbon Steel Components
- Wear-Resistant Weld Build-Ups
Additional Details
- Recommended shielding gases: 98% Ar + 2% O₂, or Ar + 0.5–5% CO₂
- Suitable for overlay welding on carbon steels and AISI 410-grade components
- Welding current: DC (–)
- Store in dry conditions; avoid condensation
- Materials to be welded:
- AISI 410
- 1.4000 (X6Cr13)
- 1.4006 (X12Cr13)
Product Details
Typical Chemical Composition (%)
| C | Mn | Si | Cr | Ni | Mo | Cu | S | P |
| 0.12 max | 0.60 max | 0.50 max | 11.50 – 13.50 | 0.60 max | 0.75 max | 0.75 max | 0.03 max | 0.03 max |
Typical All-Weld Mechanical Properties
| Yield Strength (N/mm²) | Tensile Strength (N/mm²) | Elongation A5 (%) | Impact Energy ISO-V(J) 20°C |
| ≥ 350 | ≥ 450 | ≥ 20% | ≥ 47 |
