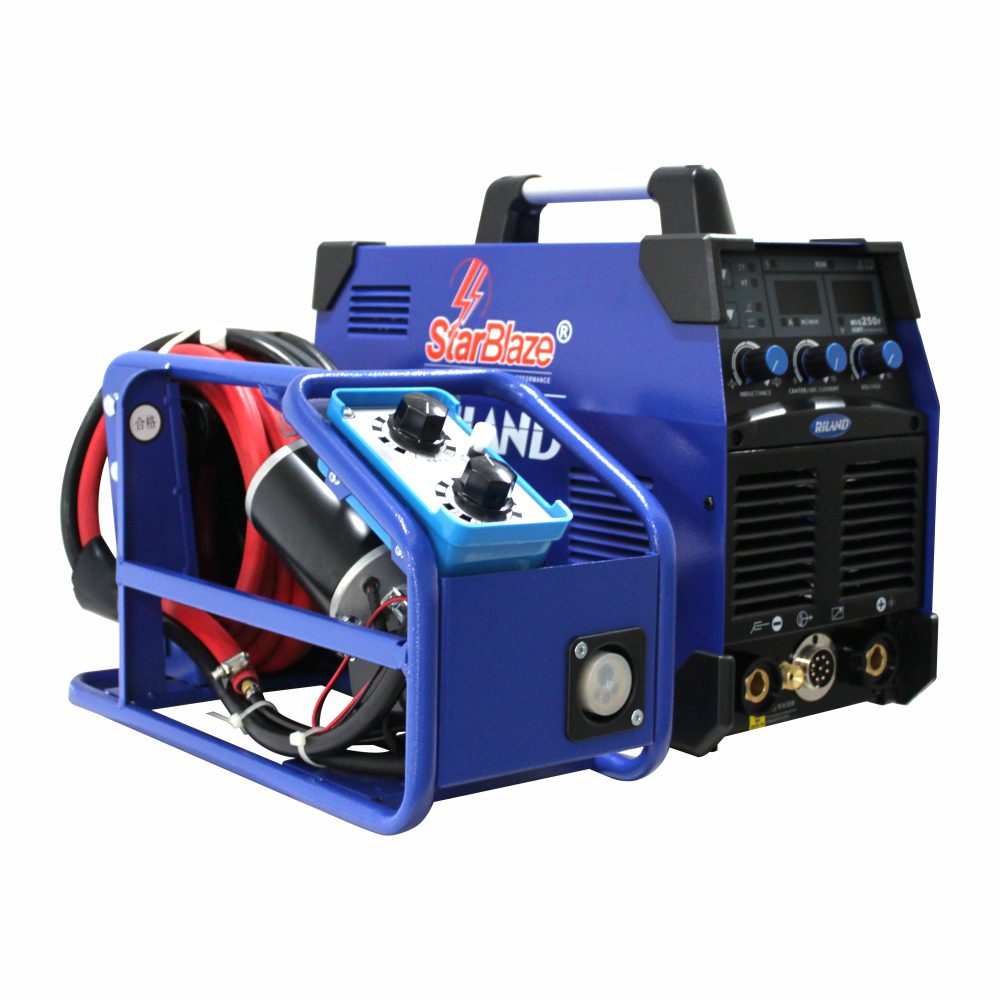

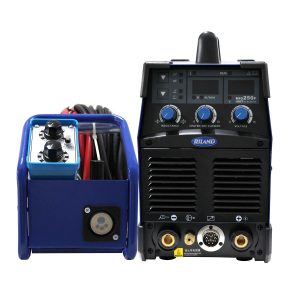

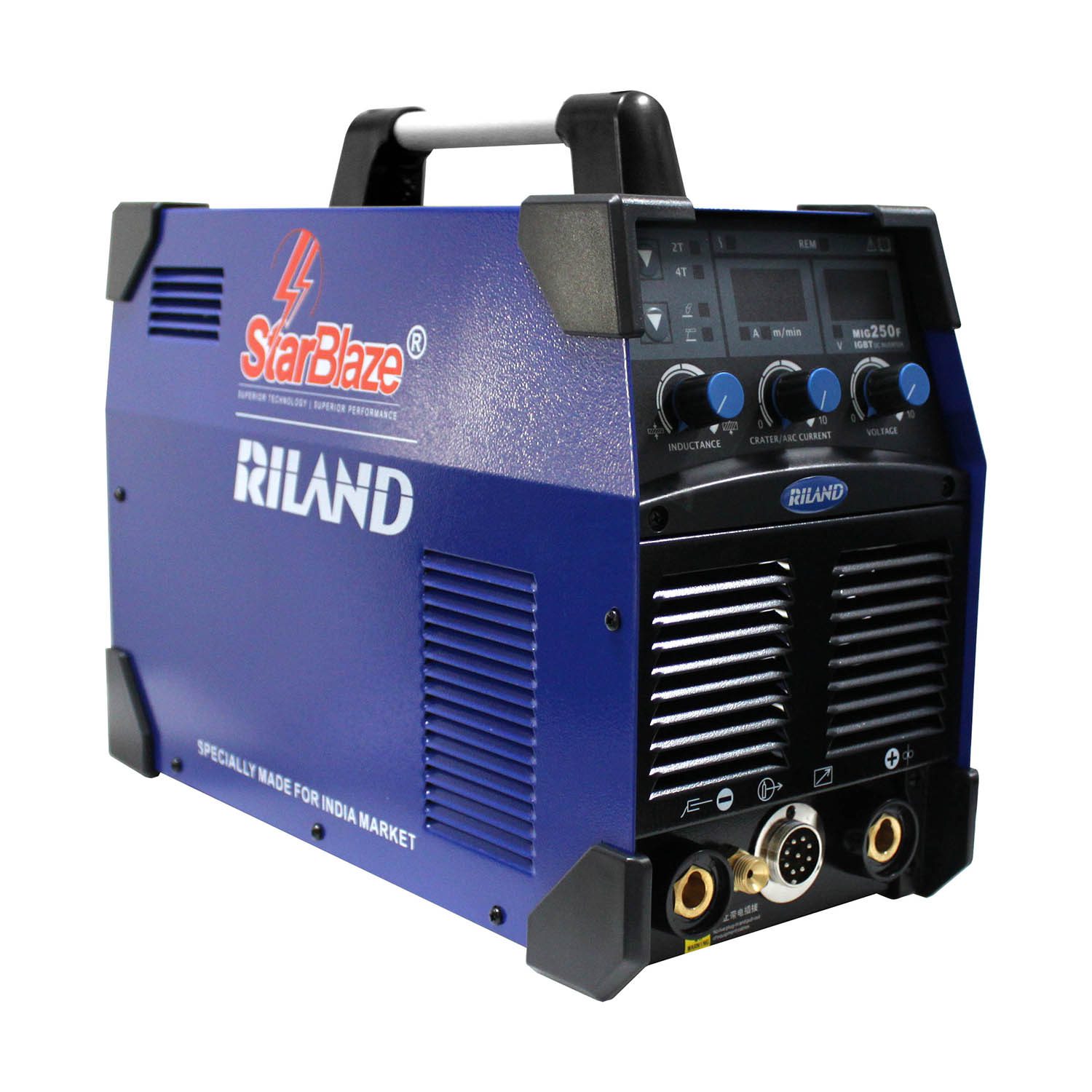

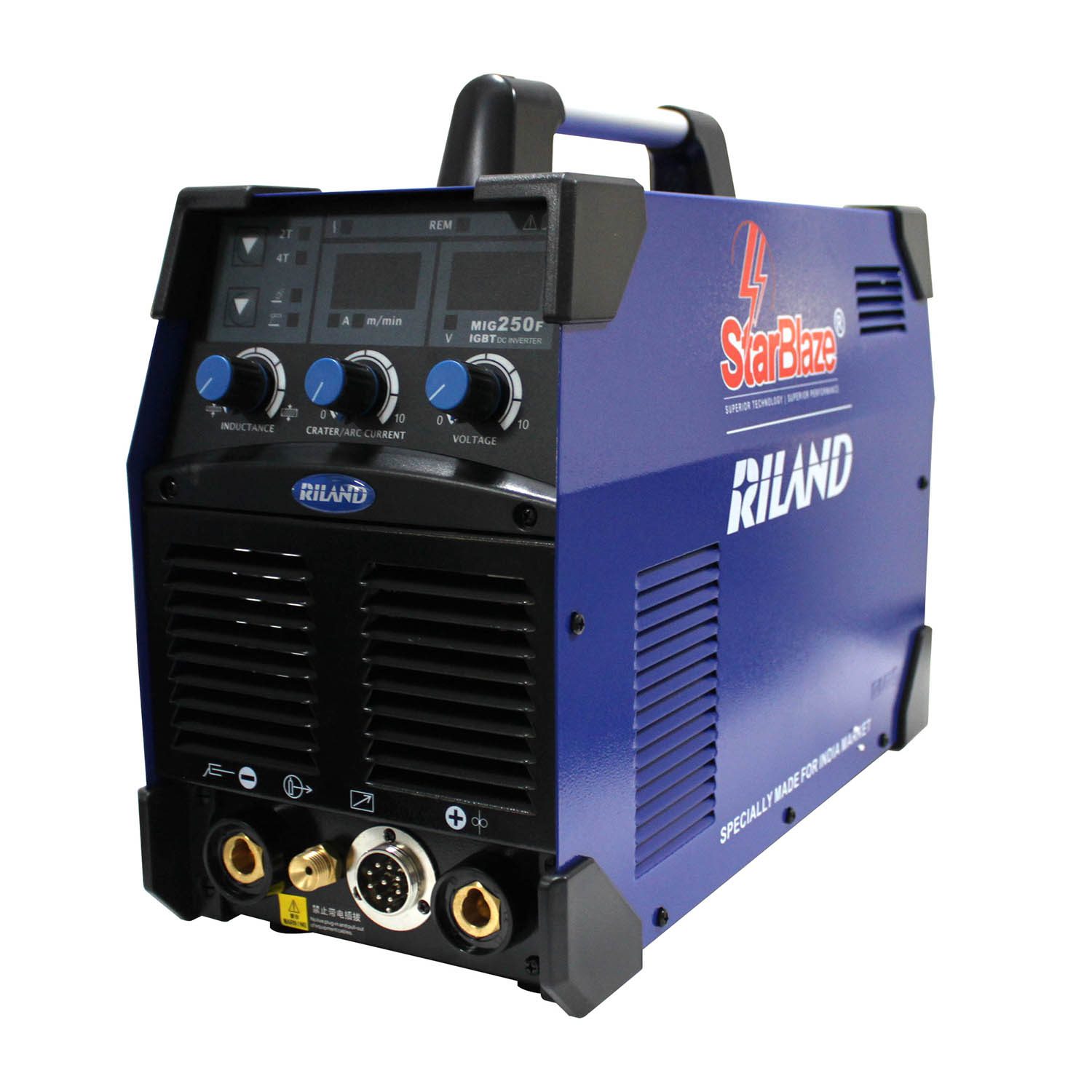

MIG 250F
The MIG 250F is a powerful, dual-process welding machine built for precision and performance in light industrial environments. Powered by advanced IGBT inverter technology, this 3-phase unit offers both MIG and MMA modes, complete with a flexible 2T/4T operation and external wire feeder with voltage/current control. Features like inductance adjustment, digital volt/amp preview, and adaptive hot start (MMA) make this machine a versatile choice for sheet metal, structural steel, and maintenance work. With a durable build and corner protection, the MIG 250F is engineered for longevity and consistent output.

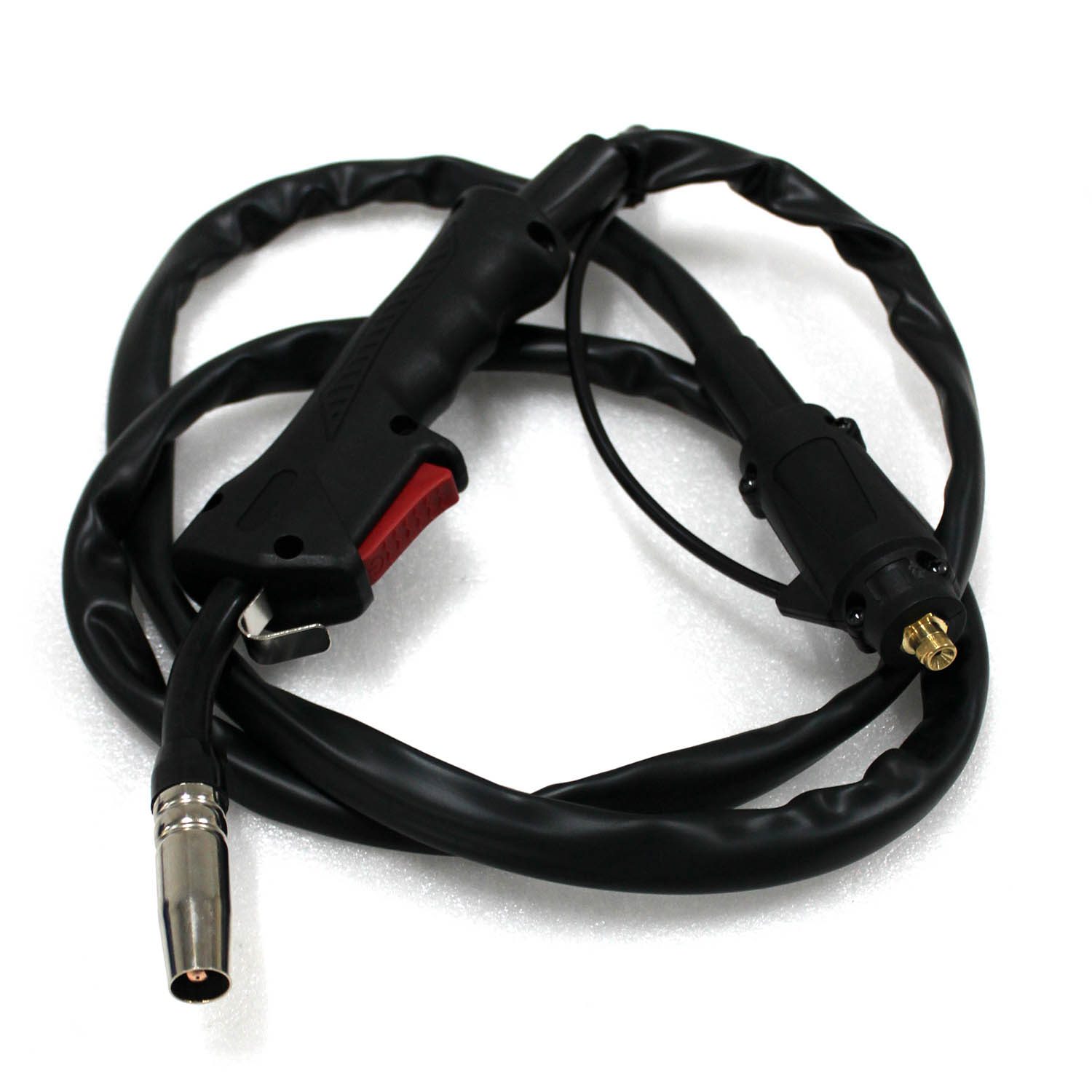

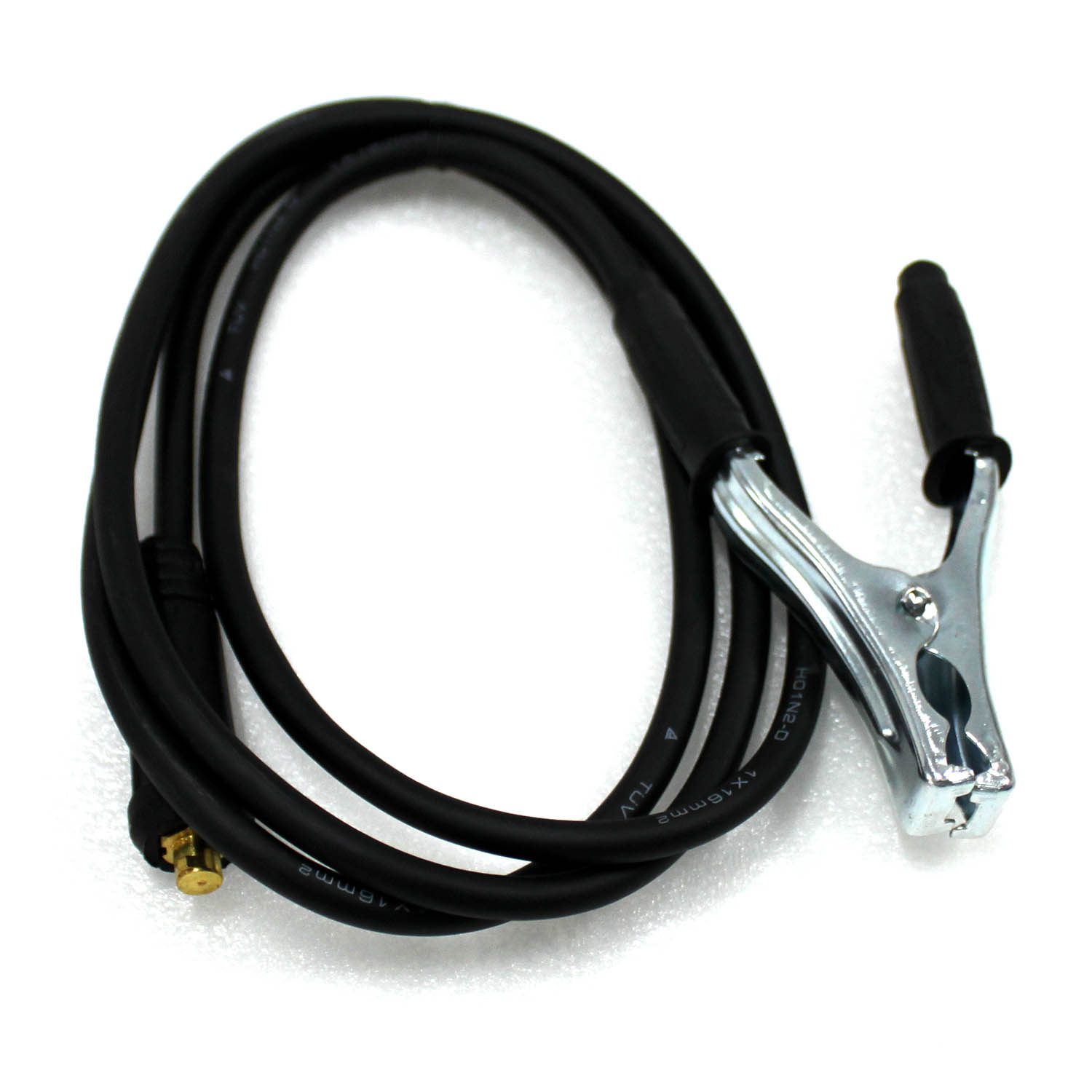

Available in Pack: Single-unit pack with inverter power source, MIG 24 torch, 3M gas hose, and 300A clamp with Euro plug.
Key Features
- Dual-process support: MIG (CV) and MMA (CC)

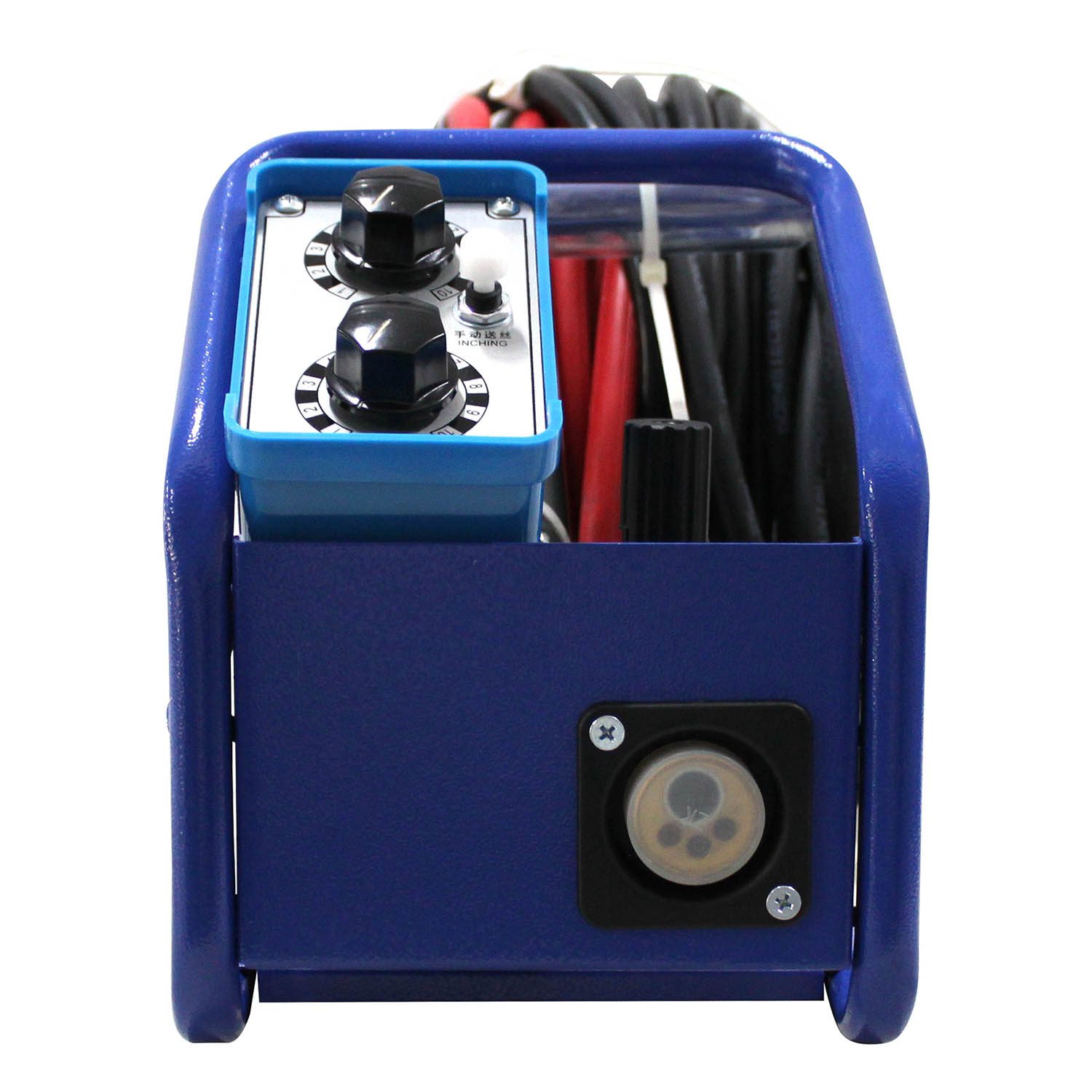

- External wire feeder with precise voltage/current controls
- 2T/4T welding modes for manual or continuous operation
- Adjustable inductance for arc shaping (MIG mode)
- Digital voltage and current meters with preview/hold
- Auto-adaptive hot start and arc force (MMA mode)
- IGBT technology with advanced arc stability
- Overload and overheat protection with dust-free cooling
- Corner-protected housing for durability
Industries
- Light Industrial Steel Structures
- Sheet Metal Processing
- Machinery & Plant Maintenance
- Fabrication & Assembly Units
- Workshops & Field Service
Processes
- MIG (Flux-Core / Gasless)
- MMA (Manual Metal Arc)
Additional Details
- Wire feed speed and voltage are pre-settable in MIG mode.
- Inductance control is ideal for welding thin sheet metal and root passes.
- Designed for 0.8, 1.0, and 1.2 mm wires; ensure compatibility with feeder.
- Store in a cool, dry place.
- Refer TDS for more information.
Product Details
| Parameter | MIG 250F |
| Input Voltage | 3P – 415V ±15% |
| Frequency (Hz) | 50/60 |
| Rated Input Current (A) | 12.8 |
| Rated Input Power (kVA) | 9.20 |
| Output Current & Voltage (MIG) | 40A/16V ~ 250A/26.5V |
| Output Current & Voltage (MMA) | 60A/22.4V ~ 250A/30V |
| No-load Voltage (V) | 61 |
| No-load Power Loss (W) | 120 |
| Wire Speed Range (m/min) | 1.5 – 22 |
| Suitable Wire Diameter (mm) | 0.8 / 1.0 / 1.2 |
| Power Factor | 0.93 |
| Efficiency | 85% |
| Housing Protection Grade | IP21 |
| Weight (kg) | 16 |
| Dimensions (mm) | 466 × 212 × 371 |
