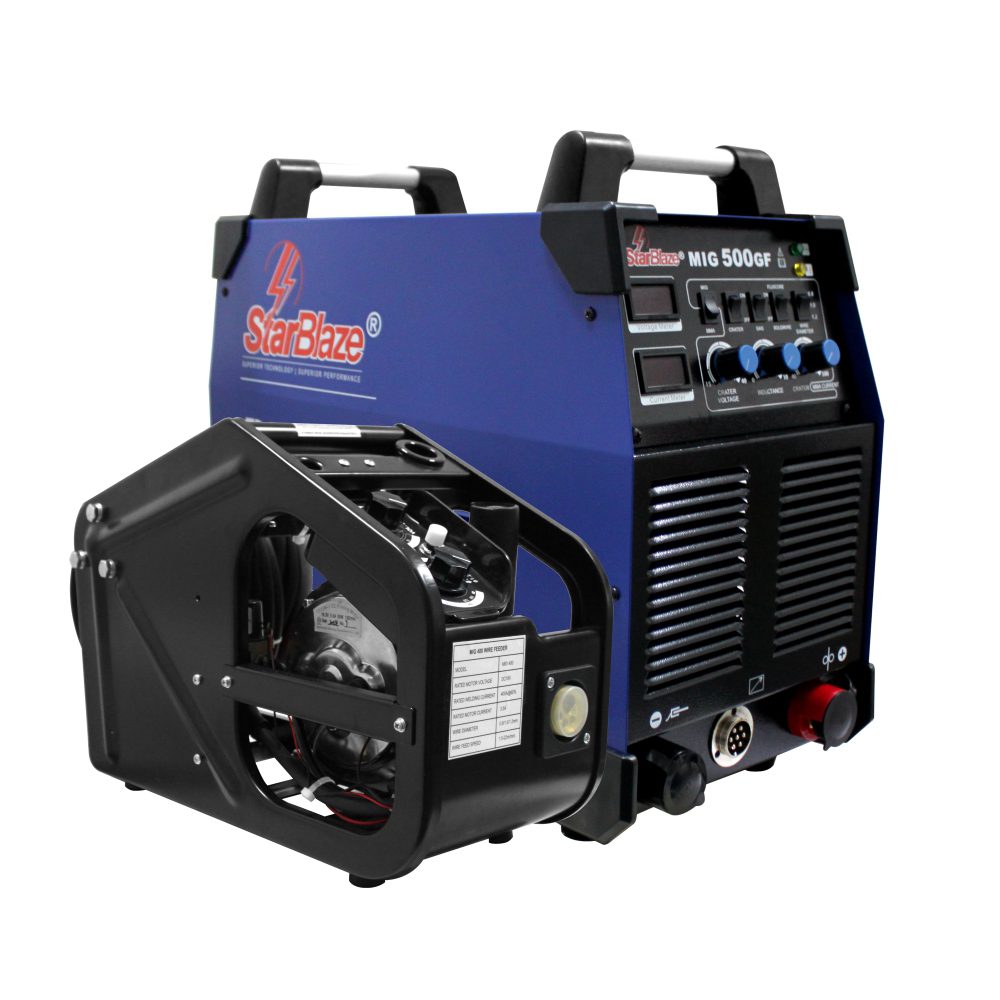

MIG 500
The MIG 500 is Starblaze’s most advanced and powerful dual-process welding machine, delivering up to 450A output for intensive industrial applications. Built with advanced IGBT inverter technology, this 3-phase MIG/MMA unit includes a fully featured external wire feeder, adjustable inductance, 2T/4T operation, crater control, and intelligent parameter presets based on wire size and type. Its digital meters, robust cooling system, and corner-protected chassis make it a reliable performer in high-load environments like equipment manufacturing and structural fabrication.
Available in Pack: Single-unit pack with inverter power source, 3 m welding torch and cable assembly, 3 m earthing cable and clamp, and wire feeder with accessories.
Key Features
- Dual-process capability: MIG (CV) and MMA (CC)
- Supports solid and flux-core wire with size selector (0.8 / 1.0 / 1.2 mm)
- External wire feeder with voltage/current and parameter presets
- Adjustable inductance and crater voltage control for arc shaping
- Digital meters with preview and hold functionality
- Intelligent wire-type-based setup for optimal welding performance
- Dust-free cooling system for higher duty cycles
- Overload and overheat protection for long operation
- Durable housing with corner guards
Industries
- Heavy Equipment Manufacturing
- Industrial Fabrication & Erection
- Structural Steel Work
- Machinery Maintenance
- Power & Infrastructure Projects
Processes
- MIG (Flux-Core / Gasless)
- MMA (Manual Metal Arc)
Additional Details
- Best suited for continuous heavy-duty welding operations requiring high amperage.
- Crater voltage and arc current can be fine-tuned for end-of-weld control.
- For optimal results, pair with compatible solid or flux-core wire as per job needs.
- Store in a cool, dry place.
- Refer TDS for more information.
Product Details
| Parameter | MIG 500 |
| Input Voltage | 3P – 415V ±15% |
| Frequency (Hz) | 50/60 |
| Rated Input Current (A) | 31.2 (MIG) / 31.8 (MMA) |
| Rated Input Power (kVA) | 22.4 (MIG) / 22.85 (MMA) |
| Output Current & Voltage (MIG) | 60A/17V ~ 450A/36.5V |
| Output Current & Voltage (MMA) | 60A/22.4V ~ 450A/38V |
| No-load Voltage (V) | 61 |
| No-load Power Loss (W) | 190 |
| Wire Speed Range (m/min) | 1.5 – 22 |
| Suitable Wire Diameter (mm) | 0.8 / 1.0 / 1.2 |
| Power Factor | 0.93 |
| Efficiency | 85% |
| Housing Protection Grade | IP21 |
| Weight (kg) | 30 |
| Dimensions (mm) | 526 × 272 × 468 |
