MIG 400

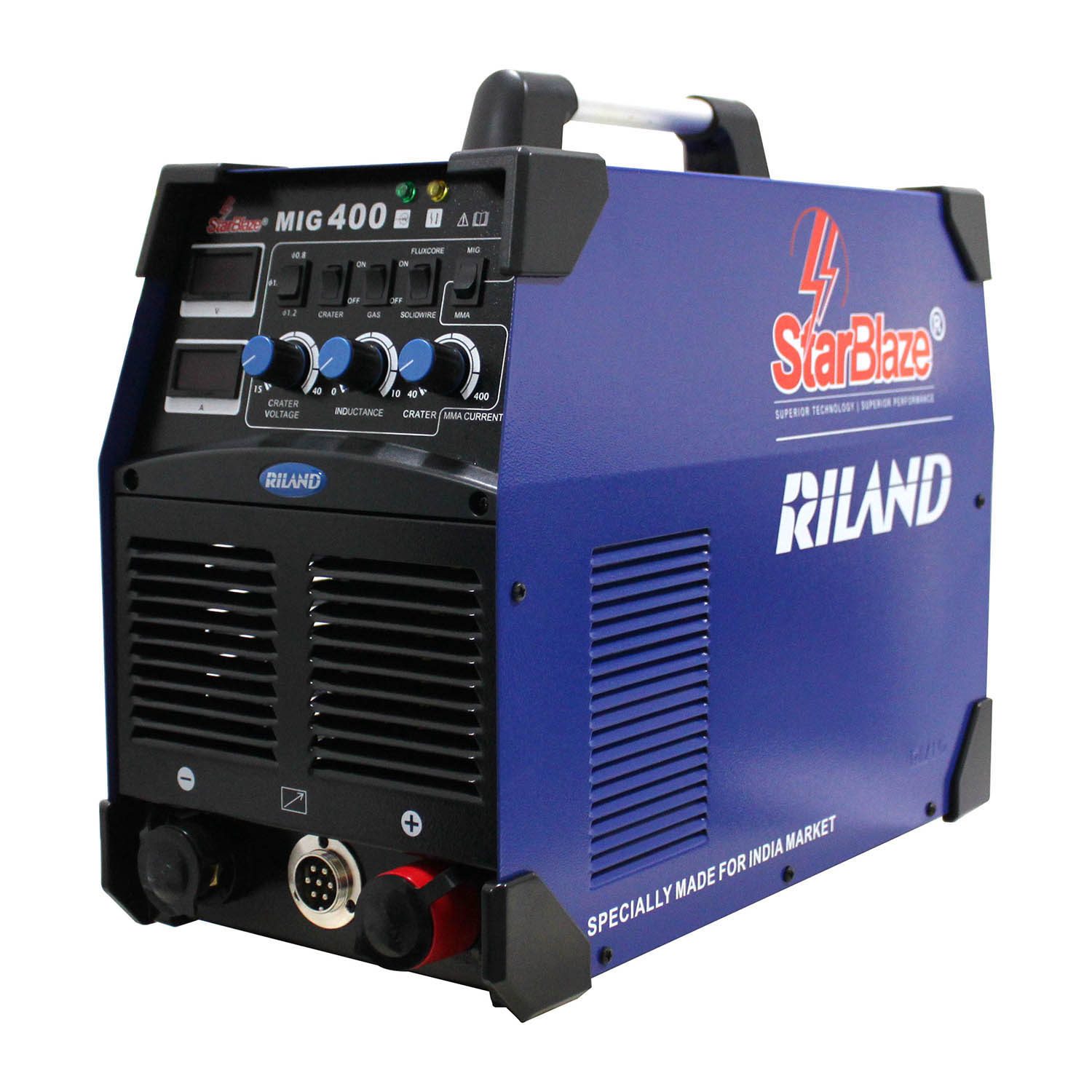

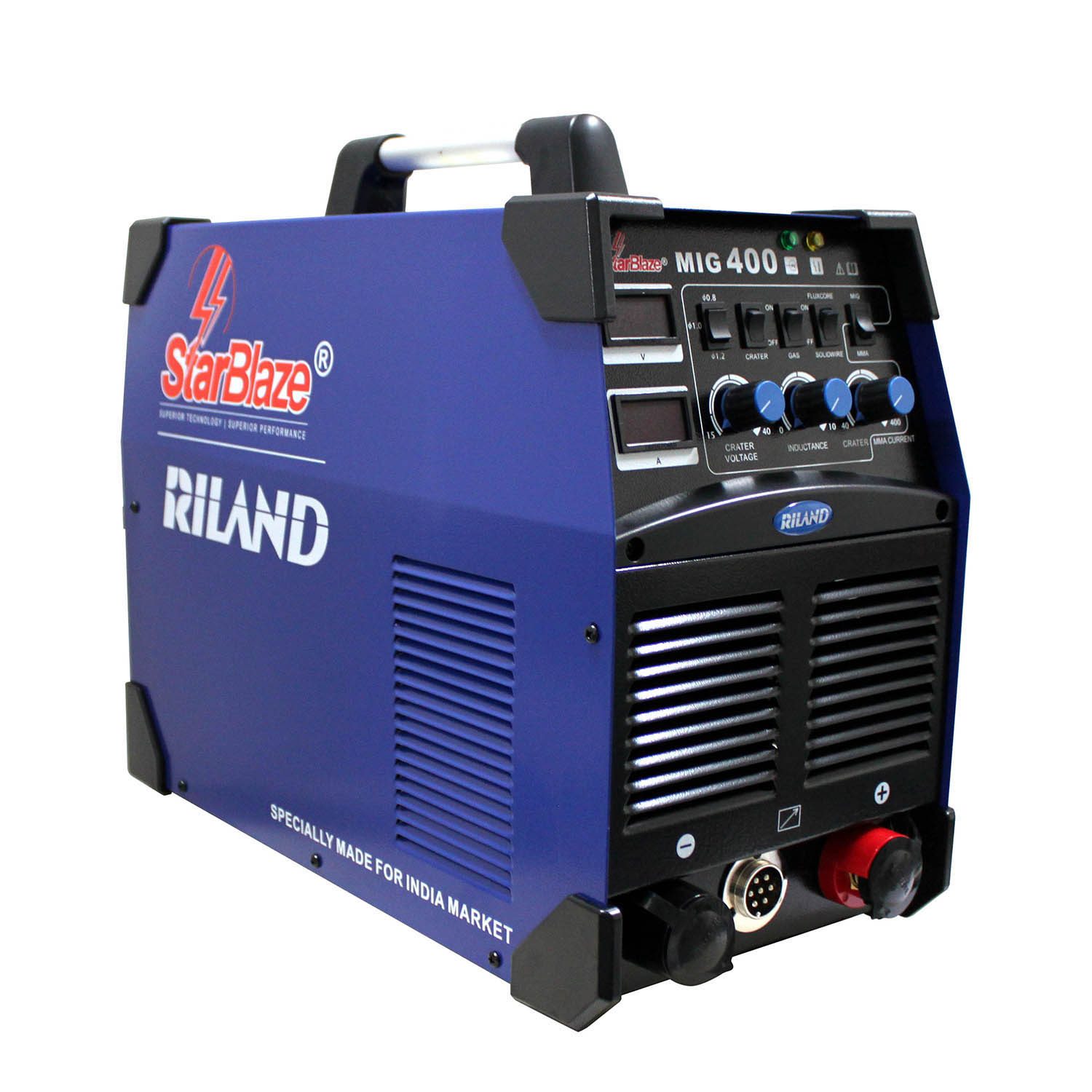

The MIG 400 is a professional-grade dual-process welding machine designed for high-capacity industrial use. With an output of up to 400A, it supports both MIG and MMA welding processes and features advanced IGBT inverter technology for superior arc stability. It includes adjustable inductance, 2T/4T operation, and a separate external wire feeder with voltage and current control. Equipped with digital meters, overload protection, and a dust-free cooling system, the MIG 400 is engineered to handle demanding fabrication and equipment manufacturing tasks with reliability and ease.

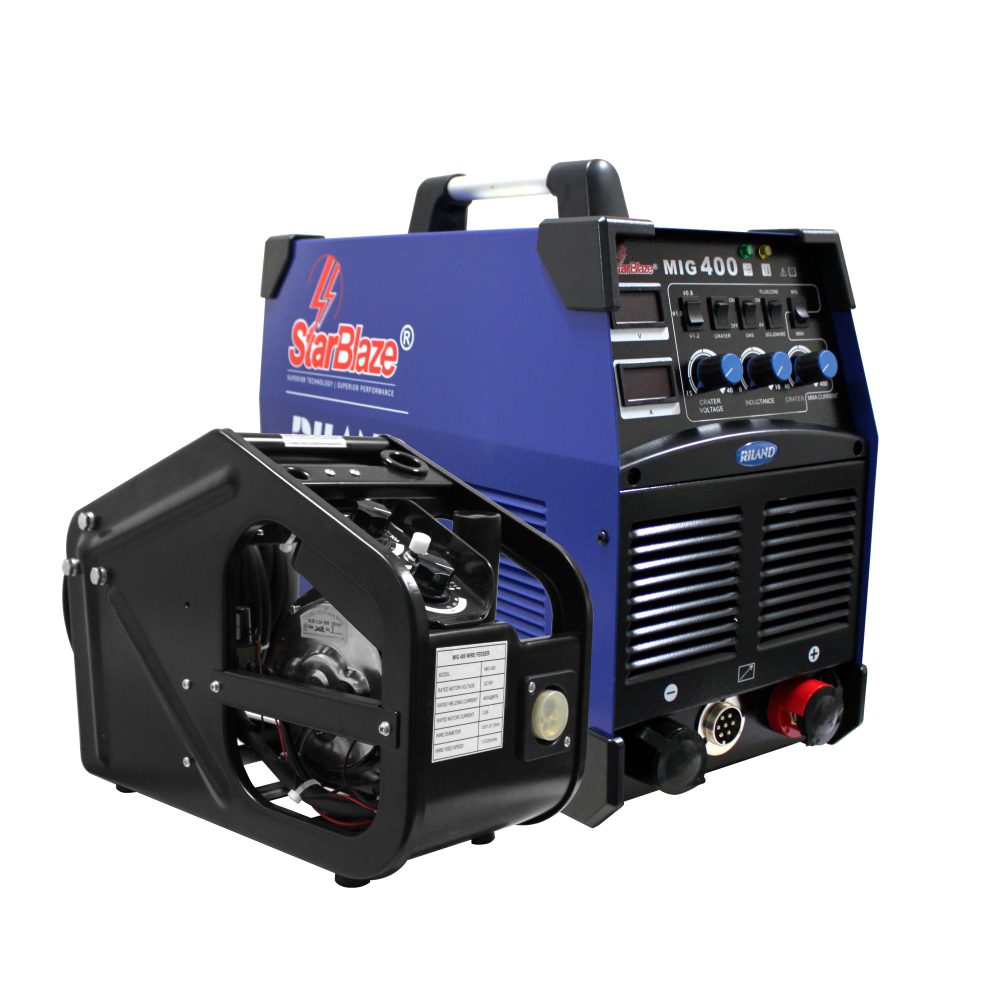

Available in Pack: Single-unit pack with inverter power source, 3 m MIG torch and cable assembly, 3 m earthing cable and clamp, wire feeder, and accessories.
Key Features
- Dual-process functionality: MIG (CV) and MMA (CC)

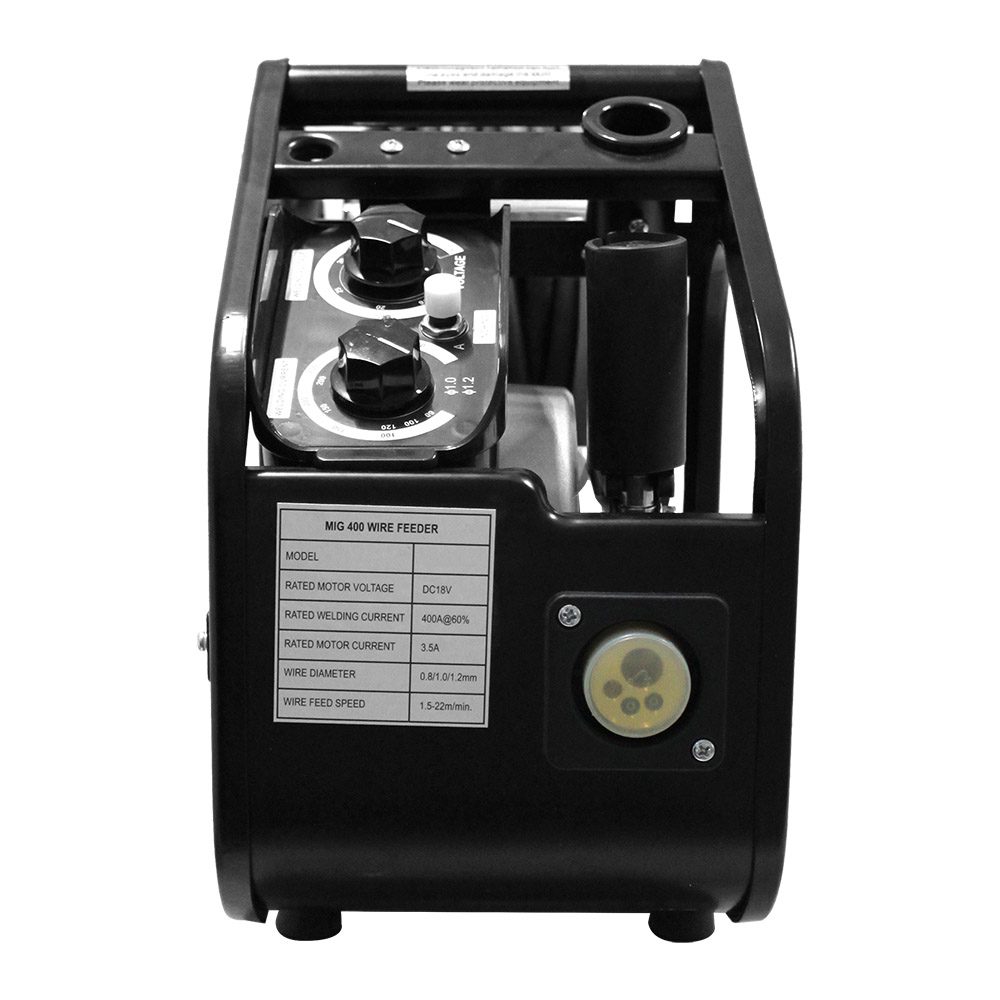

- External wire feeder with precision voltage/current control
- 2T/4T modes for spot and continuous welding
- Adjustable inductance for better arc shaping

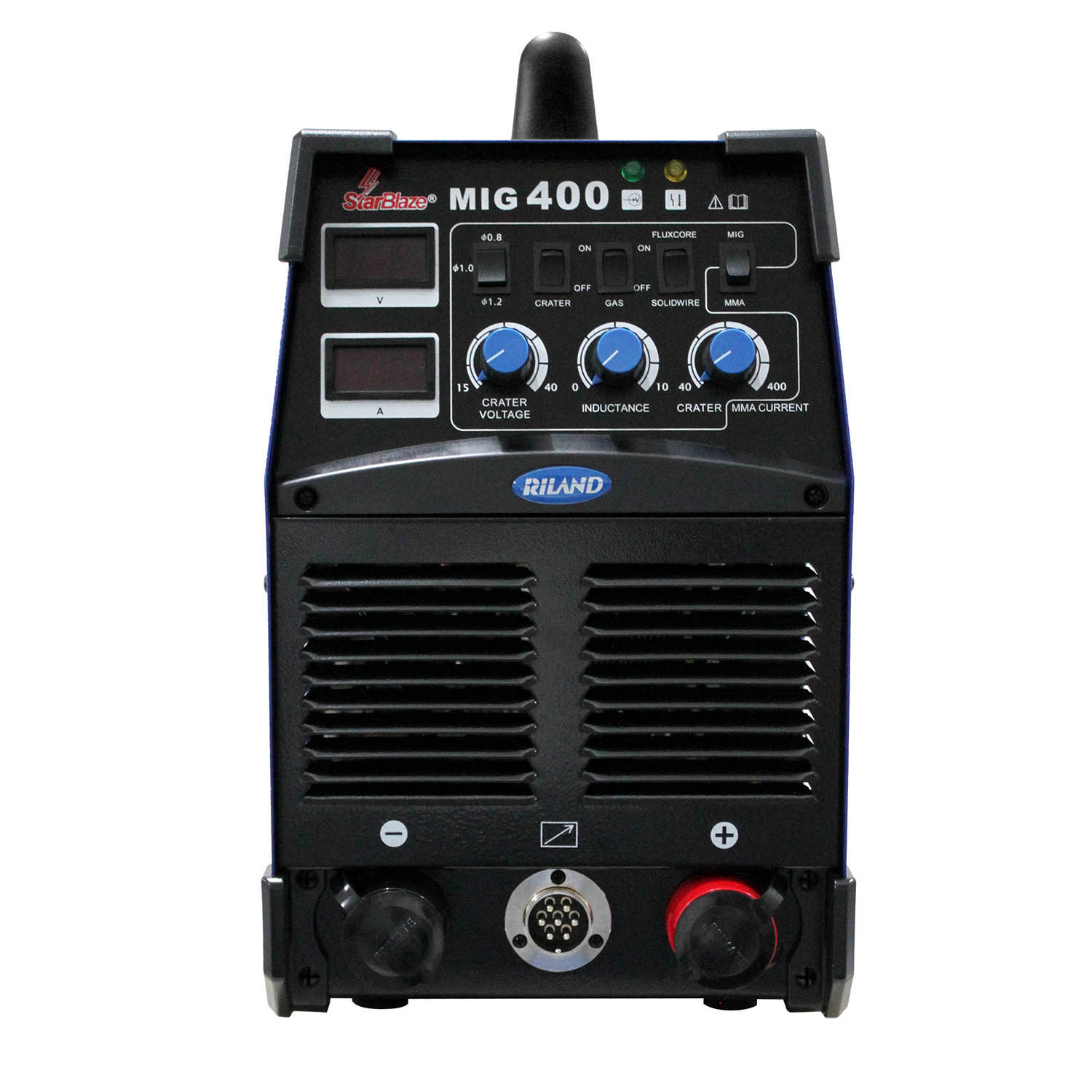

- Digital meters for preview and hold of voltage and current
- Dust-free cooling system for longer duty cycles
- IGBT inverter for energy efficiency and stable output
- Corner-protected housing for enhanced durability
- Suitable for 0.8, 1.0, and 1.2 mm wires
Industries
- Equipment Manufacturing
- Industrial Steel Structures
- Fabrication Workshops
- Maintenance & Repair
- Plant & Machinery Assembly
Processes
- MIG (Flux-Core / Gasless)
- MMA (Manual Metal Arc)
Additional Details
- Use the inductance setting to control spatter on thin sheets or optimize penetration on thicker jobs.
- Ensure proper setup of external wire feeder for best results in continuous welding.
- Designed for industrial fabrication; ensure appropriate ventilation and grounding.
- Store in a cool, dry place.
- Refer TDS for more information.
Product Details
| Parameter | MIG 400 |
| Input Voltage | 3P – 415V ±15% |
| Frequency (Hz) | 50/60 |
| Rated Input Current (A) | 19.2 (MIG) / 21.1 (MMA) |
| Rated Input Power (kVA) | 13.8 (MIG) / 15.2 (MMA) |
| Output Current & Voltage (MIG) | 60A/17V ~ 400A/34V |
| Output Current & Voltage (MMA) | 40A/21.6V ~ 400A/36V |
| No-load Voltage (V) | 66 |
| No-load Power Loss (W) | 120 |
| Wire Speed Range (m/min) | 1.5 – 22 |
| Suitable Wire Diameter (mm) | 0.8 / 1.0 / 1.2 |
| Power Factor | 0.93 |
| Efficiency | 85% |
| Housing Protection Grade | IP21 |
| Weight (kg) | 21 |
| Dimensions (mm) | 485 × 238 × 378 |
