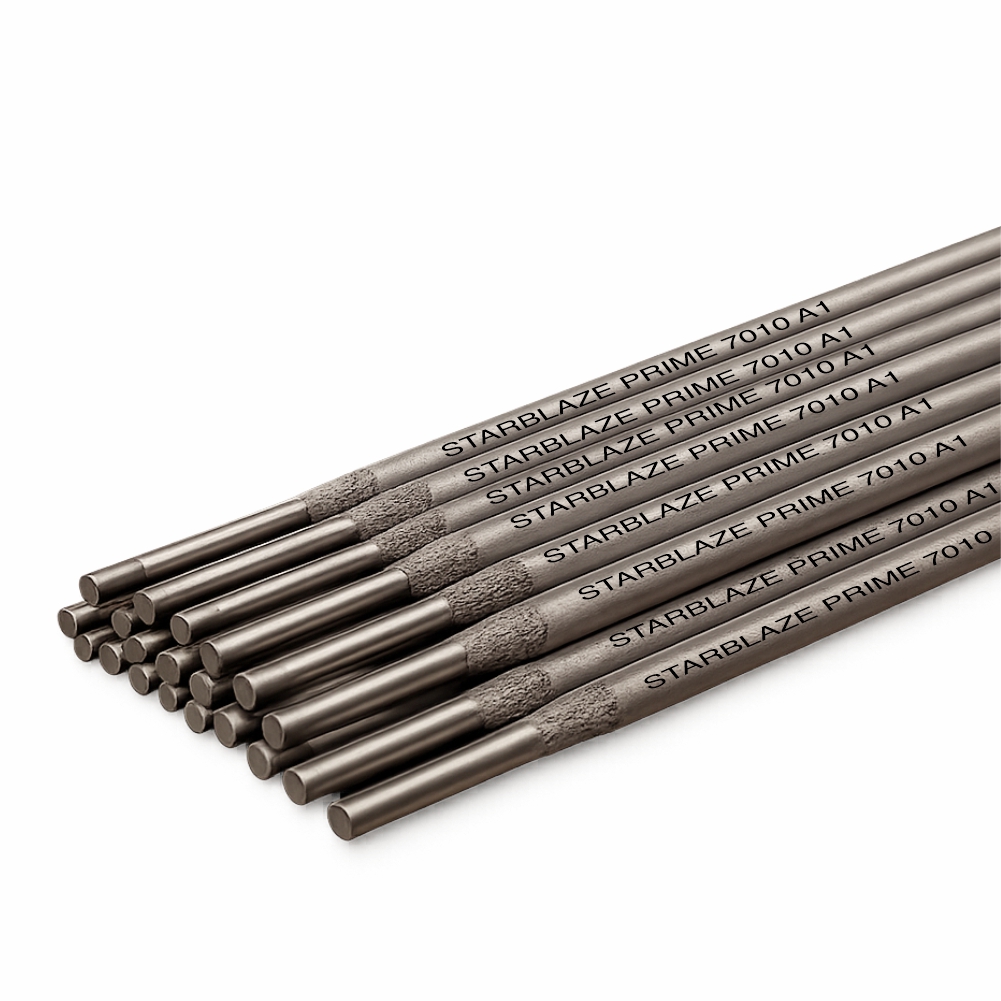

STARBLAZE PRIME 7010 A1
AWS A5.5: E 7010-A1 | EN ISO 2560-A: E 42 Z Mo C 2 1
Pipeline Welding, Deep Penetration, Radiographic Quality Welds
A cellulosic coated low alloy steel electrode specially designed for welding steels containing 0.50% molybdenum and high-strength pipeline steels. StarBlaze PRIME 7010-A1 delivers excellent all-position welding performance, including vertical-down welding, making it ideal for pipeline construction and field welding applications. The electrode produces a forceful arc with deep penetration and a fast-freezing weld puddle, ensuring excellent root pass and capping run performance. It offers outstanding mechanical properties and consistently produces radiographic quality weld deposits.
Available Packs
Dimensions: 2.40 mm x 350 mm, 3.20 mm x 350 mm, 4.00 mm x 450 mm, 4.80 mm x 450 mm
Pack Sizes: 2.5 Kg Pouch, 4 Kg Box, 5 Kg Box
Master Box: 20 Kg, 30 Kg, 40 Kg, Customisable packaging available on request
Excellent all-position welding characteristics
Suitable for vertical-down welding
Deep penetrating arc
Fast-freezing weld puddle
Ideal for root pass welding
Excellent capping run performance
Radiographic quality weld deposits
Excellent mechanical properties
Suitable for field welding conditions
Designed for high-strength pipe welding
Suitable for DC+ polarity
Pipeline Construction
Oil & Gas Industry
Cross-Country Pipeline Projects
Petrochemical Industry
Power Generation Projects
Pressure Piping Fabrication
Infrastructure Projects
Heavy Engineering Industries
Manual Metal Arc Welding (MMA/SMAW)
Pipeline root pass welding
Pipeline fill and cap welding
Vertical-down welding applications
Field erection welding
Pressure piping fabrication
Structural welding of low alloy steels
Designed for welding steels containing approximately 0.50% molybdenum
Excellent choice for pipeline welding applications
Produces X-ray quality weld deposits
Suitable for root passes and capping runs
Excellent performance in all welding positions including vertical-down
Suitable for S235JR, S275JR, S235J2G3, S275J2G3 and S355J2G3 steels
Suitable for P235GH and P265GH pressure vessel steels
Suitable for L210 to L415NB pipeline steels
Suitable for L290MB to L415MB pipeline grades
Suitable for P355T1, P235T2 to P355T2 grades
Keep dry and avoid condensation
Re-drying generally not required
If necessary, re-dry at 70°C for 30 minutes (one time only)
Product Details
Typical Chemical Composition (%)
| C | Si | Mn | Mo | S | P |
| 0.10 | 0.25 | 0.50 | 0.50 | 0.015 | 0.020 |
Typical Mechanical Properties (All Weld Metal)
| Heat Treatment | Tensile Strength Rm (N/mm²) | Yield Strength Rp (N/mm²) | Elongation A5 (%) | Charpy Impact Value ISO-V (J) at RT |
| PWHT 620°C (±15°C) / 1 Hour | 500 – 600 | 400 – 500 | ≥ 24 | 100 |
Recommended Welding Parameters
| Diameter (mm) | Amperage Range (A) |
| 2.40 | 40-70 |
| 3.20 | 80-110 |
| 4.00 | 120-160 |
| 4.80 | 130-170 |
