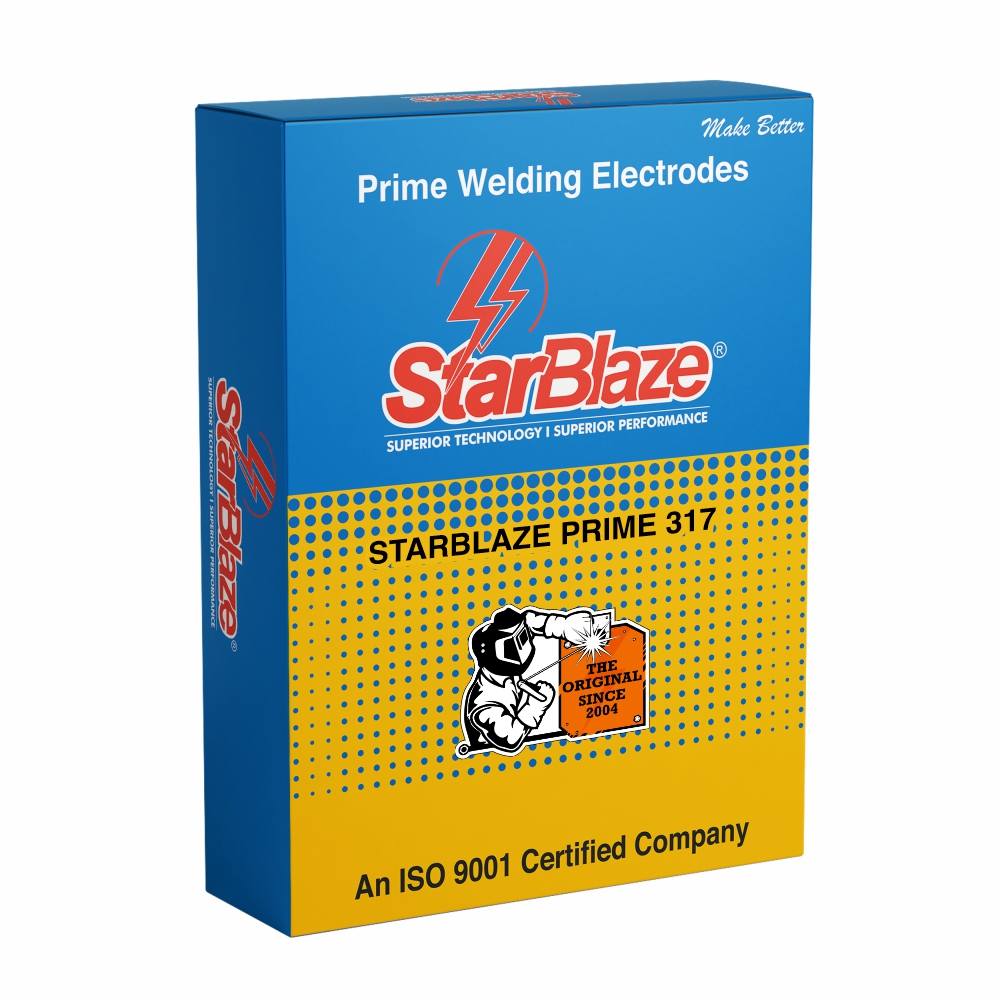

STARBLAZE PRIME 317
AWS A5.4: E 317-16 | DIN EN 1600: E 19 13 4 N R 32 | Werkstoff Nr. 1.4438
Superior Acid Resistance, High Molybdenum Content, Excellent Corrosion Protection
A rutile semi-basic stainless steel electrode specially designed for welding austenitic stainless steels containing 16–20% chromium, 10–14% nickel, and 3–4% molybdenum, including AISI 317 grades. StarBlaze PRIME 317 provides excellent resistance to corrosive environments containing sulphuric acid, sulphurous acid, and their salts. It delivers excellent weldability, a smooth stable arc, finely rippled weld beads, and self-releasing slag, making it ideal for corrosion-resistant fabrication in demanding chemical processing applications.
Available Packs
Dimensions: 2.50 mm x 350 mm, 3.15 mm x 350 mm, 4.00 mm x 350 mm, 5.00 mm x 450 mm
Pack Sizes: 2.5 Kg Vacuum Pack, 4 Kg Vacuum Pack, 5 Kg Vacuum Pack
Master Box: 20 Kg, 30 Kg, 40 Kg, Customisable packaging available on request
High molybdenum stainless steel weld deposit
Excellent resistance to sulphuric acid environments
Superior resistance to sulphurous acid attack
Excellent corrosion resistance
Smooth and stable arc characteristics
Finely rippled weld bead appearance
Self-releasing slag
Excellent weldability
Low spatter operation
Good mechanical properties
Ferrite content of 5–8%
Suitable for AC and DC+ polarity
Chemical Processing Plants
Fertilizer Manufacturing
Petrochemical Industry
Pulp and Paper Industry
Pharmaceutical Manufacturing
Food Processing Equipment
Process Equipment Fabrication
Corrosion-Resistant Plant Construction
Manual Metal Arc Welding (MMA/SMAW) of austenitic stainless steels
Fabrication of corrosion-resistant vessels and tanks
Chemical process piping welding
Maintenance and repair of stainless steel equipment
Pressure vessel fabrication
Process plant construction
Designed for welding AISI 317L and AISI 317LN stainless steels
Suitable for Material No. 1.4434 (X2CrNiMoN18-12-4)
Suitable for Material No. 1.4438 (X2CrNiMo18-15-4)
Suitable for Material No. 1.4429 (X2CrNiMoN17-13-3)
Recommended for applications exposed to sulphuric and sulphurous acid environments
Ferrite content maintained between 5–8%
Maintain interpass temperature below 200°C
Re-dry at 300°C for 1 hour if necessary
Excellent weld appearance with easy slag removal
Suitable for demanding corrosion-resistant fabrication
Product Details
Typical Chemical Composition (%)
| C | Mn | Si | S | P | Cr | Ni | Mo | Ferrite |
| 0.045 | 0.80 | 0.85 | 0.012 | 0.018 | 19.50 | 13.00 | 3.50 | 5 – 8 |
Typical Mechanical Properties (All Weld Metal)
| Yield Strength Rp (N/mm²) | Tensile Strength Rm (N/mm²) | Elongation A5 (%) | Charpy Impact Value ISO-V J +20°C |
| > 400 | 590 | 36 | 50 |
Recommended Welding Parameters
| Diameter (mm) | Amperage Range (A) |
| 2.50 | 50-80 |
| 3.15 | 80-110 |
| 4.00 | 120-150 |
| 5.00 | 150-180 |
