StarBlaze PRIME 2209
AWS A5.4: E2209-16 | DIN EN ISO 3581-A: E 22 9 3 N LR 12 | Werkstoff Nr. 1.4462
Excellent Corrosion Resistance, Superior Weldability, Duplex Stainless Steel Welding
A rutile-basic coated 22-9-3-N type non-synthetic electrode specially designed for welding corrosion-resistant duplex stainless steels. StarBlaze PRIME 2209 offers excellent resistance to intergranular corrosion, pitting corrosion, and stress corrosion cracking. The low carbon weld deposit ensures superior weldability, a smooth spatter-free arc, excellent bead appearance, and a balanced austenitic-ferritic microstructure with ferrite content of approximately 40–45%. Vacuum-packed for optimum moisture protection and consistent welding performance.
Available Packs
Dimensions: 2.50 mm x 350 mm, 3.15 mm x 350 mm, 4.00 mm x 350 mm, 5.00 mm x 450 mm

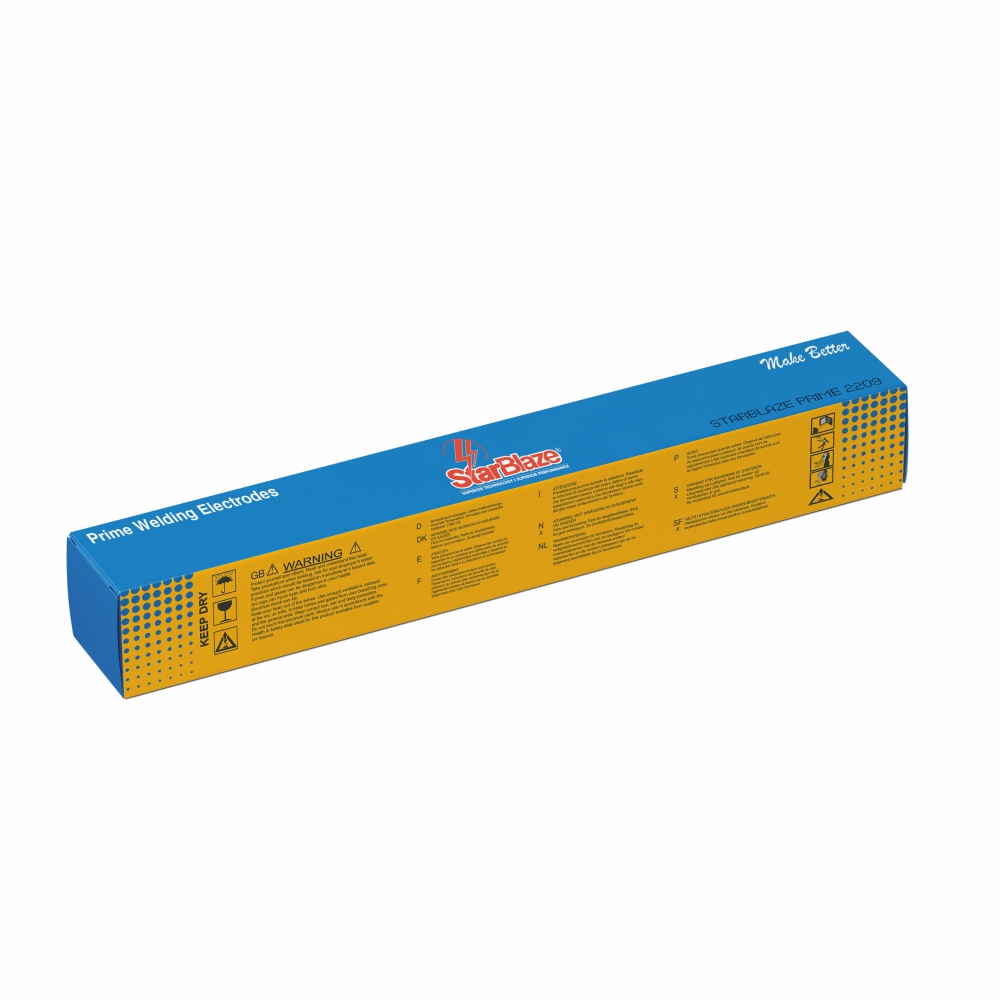

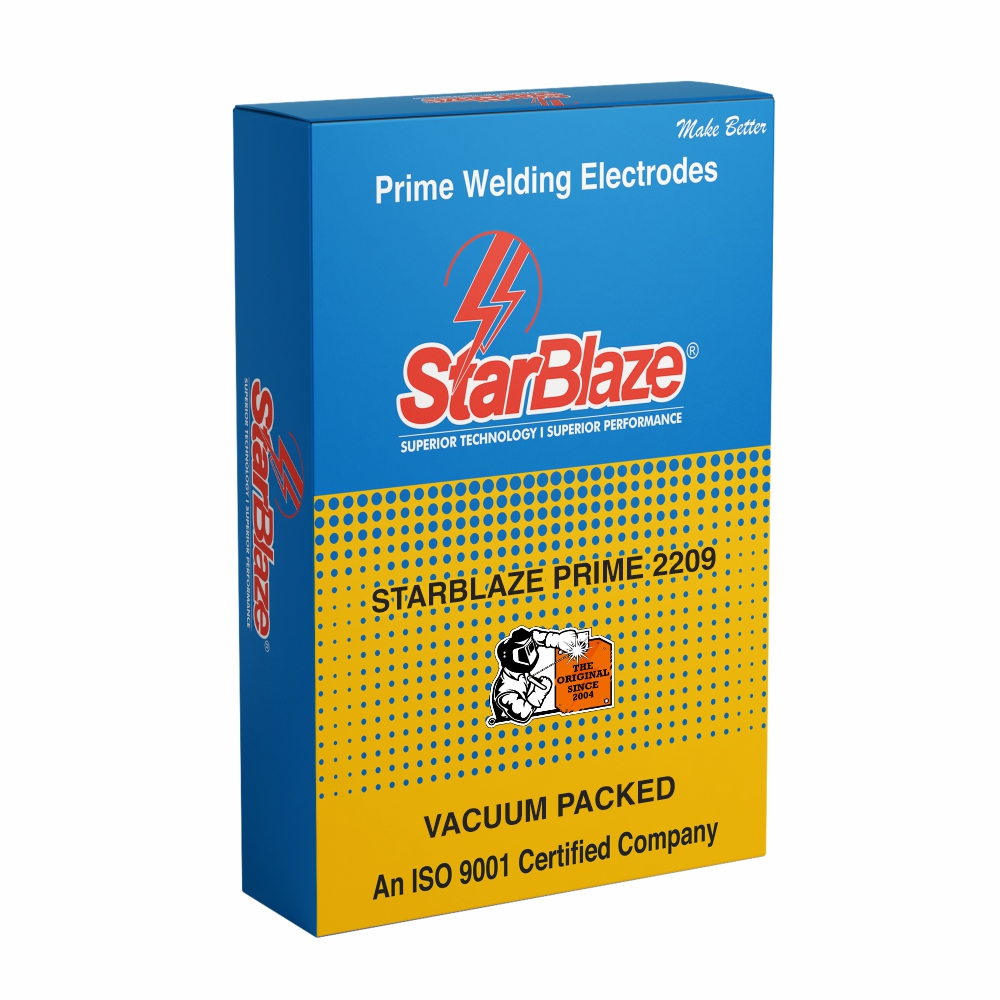

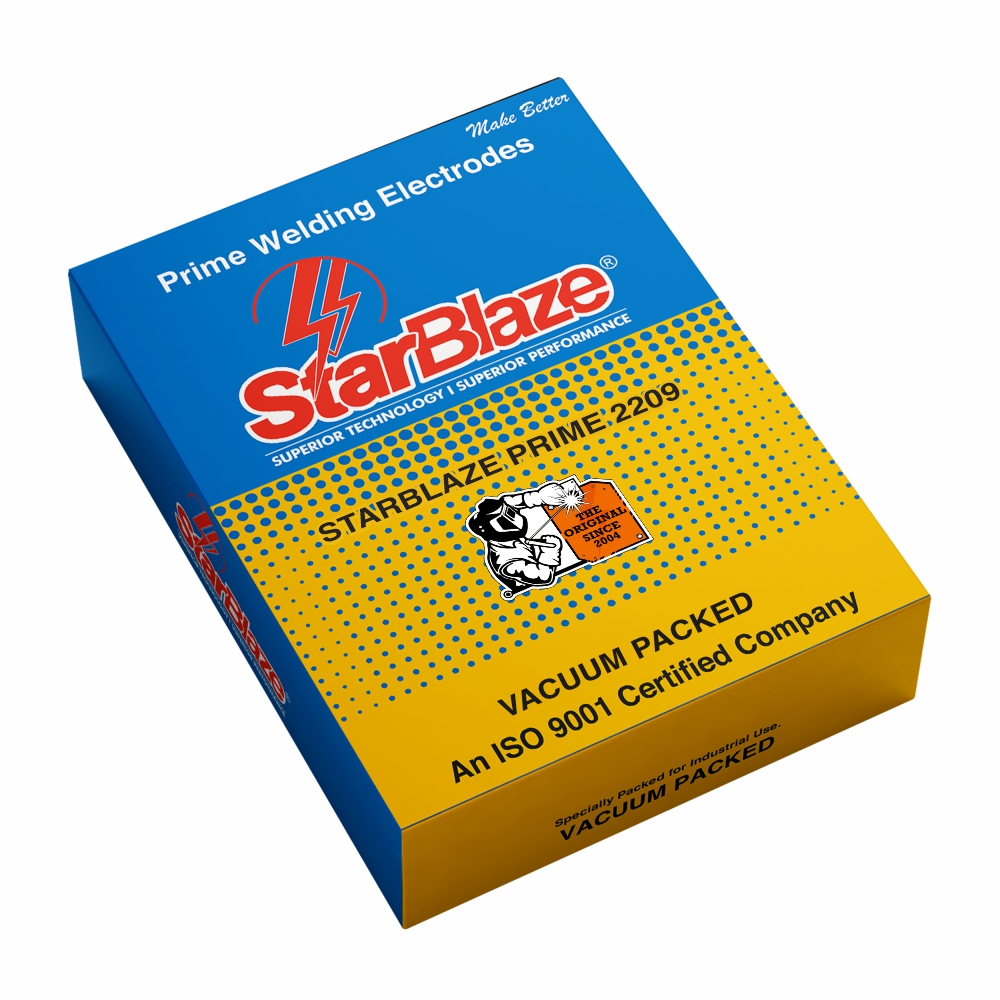

Pack Sizes: 2.5 Kg Vacuum Pack, 4 Kg Vacuum Pack, 5 Kg Vacuum Pack
Master Box: 20 Kg, 30 Kg, 40 Kg, Customisable packaging available on request
Excellent resistance to intergranular corrosion
Superior pitting corrosion resistance
Excellent resistance to stress corrosion cracking
Low carbon weld deposit
Spatter-free arc characteristics
Smooth and attractive weld bead appearance
Excellent weldability
Balanced duplex microstructure
Ferrite content of approximately 40–45%
Vacuum packed for moisture protection
Suitable for AC and DC+ polarity
Chemical Processing Plants
Oil & Gas Industry
Petrochemical Plants
Desalination Facilities
Marine and Offshore Structures
Pulp and Paper Industry
Power Generation Plants
Process Equipment Manufacturing
Manual Metal Arc Welding (MMA/SMAW) of duplex stainless steels
Fabrication of corrosion-resistant process equipment
Pressure vessel fabrication
Pipework and process piping welding
Maintenance and repair of duplex stainless steel components
Chemical and marine equipment fabrication
Designed for welding duplex stainless steels and corrosion-resistant alloys
Suitable for Material No. 1.4460 (X4 CrNiMoN 27 5 2)
Suitable for Material No. 1.4462 (X2 CrNiMoN 22 5 3)
Suitable for Material No. 1.4463 (G-X6 CrNiMo 24 8 2)
Suitable for Material No. 1.4582 (X4 CrNiMoNb 25 7)
Austenitic weld metal contains approximately 40–45% ferrite
Keep electrodes dry and avoid condensation
Re-drying is generally not required
If necessary, re-dry at 350°C for 1 hour (maximum 3 cycles)
Supplied in vacuum-packed packaging for enhanced storage life
Tags
E2209-16, duplex stainless steel electrode, duplex welding electrode, corrosion resistant electrode, pitting resistant welding electrode, stress corrosion resistant weld metal, stainless steel welding rod, duplex steel fabrication, offshore welding electrode, chemical plant welding, SMAW duplex electrode
Product Details
Typical Chemical Composition (%)
| C | Mn | Si | Cr | Ni | Mo | P | S | N |
| 0.025 | 0.90 | 0.85 | 22.50 | 9.50 | 3.00 | 0.012 | 0.006 | 0.14 |
Typical Mechanical Properties (All Weld Metal)
| Yield Strength Rp (N/mm²) | Tensile Strength Rm (N/mm²) | Elongation A5 (%) | Charpy Impact Value (ISO-V J RT) |
| ≥ 500 | ≥ 720 | ≥ 25 | ≥ 50 |
Recommended Welding Parameters
| Diameter (mm) | Amperage Range (A) |
| 2.50 | 50-80 |
| 3.15 | 70-110 |
| 4.00 | 100-150 |
| 5.00 | 140-190 |
