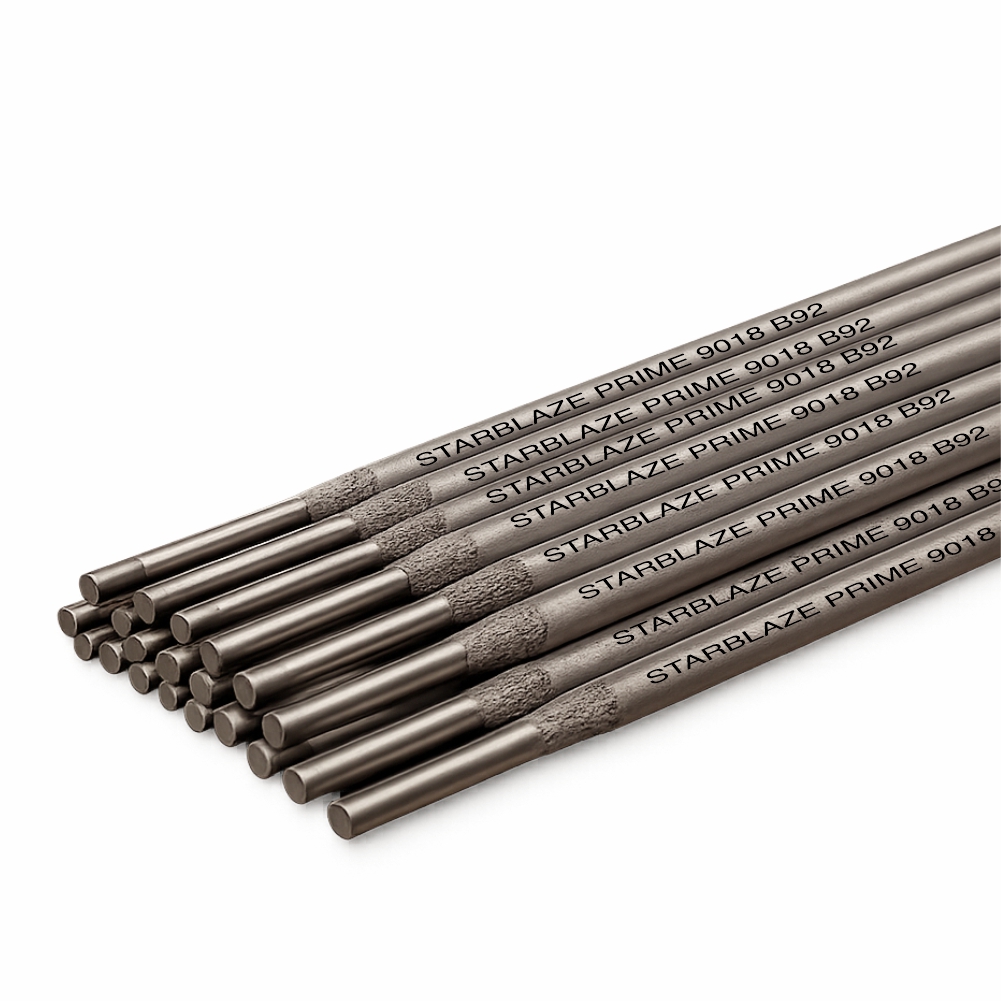

STARBLAZE PRIME 9018 B92
AWS A5.5: E9018-B92 | EN ISO 3580-A: E Z CrMoWVNb9 0.5 2 B 42 H5
Tungsten Fortified Electrode, Superior Creep Strength, High Temperature Service up to 620°C
A basic coated low hydrogen tungsten-fortified electrode specially designed for welding advanced creep resistant steels operating at elevated temperatures up to +620°C. StarBlaze PRIME 9018-B92 provides improved creep strength, toughness, fatigue life, oxidation resistance, and corrosion resistance under prolonged high-temperature service. The weld metal contains chromium, molybdenum, tungsten, vanadium, niobium, and nitrogen additions to deliver exceptional mechanical properties for critical power generation applications. It offers excellent weldability, self-peeling slag, finely rippled weld beads, and radiographic quality weld deposits.
Available Packs
Dimensions: 2.50 mm x 350 mm, 3.15 mm x 450 mm, 4.00 mm x 450 mm, 5.00 mm x 450 mm
Pack Sizes: 2.5 Kg Vacuum Pack, 4 Kg Box, 5 Kg Box
Master Box: 20 Kg, 30 Kg, 40 Kg, Customisable packaging available on request
Basic coated low hydrogen electrode
Tungsten fortified weld deposit
Superior creep strength
Excellent elevated temperature toughness
Improved fatigue resistance
Enhanced oxidation resistance
Improved corrosion resistance
Self-peeling slag
Finely rippled weld bead appearance
Radiographic quality weld deposits
Low diffusible hydrogen content (<4 ml/100g)
Suitable for DC+ polarity
Thermal Power Plants
Ultra Supercritical Power Projects
Petrochemical Industry
Refinery Projects
Pressure Vessel Manufacturing
Steam Pipeline Construction
Turbine Manufacturing
Heavy Engineering Industries
Manual Metal Arc Welding (MMA/SMAW)
P92 steel welding
High temperature steam piping fabrication
Boiler fabrication and repair
Pressure vessel welding
Turbine component welding
Power plant maintenance welding
Critical creep-resistant steel fabrication
Designed for advanced creep resistant steels
Suitable for ASTM Grade P92 steels
Suitable for ASTM Grade T92 steels
Suitable for ASTM Grade F92 steels
Suitable for Grade 92 creep resistant steels
Excellent choice for ultra-supercritical power generation systems
Provides improved creep strength and fatigue life compared to conventional Cr-Mo electrodes
Designed for long-term elevated temperature service
Keep dry and avoid condensation
Re-dry electrodes at 300–350°C for 1 hour
Diffusible hydrogen less than 4 ml per 100g weld metal
Product Details
Typical Chemical Composition (%)
| C | Si | Mn | Cr | Mo | Ni | W | S | P | V | Nb | N |
| 0.10 | 0.30 | 0.70 | 9.00 | 0.50 | 0.60 | 1.70 | ≤0.015 | ≤0.020 | 0.20 | 0.050 | 0.04 |
Typical Mechanical Properties (All Weld Metal)
| Heat Treatment | Yield Strength Rp (N/mm²) | Tensile Strength Rm (N/mm²) | Elongation A5 (%) | Impact Energy ISO-V (J) +20°C |
| PWHT 760°C × 2 Hours | ≥ 550 | ≥ 650 | ≥ 18 | ≥ 47 |
Diffusible Hydrogen
| Property | Value |
| Diffusible Hydrogen (per 100g weld metal) | < 4 ml |
Recommended Welding Parameters
| Diameter (mm) | Amperage Range (A) |
| 2.50 | 60-90 |
| 3.15 | 90-120 |
| 4.00 | 140-180 |
| 5.00 | 180-220 |
