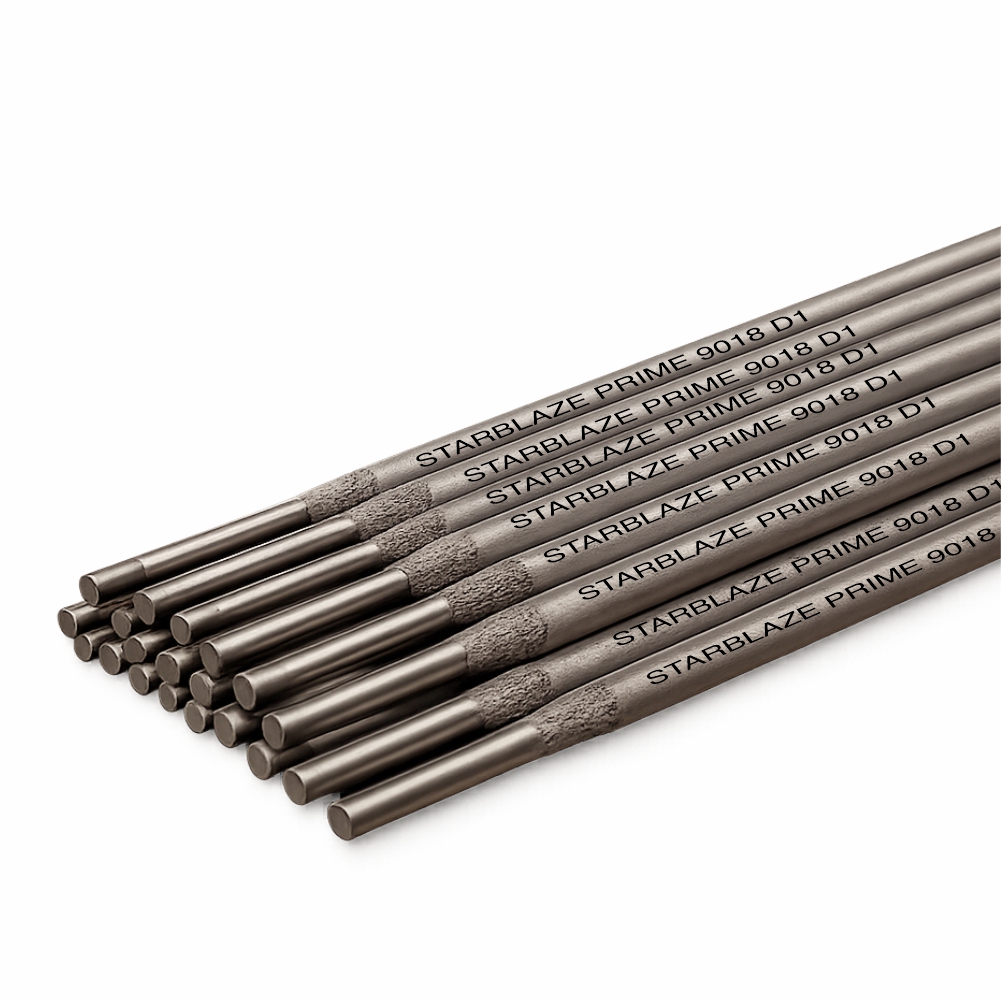

STARBLAZE PRIME 9018 D1
AWS A5.5: E9018-D1 | EN ISO 2560-A: E 50 3 Z B 32 H5 | IS 1395: E63BD126J | IRS M 28: Class C2
High Strength Steel Welding, Low Hydrogen Performance, Excellent Low Temperature Toughness
A basic coated iron powder low hydrogen electrode specially designed for welding fully killed fine grain high-strength steels. StarBlaze PRIME 9018 D1 produces smooth finely rippled weld beads with excellent resistance to cracking and superior low-temperature toughness down to -50°C. The electrode is ideally suited for critical fabrication applications involving high-strength steels, castings, penstocks, earthmoving equipment, and heavily restrained structures. It delivers radiographic quality weld deposits with low diffusible hydrogen levels and outstanding mechanical properties for demanding structural applications.
Available Packs
Dimensions: 2.50 mm x 350 mm, 3.15 mm x 450 mm, 4.00 mm x 450 mm, 5.00 mm x 450 mm
Pack Sizes: 2.5 Kg Vacuum Pack, 4 Kg Box, 5 Kg Box
Master Box: 20 Kg, 30 Kg, 40 Kg, Customisable packaging available on request
Basic coated iron powder electrode
Low hydrogen weld deposit
Less than 5 ml diffusible hydrogen
Smooth finely rippled weld beads
Excellent impact toughness at -50°C
High resistance to cracking
Superior cold toughness properties
Radiographic quality weld deposits
Recommended for critical structural welding
Suitable for heavily restrained joints
Suitable for AC and DC+ polarity
Hydropower Projects
Earthmoving Equipment Manufacturing
Heavy Structural Fabrication
Mining Equipment Industry
Pressure Equipment Manufacturing
Infrastructure Projects
Construction Equipment Manufacturing
Heavy Engineering Industries
Manual Metal Arc Welding (MMA/SMAW)
High-strength steel welding
Penstock fabrication
Heavy structural welding
Earthmoving equipment fabrication and repair
Critical fabrication applications
Maintenance and repair welding
Multi-pass welding applications
Designed for fully killed fine grain steels
Suitable for high tensile steels with UTS around 650 MPa
Suitable for IS 8500 Grade 540B, 570B and 590B steels
Suitable for IS 2002 Grade 3 steels
Suitable for IS 1875 Class 3A steels
Recommended for critical safety and security welding applications
Preheating and PWHT are recommended
Provides excellent toughness at temperatures down to -50°C
Keep dry and avoid condensation
Re-dry electrodes at 300–350°C for 1 hour if necessary
Maximum 3 re-drying cycles recommended
Product Details
Typical Chemical Composition (%)
| C | Si | Mn | Mo | Ni | P | S |
| 0.07 | 0.40 | 1.40 | 0.35 | 0.50 | 0.020 | 0.020 |
Typical Mechanical Properties (All Weld Metal)
| Heat Treatment | Yield Strength Rp (N/mm²) | Tensile Strength Rm (N/mm²) | Elongation A5 (%) | Charpy Impact Value ISO-V (J) -50°C |
| PWHT 620°C / 1 Hour | ≥ 550 | 650-750 | ≥ 20 | ≥ 47 |
Recommended Welding Parameters
| Diameter (mm) | Amperage Range (A) |
| 2.50 | 60-90 |
| 3.15 | 90-130 |
| 4.00 | 130-180 |
| 5.00 | 180-240 |
