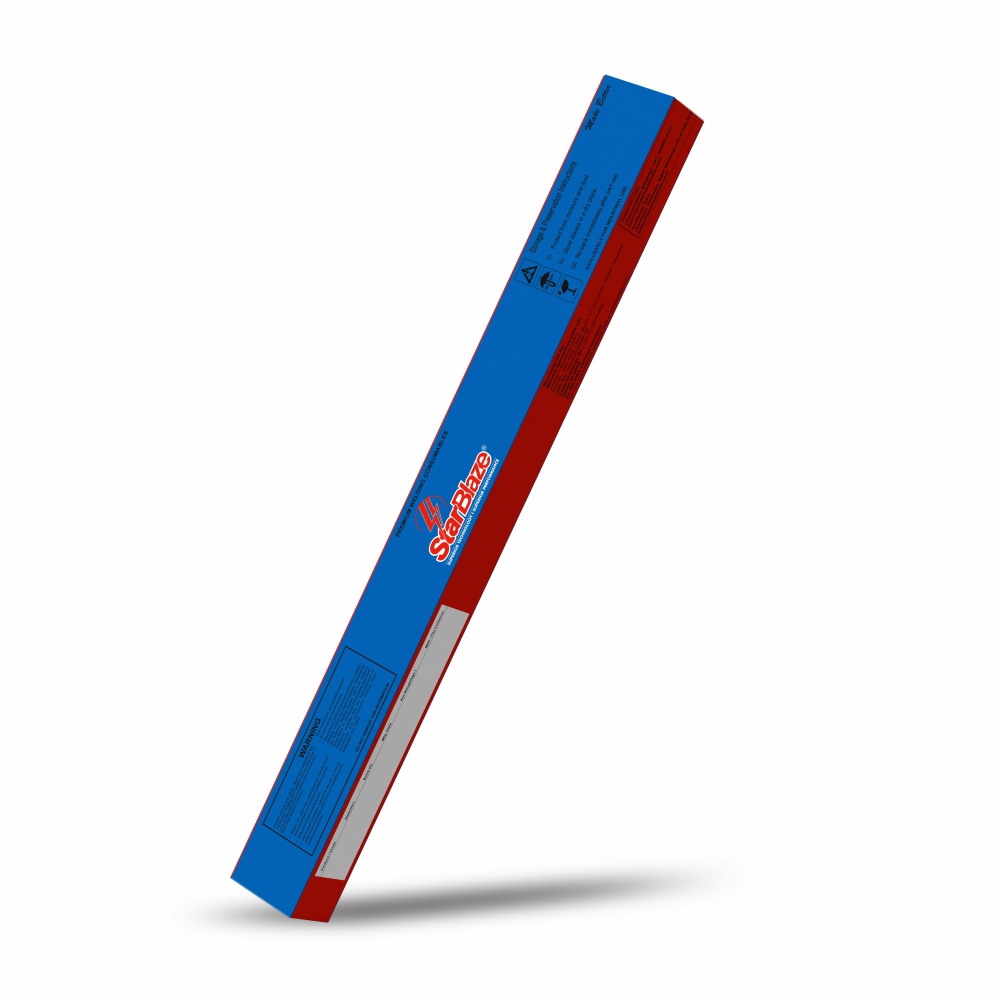

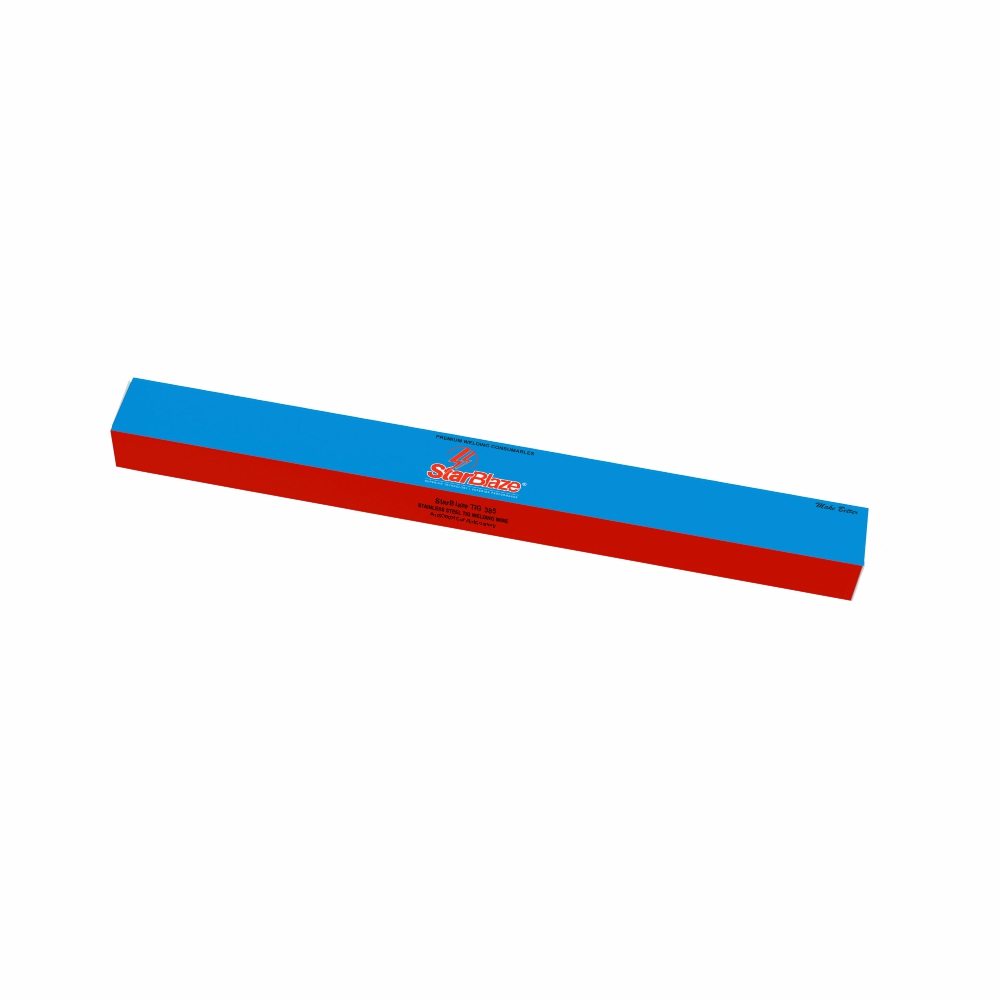

StarBlaze TIG 385
AWS A5.9: ER 385 | EN ISO 14343-A: W 20 25 5 Cu L
StarBlaze TIG 385 is a W 20 25 5 Cu L / ER385 type solid TIG welding rod depositing a 20Cr25Ni5Mo weld metal, suitable for use mainly with Ar shielding gas. StarBlaze TIG 385 is used for the welding of ASTM 316 or similar steels when a ferrite-free weld metal is required. It is primarily used in cryogenic and non-magnetic applications and delivers excellent impact toughness at low temperatures. It is also suitable for welding 904L to ASTM 304 and 316. StarBlaze TIG 385 offers very good resistance to general, pitting, crevice, and stress corrosion cracking.
Diameter: 0.80 mm, 0.90 mm, 1.00 mm, 1.20 mm, 1.60 mm, 2.00 mm, 2.40 mm, 3.20 mm, 4.00 mm
Pack Sizes: 5 kg/tube, 20 kg/box
- Ferrite-free weld deposit for non-magnetic, cryogenic applications
- Excellent impact toughness down to -196°C
- Superior resistance to pitting, crevice, and stress corrosion cracking
- Suitable for dissimilar welding (e.g., 904L to 304/316)
- Cryogenic storage and transfer systems
- Chemical and fertiliser plants
- Food and beverage industry
- Marine equipment and heat exchangers
- TIG welding of high-alloy stainless steels
- Non-magnetic and corrosion-resistant applications
- Fabrication of tanks, pipes, and pressure vessels
- Recommended shielding gas: Argon (I1 as per EN ISO 14175)
- Welding current: DC (–)
- Store in dry conditions; avoid condensation
- Excellent for applications requiring superior corrosion resistance
- Materials to be welded:
- AISI 904L
- 1.4539 (X1NiCrMoCu25-20-5)
- 1.4439 (X2CrNiMoN17-13-5)
- 1.4519
Product Details
Typical Chemical Composition (%)
| C | Mn | Si | Cr | Ni | Mo | Cu | S | P |
| 0.025 max | 1.50 – 2.20 | 0.50 max | 19.50 – 21.50 | 24.00 – 26.00 | 4.20 – 5.20 | 1.20 – 2.00 | 0.03 max | 0.02 max |
Typical All-Weld Mechanical Properties
| Yield Strength (N/mm²) | Tensile Strength (N/mm²) | Elongation A5 (%) | Impact Energy ISO-V(J) 20°C | Impact Energy ISO-V (J) –196°C |
| ≥ 410 | ≥ 560 | ≥ 35% | ≥ 47 | ≥ 32 |
