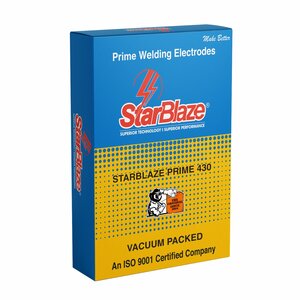

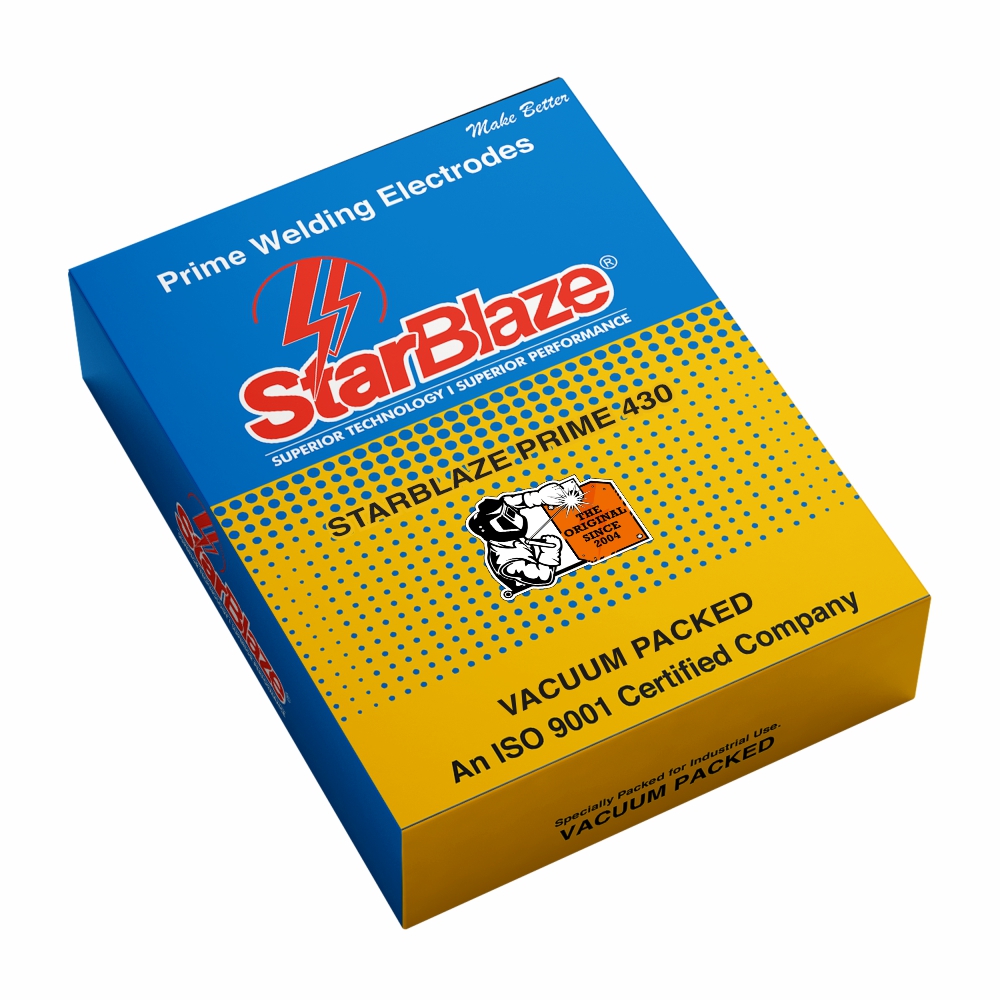

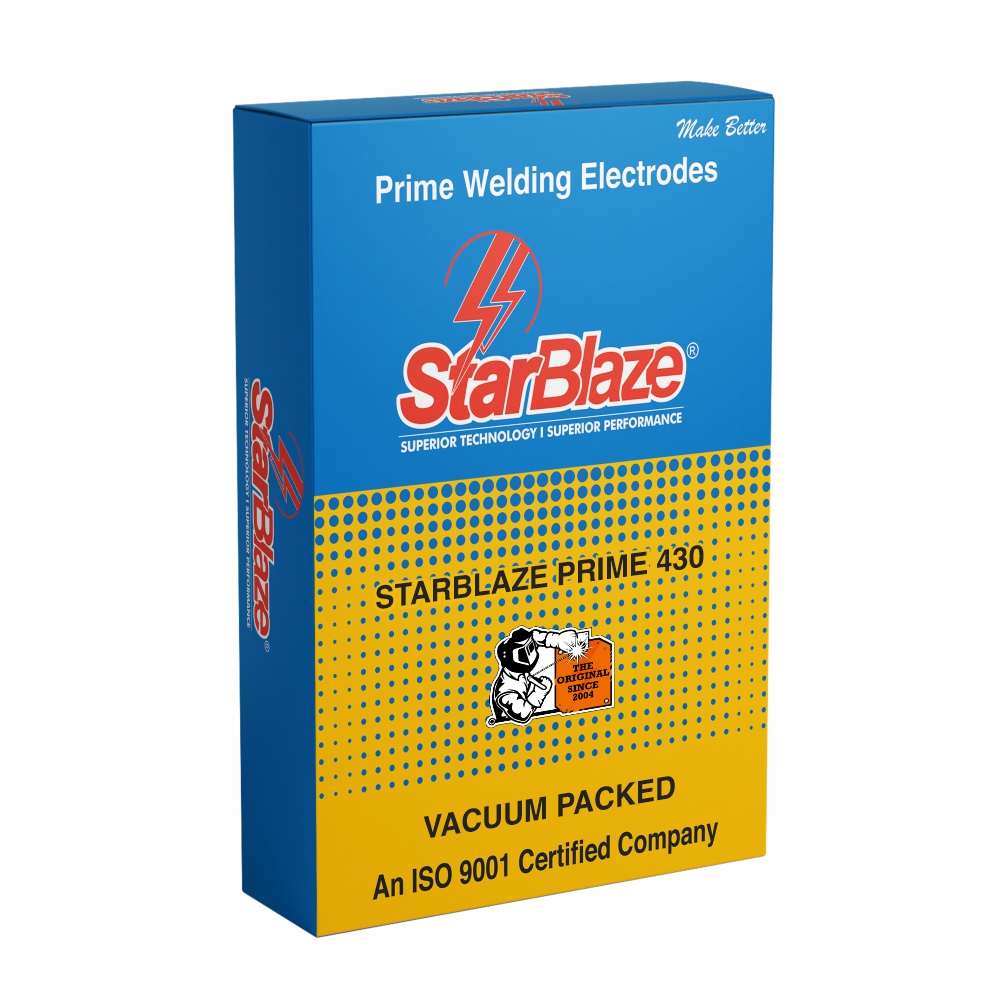

STARBLAZE PRIME 430
AWS A5.4: E430-16 | DIN EN ISO 3581-A: E 17 R 12 | Werkstoff Nr. 1.4015
Ferritic Stainless Steel Welding, Stable Arc, Excellent Weld Appearance
A rutile-basic type 17% chromium MMA electrode specially designed for welding 15–17% chromium ferritic stainless steels such as AISI 430 and similar steel castings. StarBlaze PRIME 430 delivers a stable and strong arc, low spatter levels, self-peeling slag, finely rippled weld beads, and excellent striking and restriking characteristics. It is ideal for fabrication and maintenance of ferritic stainless steel components where corrosion resistance, weld appearance, and ease of operation are important. Preheating and stress-relieving treatments are recommended to achieve optimum ductility and mechanical properties. Supplied in vacuum-packed packaging for enhanced storage stability and welding performance.
Available Packs
Dimensions: 2.50 mm x 350 mm, 3.15 mm x 350 mm, 4.00 mm x 350 mm
Pack Sizes: 2.5 Kg Vacuum Pack, 4 Kg Vacuum Pack, 5 Kg Vacuum Pack
Master Box: 20 Kg, 30 Kg, 40 Kg, Customisable packaging available on request
17% chromium ferritic stainless steel weld deposit
Stable and strong arc characteristics
Low spatter operation
Self-peeling slag
Finely rippled weld bead appearance
Easy striking and restriking
Good corrosion resistance
Suitable for ferritic stainless steels and cast steels
Excellent weld appearance
Reliable fabrication and maintenance performance
Suitable for AC and DC+ polarity
Food Processing Equipment Manufacturing
Kitchen Equipment Manufacturing
Architectural Fabrication
Process Equipment Manufacturing
Automotive Components Industry
Steel Processing Industry
Maintenance and Repair Workshops
General Fabrication Industry
Manual Metal Arc Welding (MMA/SMAW) of ferritic stainless steels
Fabrication of AISI 430 stainless steel components
Repair welding of stainless steel castings
Maintenance welding of corrosion-resistant equipment
General stainless steel fabrication applications
Designed for welding 15–17% chromium ferritic stainless steels
Suitable for Material No. 1.4057 (X17CrNi16-2)
Suitable for Material No. 1.4059 (GX22CrNi17)
Suitable for Material No. 1.4510 (X3CrTi17)
Suitable for AISI 430 and AISI 430Ti stainless steels
Preheating and stress-relieving treatments are recommended
Low heat input should be used to avoid hard and brittle martensitic weld junctions
Heat treatment condition: 790°C for 2 hours
Keep electrodes dry and avoid condensation
Re-dry electrodes at 300–350°C for 1 hour if necessary
Supplied in vacuum-packed packaging
Product Details
Typical Chemical Composition (%)
| C | Mn | Si | S | P | Cr | Ni |
| 0.04 | 0.60 | 0.70 | 0.012 | 0.020 | 17.00 | 0.40 |
Typical Mechanical Properties (All Weld Metal)
| Heat Treatment Condition | Yield Strength Rp (N/mm²) | Tensile Strength Rm (N/mm²) | Elongation A5 (%) |
| 790°C / 2 Hours | ≥ 350 | ≥ 500 | ≥ 20 |
Recommended Welding Parameters
| Diameter (mm) | Amperage Range (A) |
| 2.50 | 50-80 |
| 3.15 | 70-110 |
| 4.00 | 100-150 |
