StarBlaze Stainless Steel Electrodes
Designed for superior corrosion resistance across critical applications, StarBlaze stainless steel electrodes deliver exceptional arc stability, minimal spatter, and outstanding weld integrity. Vacuum-packed for extended shelf life and contamination-free storage, these electrodes ensure consistent quality and operator-friendly handling in demanding environments.
Recommended for food & beverage industry, chemical processing, pharmaceutical equipment, marine applications, and precision engineering work requiring corrosion resistance.
-
AWS A5.4: E307-16 | DIN EN ISO 3581-A: E 18 8 Mn Mo R 12 | DIN EN 1600: E 18 8 Mn Mo R 12 | Werkstoff Nr: 1.4370 Cushion Layer Welding, Easy Slag Removal, High Impact Strength Non-magnetic rutile-coated stainless electrode designed for joining and surfacing of manganese steels (up to 14% Mn), high-sulphur/phosphorus steels, and tool or spring steels. Ideal for wear-affected parts and cushioning before hardfacing. Offers excellent bead appearance, low spatter, and strong impact resistance. Available Packs-
- Dimensions: 2.50 mm x 350 mm, 3.15 mm x 450 mm ,4.00 mm x 450 mm
- Pack Sizes: 2.5 Kg Pouch, 5 Kg Box
- Master Box: 20 Kg, 30 Kg, 40 Kg, Customisable packaging available on request
-
-
AWS A5.4: E307-26 | DIN EN ISO 3581-A: E 18 9 Mn Mo R 53 | Werkstoff Nr: 1.4370 Low Spatter, High Strength, Buffer-Layer Capable Stainless Electrode Rutile heavy-coated 19/9 Mn stainless steel electrode for joining and overlaying manganese steels, carbon steels, and high-sulphur/high-phosphorus alloys. Offers stable arc, low spatter, and excellent slag removal. Suitable for buffer layers and joining dissimilar metals in demanding structural applications. Available Packs
-
- Dimensions: 2.50 mm x 350 mm, 3.15 mm x 450 mm ,4.00 mm x 450 mm
- Pack Sizes: 2.5 Kg Pouch, 5 Kg Box
- Master Box: 20 Kg, 30 Kg, 40 Kg, Customisable packaging available on request
-
-
AWS A5.4: E308-16 | DIN EN ISO 3581-A: E 19 9 R 12 | DIN EN 1600: E 19 9 R 12 | Werkstoff Nr: 1.4316 P Crack-Resistant, Low Spatter, High-Temperature Stability Rutile-coated stainless steel electrode with ~5% ferrite content for welding non-stabilised 18/8 austenitic steels. Offers excellent resistance to cracking, corrosion, and scaling up to 800°C. Produces spatter-free fusion, smooth bead appearance, and easy slag removal - ideal for boilers, piping systems, and reactors. Available Packs
-
- Dimensions: 2.50 mm x 350 mm, 3.15 mm x 450 mm ,4.00 mm x 450 mm
- Pack Sizes: 2.5 Kg Pouch, 5 Kg Box
- Master Box: 20 Kg, 30 Kg, 40 Kg, Customisable packaging available on request
-
-
AWS A5.4: E308H-16 | DIN EN ISO 3581-A: E 19 9 R 12 | DIN EN 1600: E 19 9 R 12 | Werkstoff Nr: 1.4948 Low Moisture Pickup, Soft Fusion, High Temperature Strength Rutile semi-basic stainless steel electrode with ~3–8% ferrite for welding 308H type stainless steels used in high-temperature service. Combines low moisture absorption with smooth bead appearance and spatter-free fusion. Enhanced carbon content improves strength and creep resistance
- Available Packs
- Dimensions: 2.50 mm x 350 mm, 3.15 mm x 450 mm, 4.00 mm x 450 mm
- Pack Sizes: 2.5 Kg Pouch, 5 Kg Box
- Master Box: 20 Kg, 30 Kg, 40 Kg, Customisable packaging available on request
- Available Packs
-
AWS A5.4: E308L-16 | DIN EN ISO 3581-A: E 19 9 LR 12 | DIN EN 1600: E 19 9 LR 12 | Werkstoff Nr: 1.4316 Extra Low Carbon, 800°C Scaling Resistance, Smooth Arc and Finish Extra low carbon rutile-basic stainless electrode with ~8% ferrite for corrosion and crack resistance in 18/8 stainless steels. Offers soft arc behaviour with minimal spatter, clean slag release, and excellent bead quality. Effective in operating temperatures from –120°C to +350°C with scaling resistance up to 800°C. Available Packs Dimensions: 2.50 mm x 350 mm, 3.15 mm x 450 mm, 4.00 mm x 450 mm Pack Sizes: 2.5 Kg Pouch, 5 Kg Box Master Box: 20 Kg, 30 Kg, 40 Kg, Customisable packaging available on request
-
AWS A5.4: E308L-15 | DIN EN ISO 3581-A: E 19 9 LB 22 | DIN EN 1600: E 19 9 LB 22 | Werkstoff Nr: 1.4316 Cryogenic-Grade Strength, IGC-Compliant, Low Hydrogen Weldability Basic-coated stainless electrode with low hydrogen content for welding 304L and other austenitic stainless grades, offering excellent mechanical performance down to –196°C. Meets IGC Practice E and ASME Section II Part C standards. Designed for precise positional welding with smooth slag detachment and low spatter.
- Available Packs
- Dimensions: 2.50 mm x 350 mm, 3.15 mm x 450 mm,4.00 mm x 450 mm
- Pack Sizes: 2.5 Kg Pouch, 5 Kg Box
- Master Box: 20 Kg, 30 Kg, 40 Kg, Customisable packaging available on request
- Available Packs
-
AWS A5.4: E308L-17 | DIN EN ISO 3581-A: E 19 9 LR 32 | DIN EN 1600: E 19 9 LR 32 | Werkstoff Nr: 1.4316 Low Carbon Core, Corrosion-Resistant, Smooth Bead Appearance Low carbon rutile-silica coated stainless electrode with 6–8% ferrite for welding 18/8-type austenitic steels. Delivers soft fusion with low moisture absorption and minimal spatter. Offers excellent slag detachability and smooth weld finish—ideal for service conditions from –120°C to +350°C in tanks, pipes, and heat exchangers.
- Available Packs
- Dimensions: 2.50 mm x 350 mm, 3.15 mm x 450 mm, 4.00 mm x 450 mm
- Pack Sizes: 2.5 Kg Pouch, 5 Kg Box
- Master Box: 20 Kg, 30 Kg, 40 Kg, Customisable packaging available on request
- Available Packs
-
AWS A5.4: E309-16 | DIN EN ISO 3581-A: E 23 12 R 12 | DIN EN 1600: E 23 12 R 12 | Werkstoff Nr: 1.4332 Buffer-Ready, Smooth Arc, Dissimilar and Cladding Specialist Rutile-basic 23Cr–12Ni electrode with approx. 15% ferrite for welding dissimilar stainless to low alloyed steels. Suitable for buffer layers before hardfacing and cladding on 18/8 type substrates. Produces smooth, spatter-free welds with easy slag removal and stable arc re-striking, even in multi-pass repair operations.
- Available Packs
- Dimensions: 2.50 mm x 350 mm, 3.15 mm x 450 mm, 4.00 mm x 450 mm
- Pack Sizes: 2.5 Kg Pouch, 5 Kg Box
- Master Box: 20 Kg, 30 Kg, 40 Kg, Customisable packaging available on request
- Available Packs
-
AWS A5.4: E309Nb-16 | DIN EN ISO 3581-A: E 23 12 Nb R 12 High Temp Resistant, Smooth Arc, Dissimilar Metal Compatible Rutile-basic coated stainless electrode with 23Cr–12Ni–0.7Nb alloy system, ideal for welding AISI 309Cb steels, claddings, and joining dissimilar metals. Niobium content improves intergranular corrosion resistance and mechanical performance at high temperature (up to +1000°C). Delivers finely rippled bead, spatter-free arc, and self-releasing slag.
- Available Packs
- Dimensions: 2.50 mm x 350 mm, 3.15 mm x 450 mm, 4.00 mm x 450 mm
- Pack Sizes: 2.5 Kg Pouch, 5 Kg Box
- Master Box: 20 Kg, 30 Kg, 40 Kg, Customisable packaging available on request
- Available Packs
-
AWS A5.4: E309-15 | DIN EN ISO 3581-A: E 23 12 B 22 | Werkstoff Nr: 1.4332 Buffer-Layer Ready, Smooth Fusion, Ideal for Carbon to Stainless Welding Basic-coated stainless steel electrode with ~15% ferrite, designed for welding dissimilar metals and overlaying high-temperature steels. Suitable for buffer layers before hardfacing and 18/8 cladding. Delivers smooth fusion, easy slag release, and strong impact resistance. Trusted for repair, civil engineering, and fabrication applications.
- Available Packs
- Dimensions: 2.50 mm x 350 mm, 3.15 mm x 450 mm, 4.00 mm x 450 mm
- Pack Sizes: 2.5 Kg Pouch, 5 Kg Box
- Master Box: 20 Kg, 30 Kg, 40 Kg, Customisable packaging available on request
- Available Packs
-
AWS A5.4: E309H-16 | DIN EN ISO 3581-A: E 23 12 R 12 | DIN EN 1600: E 23 12 R 12 | Werkstoff Nr: 1.4833 12% Ferrite, High Temp Durable, Excellent Cladding and Joint Finish Rutile-basic electrode with 12% ferrite stainless deposit, designed for welding dissimilar metals and elevated temperature service. Suitable for buffer layers, 18/8 cladding, and joining stainless to low alloyed steels. Offers spatter-free arc, smooth bead finish, and reliable restrike for critical repair and structural jobs.
- Available Packs
- Dimensions: 2.50 mm x 350 mm, 3.15 mm x 450 mm, 4.00 mm x 450 mm
- Pack Sizes: 2.5 Kg Pouch, 5 Kg Box
- Master Box: 20 Kg, 30 Kg, 40 Kg, Customisable packaging available on request
- Available Packs
-
AWS A5.4: E309L-16 | DIN EN ISO 3581-A: E 23 12 LR 12 | DIN EN 1600: E 23 12 LR 12 | Werkstoff Nr: 1.4332 LMA Coating, Spatter-Free, For Dissimilar Joints & Buffer Layers Low carbon rutile-basic electrode with ~15% ferrite, formulated for dissimilar metal welding and high-temperature service. Produces clean, soft-fused welds with low moisture absorption and minimal spatter. Ideal for buffer layer deposition, 18/8 type cladding, and stainless-to-low alloy steel joints. Available Packs Dimensions: 2.50 mm x 350 mm, 3.15 mm x 450 mm, 4.00 mm x 450 mm Pack Sizes: 2.5 Kg Pouch, 5 Kg Box Master Box: 20 Kg, 30 Kg, 40 Kg, Customisable packaging available on request
-
AWS A5.4: E309L-15 | DIN EN 1600: E 23 12 L B 12 | DIN 8556: E 23 12 LB 23 | Werkstoff Nr: 1.4332 Low Carbon, Buffer-Layer Ready, Excellent Arc with Ferrite Balance Low carbon, basic-coated stainless electrode with ~15% ferrite for welding dissimilar metals (carbon to stainless), high-temperature steels, and as a buffer layer before hardfacing. Offers smooth fusion, refined bead appearance, and reliable slag release for civil engineering, cladding, and structural repairs.
- Available Packs
- Dimensions: 2.50 mm x 350 mm, 3.15 mm x 450 mm, 4.00 mm x 450 mm
- Pack Sizes: 2.5 Kg Pouch, 5 Kg Box
- Master Box: 20 Kg, 30 Kg, 40 Kg, Customisable packaging available on request
- Available Packs
-
AWS A5.4: E309LMo-16 | DIN EN ISO 3581-A: E 23 12 2 LR 12 Rutile Coated | Mo-Alloyed | Cracking and Corrosion Resistant StarBlaze Prime 309LMo is a low carbon rutile-basic type stainless steel electrode alloyed with 23Cr, 13Ni, and 2.5Mo, containing 15–25% ferrite in the weld metal. It is designed for welding AISI 309 and 316L stainless steels, and for dissimilar joints between stainless and mild steels. Commonly used as a buffer layer before 316L cladding or as a universal electrode in maintenance jobs, it offers smooth arc behavior, self-peeling slag, and excellent resistance to cracking, oxidation, and corrosion. Available Packs
- Dimensions: 2.40 mm x 350 mm, 2.50 mm x 350 mm, 3.15 mm x 450 mm, 3.20 mm x 450 mm, 4.00 mm x 450 mm, 5.00 mm x 450 mm
- Pack Sizes: 2.5 Kg Pouch, 5 Kg Box
- Master Box: 20 Kg, 30 Kg, 40 Kg, Customisable packaging available on request
-
AWS A5.4: E309LMo-15 | DIN EN ISO 3581-A: E 23 12 2 L B 22 Basic Coated | Mo-Alloyed | High Corrosion and Heat Resistance StarBlaze Prime 309LMo-15 is a low carbon, basic coated stainless steel electrode with 23Cr-13Ni-2.5Mo alloying, specially designed for welding dissimilar joints between stainless and mild steels. It serves as an ideal intermediate layer for 316L cladding and ensures excellent corrosion and oxidation resistance up to 1000°C. The weld bead is smooth, slag is self-releasing, and arc control is optimized for both initial and re-strike conditions. Available Packs
- Dimensions: 2.50 mm x 350 mm, 3.15 mm x 450 mm, 4.00 mm x 450 mm, 5.00 mm x 450 mm
- Pack Sizes: 2.5 Kg Pouch, 5 Kg Box
- Master Box: 20 Kg, 30 Kg, 40 Kg, Customisable packaging available on request
-
AWS A5.4: E309Mo-16 | DIN EN ISO 3581-A: E 23 12 2 R 12 Rutile Coated | Mo-Alloyed | High Crack and Corrosion Resistance StarBlaze Prime 309Mo is a rutile-coated stainless steel electrode alloyed with 23Cr, 12.5Ni, and 2.5Mo, designed for welding AISI 309 and 316 stainless steels as well as dissimilar joints involving mild steel. It serves effectively as a buffer layer prior to 316 cladding and performs well in applications demanding both corrosion and crack resistance. The arc is smooth and spatter-free, producing a clean bead with easy slag removal and minimal post-weld cleanup. Available Packs
- Dimensions: 2.50 mm x 350 mm, 3.15 mm x 450 mm, 4.00 mm x 450 mm, 5.00 mm x 450 mm
- Pack Sizes: 2.5 Kg Pouch, 5 Kg Box
- Master Box: 20 Kg, 30 Kg, 40 Kg, Customisable packaging available on request
-
AWS A5.4: E310-16 | DIN EN ISO 3581-A: E 25 20 R 12 Rutile Coated | Austenitic Stainless | High Temperature and Corrosion Resistance StarBlaze Prime 310 is a rutile-basic coated austenitic stainless steel electrode formulated for welding high-temperature resistant alloys, cast steels of 25Cr–20Ni grade, and dissimilar stainless joints. The weld metal is stable under thermal cycling, offers excellent corrosion and oxidation resistance up to 1200°C, and is ideal for furnace components, steam boilers, turbine housings, and similar applications. It delivers smooth arc performance with easy slag removal and clean bead appearance. Available Packs
- Dimensions: 2.40 mm x 350 mm, 2.50 mm x 350 mm, 3.15 mm x 450 mm, 3.20 mm x 450 mm, 4.00 mm x 450 mm, 5.00 mm x 450 mm
- Pack Sizes: 2.5 Kg Pouch, 5 Kg Box
- Master Box: 20 Kg, 30 Kg, 40 Kg, Customisable packaging available on request
-
AWS A5.4: E316-16 | DIN EN ISO 3581-A: E 19 12 3 R 12 | DIN EN 1660: E 19 12 3 R 12 | Werkstoff Nr: 1.4430 Rutile Coated | Mo-Alloyed Austenitic | Corrosion and Heat Resistant StarBlaze Prime 316 is a rutile-basic coated stainless steel electrode alloyed with Mo for enhanced corrosion resistance and mechanical strength. With approximately 5–8% ferrite in the deposit and coating designed for low moisture pickup (LMA Type), it offers clean slag removal, smooth arc characteristics, and excellent weld appearance. Suitable for welding and cladding of 316/316Ti stainless steels in tanks, pipelines, and pressure systems operating between -120°C and +400°C. Available Packs
- Dimensions: 2.40 mm x 350 mm, 2.50 mm x 350 mm, 3.15 mm x 450 mm, 3.20 mm x 450 mm, 4.00 mm x 450 mm, 5.00 mm x 450 mm
- Pack Sizes: 2.5 Kg Pouch, 5 Kg Box
- Master Box: 20 Kg, 30 Kg, 40 Kg, Customisable packaging available on request
-
AWS A5.4: E316H-16 | DIN EN ISO 3581-A: E 19 12 2 R 12 | Werkstoff Nr: 1.4919 Rutile Coated | Mo-Alloyed Austenitic | High Temperature and Creep Resistance StarBlaze Prime 316H is a rutile-basic coated stainless steel electrode formulated for welding AISI 316H and similar grades requiring elevated tensile and creep strength. With approximately 2–6% ferrite in the deposit and low moisture pick-up coating, it ensures stable arc performance, smooth bead appearance, and minimal slag removal effort. Designed for reliable service in high-temperature environments such as power, refinery, and process piping systems.
- Available Packs
- Dimensions: 5.00 mm x 350 mm, 2.50 mm x 350 mm, 3.15 mm x 450 mm, 3.20 mm x 450 mm, 4.00 mm x 450 mm,
- Pack Sizes: 2.5 Kg Pouch, 5 Kg Box
- Master Box: 20 Kg, 30 Kg, 40 Kg, Customisable packaging available on request
- Available Packs
-
AWS A5.4: E316L-16 | DIN EN ISO 3581-A: E 19 12 3 LR 12 | DIN EN 1600: E 19 12 3 LR 12 | Werkstoff Nr: 1.4430 Rutile Coated | Mo-Alloyed Austenitic | Low Carbon for Corrosive and Cryogenic Applications StarBlaze Prime 316L is a low carbon rutile semi-basic Mo-alloyed stainless steel electrode designed for welding austenitic stainless steels such as AISI 316 and 316L. The weld metal offers excellent corrosion resistance, particularly in chloride-containing environments, and ensures stable arc performance with minimal spatter. Suitable for service conditions from -120°C to +400°C, this electrode is ideal for tanks, pipes, and cladding jobs in the chemical, petrochemical, and food industries. Available Packs
- Dimensions: 2.40 mm x 350 mm, 2.50 mm x 350 mm, 3.15 mm x 450 mm, 3.20 mm x 450 mm, 4.00 mm x 450 mm, 5.00 mm x 450 mm
- Pack Sizes: 2.5 Kg Pouch, 5 Kg Box
- Master Box: 20 Kg, 30 Kg, 40 Kg, Customisable packaging available on request
-
AWS A5.4: E316L-15 | DIN EN ISO 3581-A: E 19 12 3 LB 22 | DIN EN 1600: E 19 12 3 LB 22 | Werkstoff Nr: 1.4430 Basic Coated | Mo-Alloyed Austenitic | Low Carbon for Cryogenic and Corrosive Applications StarBlaze Prime 316L-15 is a low carbon, basic-coated stainless steel electrode alloyed with Mo and designed for welding and cladding of Cr-Ni-Mo austenitic stainless steels and plates. It produces high-quality, low-hydrogen welds with smooth bead appearance, soft arc, and excellent slag detachability. The low carbon content (<0.03%) minimizes the risk of intergranular corrosion, making it suitable for both cryogenic and elevated temperature service from -196°C to +400°C. Available Packs
- Dimensions:2.50 mm x 350 mm, 3.15 mm x 450 mm, 4.00 mm x 450 mm
- Pack Sizes: 2.5 Kg Pouch, 5 Kg Box
- Master Box: 20 Kg, 30 Kg, 40 Kg, Customisable packaging available on request
-
AWS A5.4: E347-16 | DIN EN ISO 3581-A: E 19 9 Nb R 12 | DIN EN 1600: E 19 9 Nb R 12 | Werkstoff Nr: 1.4550 Rutile Coated | Nb-Stabilized Austenitic | General Purpose for Cr-Ni Stainless Welding StarBlaze Prime 347 is a rutile-basic coated stainless steel electrode with Nb-stabilized austenitic weld metal and approx. 5–8% ferrite. Designed for joining stabilized and unstabilized Cr-Ni stainless steels such as 304, 304L, 321, and 347, it ensures excellent resistance to intergranular corrosion while delivering smooth arc performance, low spatter, and self-peeling slag. Suitable for both flat and positional welding, particularly in chemical, food, and general stainless fabrication.
- Available Packs
- Dimensions: 2.50 mm x 350 mm, 3.15 mm x 450 mm, 3.20 mm x 450 mm, 4.00 mm x 450 mm, 5.00 mm x 450 mm
- Pack Sizes: 2.5 Kg Pouch, 5 Kg Box
- Master Box: 20 Kg, 30 Kg, 40 Kg, Customisable packaging available on request Vacuum sealed (LMA type) for moisture resistance
- Available Packs
-
AWS A5.4: E347-15 | EN ISO 3581-A: E 19 9 Nb B 22 | DIN EN 1600: E 19 9 Nb B 22 | Werkstoff Nr: 1.4551 Basic Coated | Nb-Stabilized Austenitic | For Cryogenic and High-Temperature Stainless Applications StarBlaze Prime 347-15 is a basic-coated, niobium-stabilized stainless steel electrode designed for welding austenitic stainless steels where resistance to intergranular corrosion and thermal fatigue is critical. With approx. 4–8% ferrite and 0.45% Nb in the weld deposit, it is ideal for applications involving cryogenic temperatures or long-term exposure up to 800°C. Delivers a clean bead with soft arc, low spatter, and easy slag removal.
- Available Packs
- Dimensions: 2.50 mm x 350 mm, 3.15 mm x 450 mm, 4.00 mm x 450 mm, 5.00 mm x 450 mm
- Pack Sizes: 2.5 Kg Pouch, 5 Kg Box
- Master Box: 20 Kg, 30 Kg, 40 Kg, Customisable packaging available on request , Vacuum-packed to reduce moisture pickup
- Available Packs
-

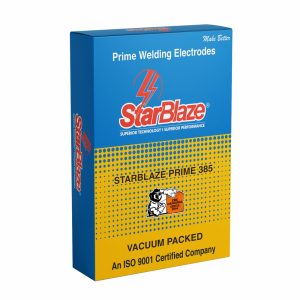

AWS A5.4: E385-16 | DIN EN ISO 3581-A: E 20 25 5 Cu N L R 12 Rutile Basic | Austenitic | Cu–Mo Alloyed | Acid-Resistant & Stress Corrosion Resistant StarBlaze Prime 385 is a rutile-basic coated electrode designed for welding fully austenitic, highly corrosion-resistant stainless steels such as 904L and B6. It offers excellent weldability in all positions with a stable arc and smooth slag detachment. The weld metal is resistant to chloride-induced stress corrosion and attacks from phosphoric and sulphuric acids due to its high Mo, Cu, and Ni content. Weld bead appearance is finely rippled and low spatter.
- Available Packs
- Dimensions: 2.50 mm x 350 mm, 3.15 mm x 450 mm, 4.00 mm x 450 mm, 5.00 mm x 450 mm
- Pack Sizes: 2.5 Kg Pouch, 5 Kg Box
- Master Box: 20 Kg, 30 Kg, 40 Kg, Customisable packaging available on request
- Available Packs
-

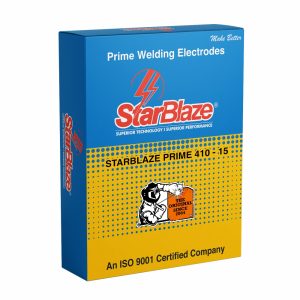

AWS A5.4: E410-15 | DIN EN ISO 3581-A: E 13 B 22 Low Hydrogen | Ferritic-Martensitic | PWHT Required StarBlaze Prime 410 is a heavy-coated low hydrogen MMA electrode designed for welding 11–13.5% Cr ferritic martensitic stainless steels (AISI 410). The deposited weld metal is air hardening and requires post-weld heat treatment to achieve suitable ductility and mechanical workability. Delivers stable arc performance and reliable weld bead finish with minimal spatter. Available Packs:
- 2.50 mm – 60–90 A
- 3.15 mm – 90–140 A
- 3.20 mm – 90–140 A
- 3.25 mm – 90–140 A
- 4.00 mm – 140–180 A
- 5.00 mm – 190–240 A Supplied in moisture-resistant vacuum packaging
-
AWS A5.4: E410NiMo-15 | DIN EN ISO 3581-A: E 13 4 B 22 | Werkstoff Nr: 1.4351 Basic Coated | Martensitic | Corrosion & Pitting Resistant StarBlaze Prime 410 NIMO is a basic coated electrode engineered for welding stainless martensitic chromium-nickel-molybdenum steels or cast equivalents such as AISI 410 NiMo. The deposit offers excellent resistance to abrasion, corrosion, and pitting. Being an air-hardening type, preheating and PWHT are necessary to achieve adequate ductility for machining and service life. Packed in vacuum sealed packaging for moisture protection. excellent resistance to cracking, oxidation, and corrosion. Available Packs
- Dimensions: 2.50 mm x 350 mm, 3.15 mm x 450 mm, 3.20 mm x 450 mm, 4.00 mm x 450 mm, 5.00 mm x 450 mm
- Pack Sizes: 2.5 Kg Pouch, 5 Kg Box
- Master Box: 20 Kg, 30 Kg, 40 Kg, Customisable packaging available on request
-
AWS A5.4: E 410NiMo-16 | DIN EN ISO 3581-A: E 13 4 R 12 | Werkstoff Nr: 1.4351 Rutile Coated | Martensitic | Abrasion & Pitting Resistant StarBlaze Prime 410NiMo-16 is a rutile basic coated MMA electrode formulated for welding martensitic stainless steels and cast steels containing Cr-Ni-Mo. It delivers a weld deposit with excellent corrosion, erosion, and pitting resistance, particularly in aggressive environments. Suitable for components subjected to high wear and thermal cycles, where ductility is restored through post-weld heat treatment. Available Packs:
- 2.40 mm – 40–70 A
- 2.50 mm – 50–80 A
- 3.15 mm / 3.20 mm – 80–110 A
- 4.00 mm – 110–160 A
-
AWS A5.4: E410-15 | DIN EN ISO 3581-A: E 13 B 22 Basic Coated | Martensitic | Air Hardening Chrome Steel StarBlaze Prime 410-15 is a heavy-coated, low hydrogen MMA electrode formulated for welding 11–13.5% Cr ferritic-martensitic stainless steels such as AISI 410. The deposit is air-hardening, necessitating post-weld heat treatment and stress-relieving to ensure sufficient ductility and reduce hardness for further mechanical processing. Designed for high-temperature and corrosion-resistant service in thermal and pressure equipment.
- Available Packs
- Dimensions: 2.50 mm x 350 mm, 3.15 mm x 450 mm,4.00 mm x 450 mm, 5.00 mm x 450 mm
- Pack Sizes: 2.5 Kg Pouch, 5 Kg Box
- Master Box: 20 Kg, 30 Kg, 40 Kg, Customisable packaging available on request
- Available Packs
-
AWS A5.4: E410-16 Rutile Coated | Ferritic-Martensitic | Air Hardening StarBlaze Prime 410-16 is a heavy coated rutile-type MMA electrode designed for welding ferritic-martensitic stainless steels containing 11–13.5% Cr (AISI 410). This electrode offers a smooth arc and clean weld appearance, with mechanical properties suitable for structural applications requiring post-weld heat treatment. Preheating and stress relief are essential to prevent cracking and ensure weld ductility.
- Available Packs
- Dimensions: 2.50 mm x 350 mm, 3.15 mm x 450 mm,4.00 mm x 450 mm, 5.00 mm x 450 mm
- Pack Sizes: 2.5 Kg Pouch, 5 Kg Box
- Master Box: 20 Kg, 30 Kg, 40 Kg, Customisable packaging available on request
- Available Packs
-
AWS A5.4: E410-17 Rutile Coated | Ferritic-Martensitic | Air Hardening StarBlaze Prime 410-17 is a semi-basic rutile MMA electrode suited for welding 11–13.5% Cr ferritic martensitic stainless steels (AISI 410). It provides a stable arc and clean bead finish for applications requiring post-weld heat treatment (PWHT) to achieve ductility. Suitable for both fabrication and repair, particularly where mechanical working follows welding. Available Packs:
- 2.50 mm – 60–90 A
- 3.15 mm – 90–140 A
- 4.00 mm – 140–180 A
- 5.00 mm – 190–240 A Supplied in vacuum-sealed moisture-controlled packaging
-
AWS A5.1: E 6013 | DIN EN ISO 2560-A: E 38 0 RC 11 | IS 814: ER 4211X Low Spatter, Smooth Arc, Radiographic Quality Welds Rutile-type mild steel electrode for general-purpose welding across a wide range of structural and pressure applications. Produces fine-rippled welds with low spatter, easy slag removal, and consistent arc performance. Ideal for fabrication, shipbuilding, tanks, and pipelines. Available Packs
-
- Dimensions: 2.50 mm x 350 mm, 3.15 mm x 450 mm ,4.00 mm x 450 mm
- Pack Sizes: 2.5 Kg Pouch, 5 Kg Box
- Master Box: 20 Kg, 30 Kg, 40 Kg, Customisable packaging available on request
-
-

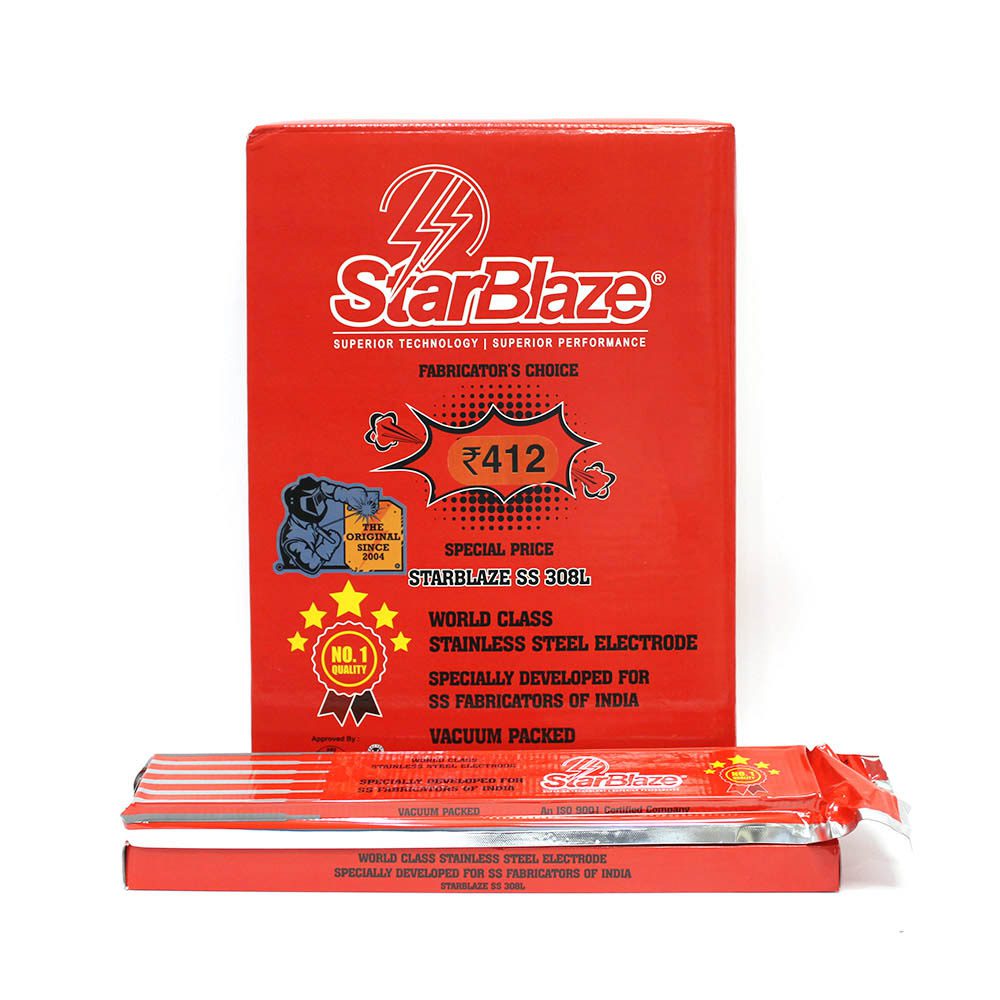

AWS A5.4: E308L-16 | DIN 8556: E19 9 LR 23 | DIN EN 1600: E19 9 L R 32
Low Carbon. Crack-Resistant. Versatile.
A rutile-basic coated stainless steel electrode, E308L-16 is designed for welding austenitic 18/8 Cr-Ni stainless steels. With a low carbon core wire (308LER) and optimized ferrite (~8%), it offers maximum crack resistance, smooth arc characteristics, and superior corrosion resistance. The electrode produces soft fusion with minimal spatter, excellent slag detachability, and aesthetically clean weld beads. Suitable for use at service temperatures from -120°C to +350°C.
